Instructions For Installing GA2100A Fan Accessory

Carton Contents

• One Fan Accessory
• One Fan Housing
• Four #8 Screws
• Two #10 Screws
NOTICE
If wall mounted, heater must be disconnected from
gas supply and removed from wall before installing
fan accessory. Contact a qualified service person to
do this. All local codes must be followed.
!
WARNING
WARNING ICON G 001
Fan accessory must be grounded. Fan comes with a
three-prong, grounding plug as shown in Figure 1. The
plug is your protection against electrical shock. Plug it
into a standard, three-hole, grounded, outlet. If cord
needs replacing, use only a cord with a three-prong,
grounding plug.
Grounded Outlet

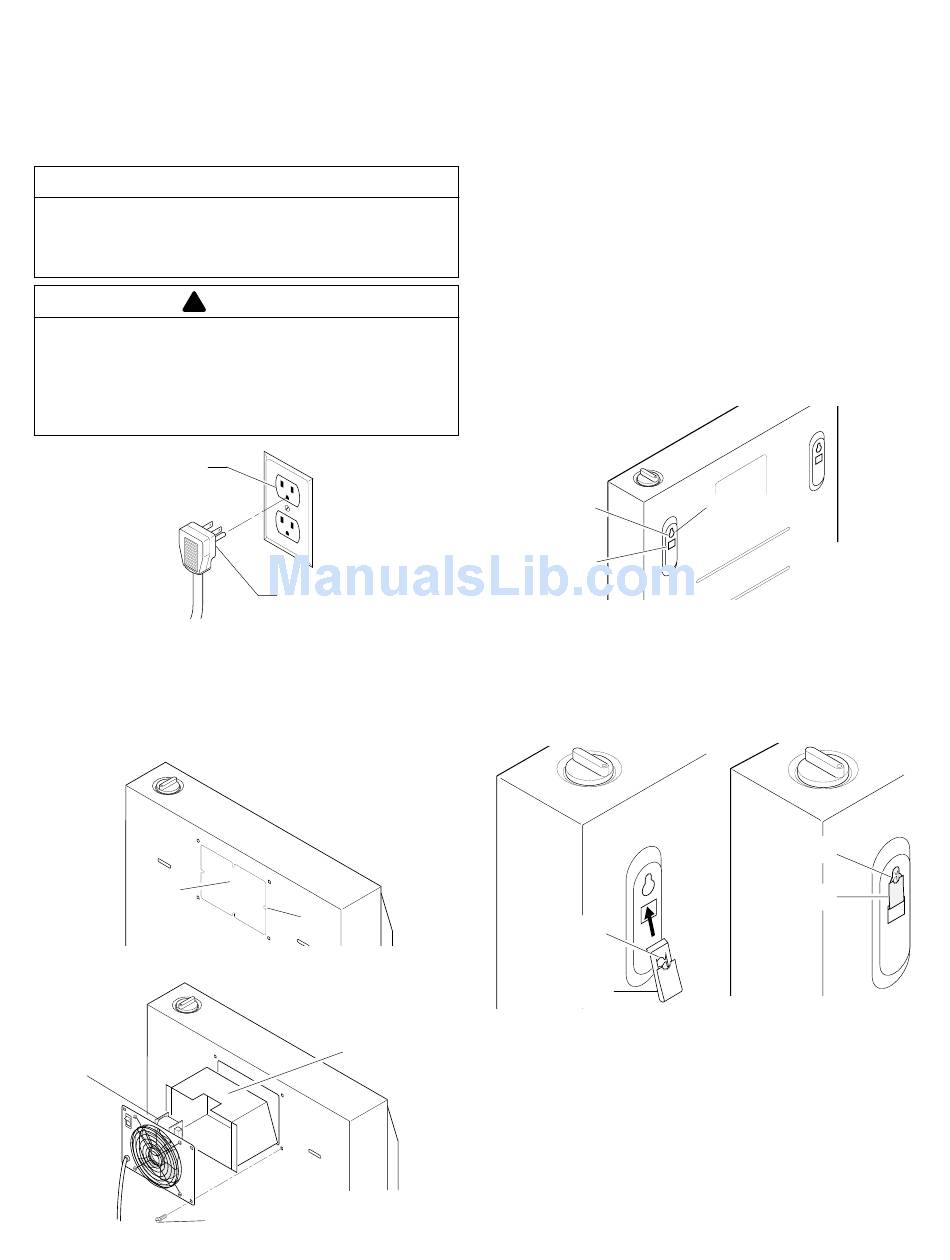

Figure 1 - Grounding Plug

Attaching Fan Accessory

1. Knock out center panel at four tabs with screwdriver (see Figure
2).
2. Position fan housing between fan accessory and heater back panel.
Attach fan accessory and fan housing to heater back panel using
four #8 screws (see Figure 3).
Center
Panel
Figure 2 - Center Panel
Fan
Accessory
#8 Screw
Figure 3 - Attaching Fan Accessory and Fan Housing
• One #10 Screw (long)
• Two "U" Nuts
• Three Brackets
Grounding
Plug
Tab
Fan Housing
Wall Mounting Instructions For Models With Mounting
Bracket
1. Mount heater to wall by following steps under INSTALLING TO
WALL in owner's manual.
2. Plug power cord of fan into grounded outlet.
3. Discard "U" nuts, brackets, and extra screws provided with fan
accessory.
Wall Mounting Instructions For Models With Raised
Mounting Holes
After attaching fan accessory, heater must be mounted to wall in
different manner than what is specified in owner's manual. Follow
steps below to mount heater to wall.
1. Locate the two raised mounting areas at top of heater back
panel. Each area has a square hole in center and a key hole at
top (see Figure 4).
Key Hole
Square Hole
Figure 4 - Raised Mounting Areas
2. Insert "U" nut into square hole on each mounting area. Attach
"U" nut as illustrated in Figure 5. Push "U" nut into place.
Screw hole on "U" nut should be visible through key hole in
mounting area.
Screw Hole
"U" Nut
Figure 5 - Attaching "U" Nut
Raised
Mounting Area
Screw Hole
"U" Nut
Continued on Back
