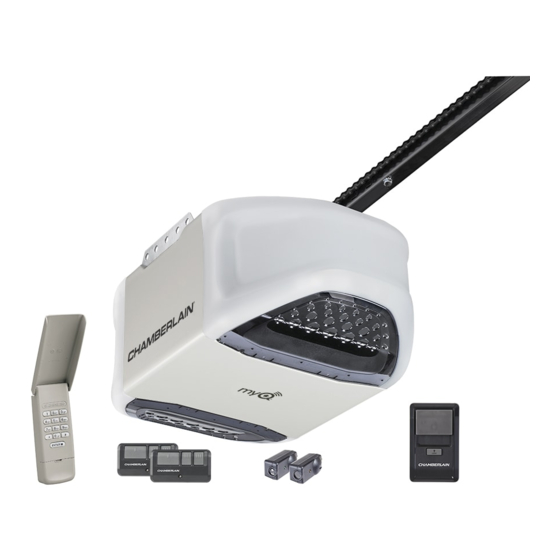

Chamberlain HD420EV Manual

1/2 hp Chain Drive
Garage Door Opener
Models
• PD612EV
• HD420EV
FOR RESIDENTIAL USE ONLY
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System
properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■ The model number label is located on the left side panel of your garage
door opener.
■ This garage door opener is compatible with MyQ
■ DO NOT install on a one-piece door if using devices or features providing unattended
close. Unattended devices and features are to be used ONLY with sectional doors.
. .
® is connected and
® and Security+ 2.0 ® accessories.
Write down the following information
for future reference:
Model Number:
Serial Number:
Date of Purchase:
CONTENTS
Preparation .............................. 1-4
Assembly ................................. 5-9
Installation ............................ 10-19
Install the Door Control ............. 20-21
Install the Protector System ® ...... 22-25
Power .................................. 26-27
Adjustments .......................... 28-30
Operation.................................. 31
Features ................................... 32
Door Control .......................... 33-34
Remote Control ...................... 34-35
To Erase the Memory .................... 35
To Open the Door Manually ............ 36
Maintenance .............................. 37
Troubleshooting ...................... 38-39
Accessories ............................... 40
Warranty .................................. 41
Repair Parts .......................... 42-43
www.chamberlain.com
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
