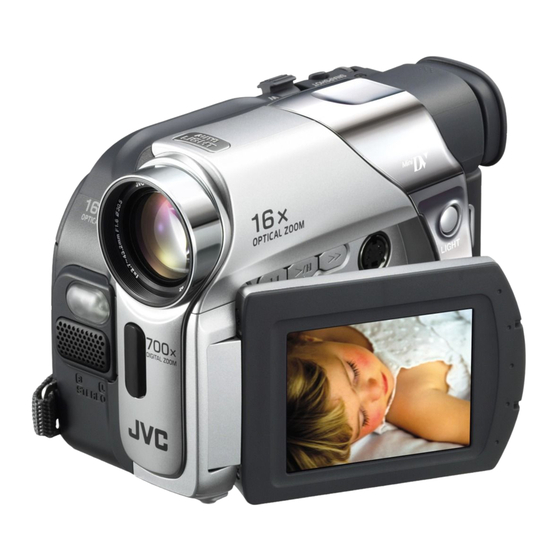

JVC GR-D33EK Service Manual

SERVICE MANUAL
2004 1 YF008
GR-D23EK, GR-D23EX, GR-D23EY, GR-D23EZ,
GR-D33EK, GR-D53EK, GR-D53EX,
GR-D53EY, GR-D53EZ, GR-D73EK,
GR-D73EX, GR-D73EY, GR-D73EZ
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
NOTE :
There are two types of VF(COLOR) ASSEMBLY used for this model: S type and K type.
Prior to repair operation related to VIEW FINDER, be sure to see the VF(COLOR)
ASSEMBLY and Parts List.
Methods to distinguish the two types are as follows:
1. Distinction based on EEPROM DATA (EEPROM utility). ( * 1)
2. Distinction based on a part number of the MONI-C BOARD ASSEMBLY.
3. Distinction based on a sticker attached to the VF(COLOR) ASSEMBLY.
EEPROM DATA ( * 1)
MONI-C PWB
VF(COLOR) ASSY
( * 1) It is necessary to confirm the original data (before repair work) of EEPROM.
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
5 TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED
DIGITAL VIDEO CAMERA
S TYPE
ADRS 3CCH:01H
YB10447 SERIES
NO STICKER
TABLE OF CONTENTS
GR-D23EK,GR-D23EX,GR-D23EY,GR-D23EZ[M4D1S2],GR-D33EK[M4D1S3]
GR-D53EK,GR-D53EX,GR-D53EY,GR-D53EZ[M4D1S5]
GR-D73EK,GR-D73EX,GR-D73EY,GR-D73EZ[M4D1S7]
K TYPE
ADRS 3CCH:05H
YB10453 SERIES
STICKER ON TOP FACE
VF(COLOR) ASSEMBLY
STICKER
No.YF008
2004/1
