ROSE DISPLAYS ANOFRAME ROUND WITH CABLE AND SAUCER Manual

AnoFrame

Parts

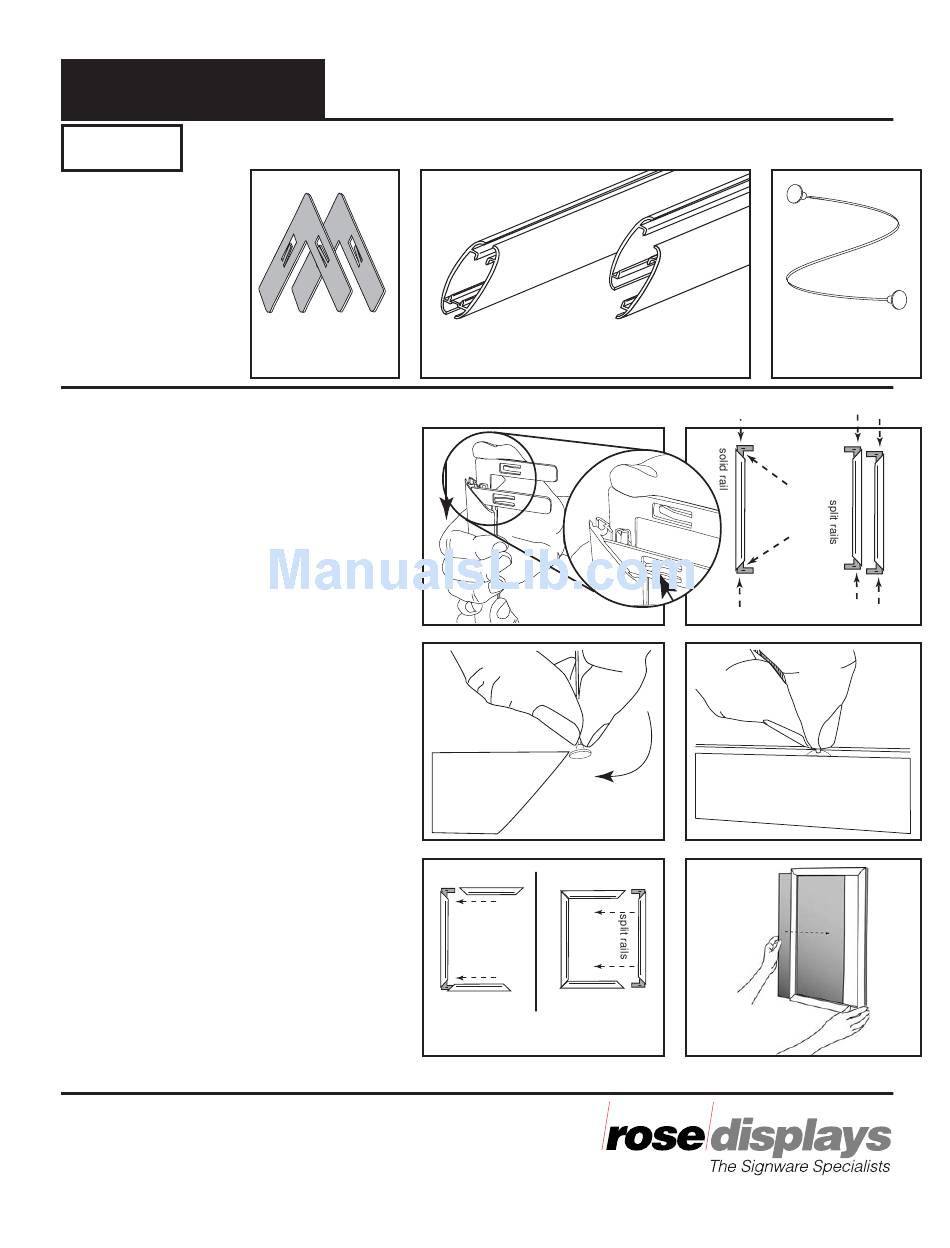

Instructions For assembly

Step 1

Locate the two split rails and the solid
rail that is the same length as the split
rails.
Insert corner brackets into side
AnoFrame rails. Insert two corner
brackets into each end of the solid side
Ano rail. Insert one corner bracket
into each end of each split side Ano
rail. Fig. 1 & Fig. 2
Note: Tension tabs on corner
brackets face towards outside of
frame.

Step 2

Insert saucer into end of top Ano rail.
Fig. 3.
Note: It is easier to slide the saucer in
the Ano rail if you hold the cable as
close to the saucer as possible. Fig 4.

Step 3

Assemble frame following steps in
Fig. 5 sliding sides together in the
order shown.

Step 4

Insert poster. Fig 6.
The AnoFrame is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss
or damage resulting from the use of these products.
Part #02INSAnoFRCableandSaucer
Incept-8.23.02
TM
Round Profile Instruction Sheet
Corner
Brackets
AnoFrame Rails AnoFrame
12AF-100 Split Rails
Figure 1
Figure 3
solid rail
solid rail
Figure 5
Cable and
Saucer
16-0018SS
Figure 2
Figure 4
Figure 6
