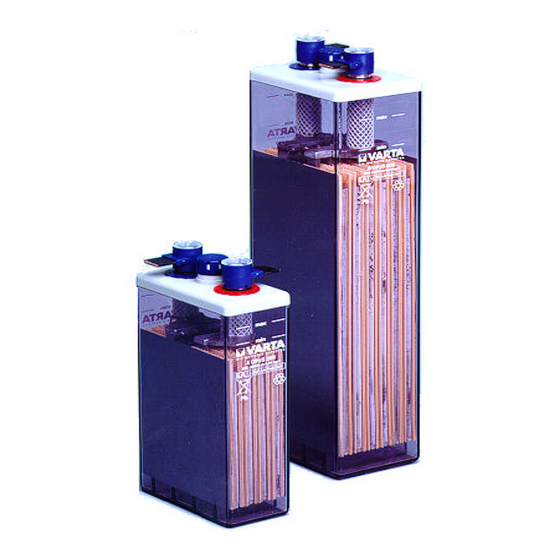

VARTA OPzS range
4 OPzS 200...24 OPzS 3000
Application
VARTA OPzS batteries are long life industrial products
designed for capacitive discharge over longer periods.
The most important features are a high tolerance to
cycling and a long life standby parallel operation.
They are used as reserve power supply in telecommuni-
cations equipment and industrial plant and also in safety
power supply equipment.
Construction
Positive Electrode
Negative Electrode
Separation
Casing Material
Electrolyte
Terminal Design
Connectors
Vent Plugs
Charging
Temperature Range
VHB Industrial Batteries Ltd.• 72 Devon Road, Unit 22, Brampton, Ontario L6T 5B4
Tel: (905) 790-0730 • 1-888-VHB-BATT • Fax: (905) 790-0744 • E-mail: vhbbatt@vhbbatteries.com
Tubular plate with VARTA-
Selenium alloy
(Sb-content: 1.6%)
Grid plate
Micro-porous separator,
combined with corrugated
separator
Styrene-acrylonitrile
(SAN), impact resistant,
transparent
Dilute sulphuric acid
d = 1.24 kg/l
Leakproof safety pole with
solid brass insert and inside
threading, M10
Solid copper, (30 x 3 mm),
insulated, bolt-on type
Safety plugs with flame
arrestor, optional: ceramic
funnel plugs
Float charge voltage:
o
2.23 volts/cell at 20 C
o o
0 ...+55 C
o
(Preferred value 20 C)
Installation
All standard types of installation are permissible.
For use in earthquake zones special approved racking is
available. When installing in battery rooms the local safety
provisions must be adhered to.
Features
2V single cells
Economic operation in capacitive use over several
hours
Leakproof VARTA Safety Pole, proven in operation
VARTA-Safety vent plug with flame arrestor,
optional ceramic funnel plug
Maintenance free to DIN standards > 3 years
in standby parallel operation
Long service life even with cyclic discharge
