Summary of Contents for FWE ASU Series

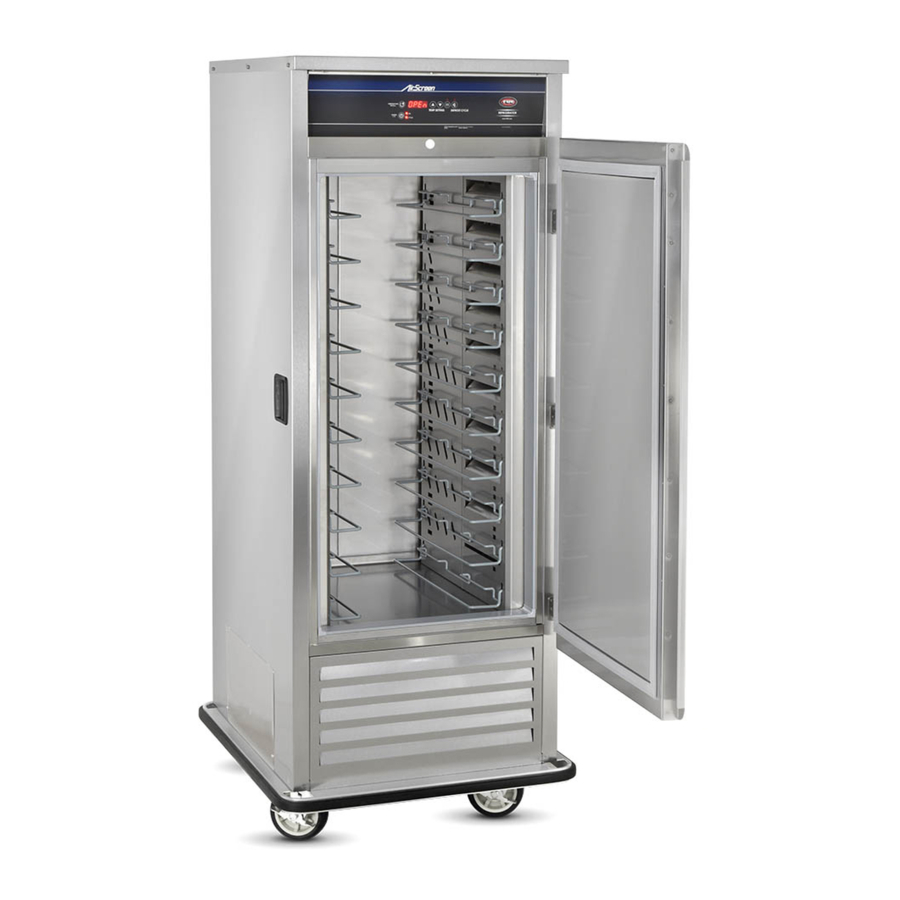

- Page 1 OPERATING INSTRUCTIONS Caution: Read the instructions before R - AS SERIES MODELS using the machine. REFRIGERATED "AIRSCREEN" SERIES...
-
Page 2: Table Of Contents
XVII. Warranty Registration & Service Record Page 23 IMPORTANT THINGS TO DO BEFORE USING YOUR FWE AIRSCREEN: GENERAL INFORMATION Carefully uncrate your unit and check it for damage following the procedures outlined in this manual. A schedule should be put in place for inspections and preventative maintenance. -
Page 3: Delivery Inspection & Unpacking
SHOULD ATTEMPT TO REPAIR OR REPLACE ELECTRICAL COMPONENTS OR WIRING. FWE does not recommend laying the unit down horizontally on its front, sides or back. If the unit has SHOCK HAZARD been laid down horizontally it must be allowed to remain upright for a minimum of 48 hours before... -
Page 4: Installation
TRANSPORTING & UNIT FEATURES INSTALLATION TRANSPORTING Location: The proper location and assembly of your FWE AirScreen is extremely important for proper 1. WARNING: Do not attempt to move the AirScreen Refrigerator until the unit is turned performance. Carefully follow the guidelines listed below: off, the power cord is unplugged and out of the way, or secured around the rear handle. -
Page 5: Electronic Controls
33°F to 40°F (.5°C to 4.4°C). Use the Up Arrow to raise and the Down Arrow to lower the Indicates the unit is turned on. temperature. CYCLE Cycle Indicator Light: Lights when the refrigeration system is running (unit is cooling). FWE Operating Instructions | Refrigerated "AirScreen" Series... -
Page 6: Operation
“low profile” food product typical of these applications. The FWE, Model # R-AS-10, AirScreen Refrigerator is specifically designed to hold 40°F (4.4°C) temperature or below for a minimum of 45 minutes and a maximum of 120 minutes, dependent upon FACTORS THAT AFFECT PERFORMANCE application and operating conditions. -
Page 7: Defrost
This allows time for the cooling system to come back on and The R-AS-10 model uses a time based defrost. bring the temperatures down..CONTINUED ON NEXT PAGE FWE Operating Instructions | Refrigerated "AirScreen" Series... -
Page 8: General Cleaning And Maintenance
FWE AirScreen. Keeping the condenser fins clean of lint and dust accumulation allows the unit •... -
Page 9: Service Information
If there is a situation like a major spill it is possible to remove them for cleaning. If after checking the above items the unit is still not operating properly, please contact FWE to arrange a service call by an authorized service agent. -
Page 10: Troubleshooting Guide
D. Condenser relay not closing or defective. Technician required. “Err8” EPROM Possible corruption ANY PARTS OF THE UNIT OR PRIOR E. Compressor motor winding open or shorted. Technician required TO ANY SERVICE. Internal mechanical trouble with compressor. Technician required. FWE Operating Instructions | Refrigerated "AirScreen" Series... -
Page 11: Wiring Diagram
REFRIGERATED "AIRSCREEN" SERIES REFRIGERATED "AIRSCREEN" SERIES WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAMS FOR R-AS-10 WIRING DIAGRAMS FOR ASU-10 R-AS-10 220V R-AS-10 120V ASU-10 ASU-10 220V 120V FWE Operating Instructions | Refrigerated "AirScreen" Series... -
Page 12: Warranty
FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser, Submit your Warranty & Manufacturer Registration online subject to the exceptions and conditions below, that FWE manufactured equipment shall be free from defects (www.fwe.com/warranty). Scan the QR code to the right. - Page 13 FWE Parts Department: www.FWEparts.com Order Hotline • 800-222-4393 Food Warming Equipment Company, Inc. 5599 Highway 31W. Portland, TN 37148 www.fwe.com sales@fwe.com 800-222-4393 © 2021 Food Warming Equipment Co., Inc. Errors subject to correction. All specifications subject to change without notice.
