Operation and Maintenance Manual
230V/50HZ
GLACIER
AVALANCHE
BLIZZARD

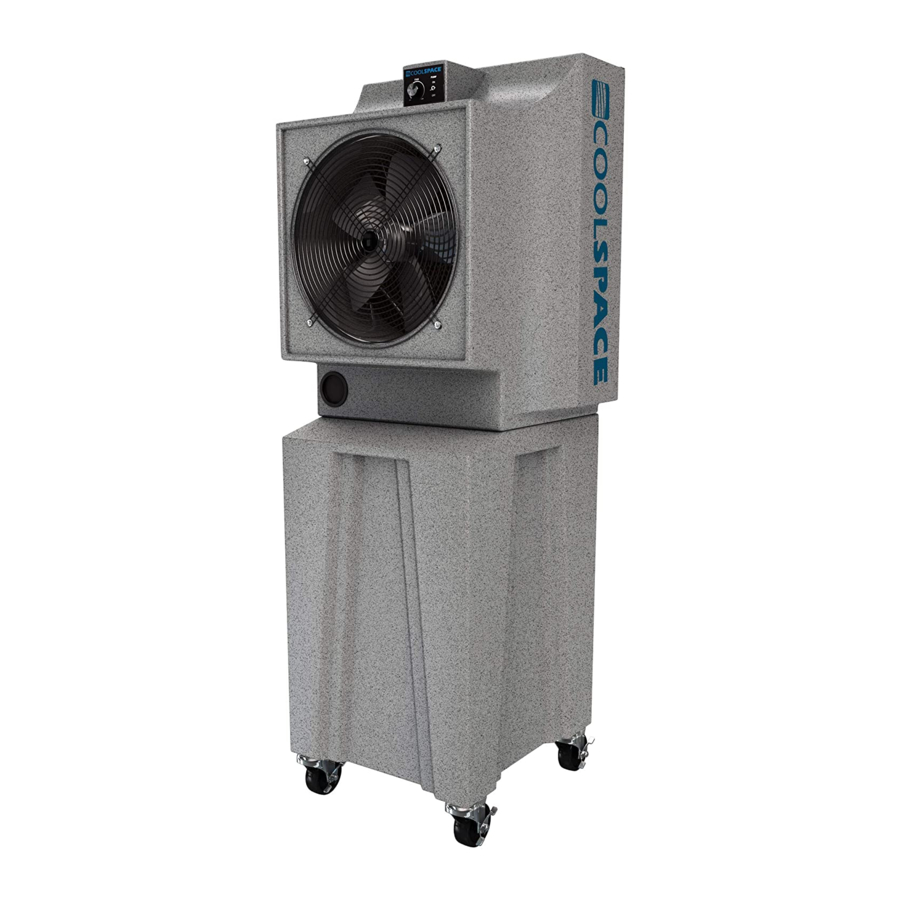

CS5-16-VD
CS6-36-VD
CS6-50-VD
CS5-16-VD-TB2
!
WARNING
IMPORTANT SAFETY INFORMATION INSIDE
Serious injury or death possible. Read, understand, and follow all safety information and
instructions in the manual before operating or servicing this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVALANCHE and is the answer not in the manual?

Questions and answers

Related Manuals for CoolSpace AVALANCHE

Summary of Contents for CoolSpace AVALANCHE

  • Page 1 Operation and Maintenance Manual 230V/50HZ GLACIER AVALANCHE BLIZZARD CS5-16-VD CS6-36-VD CS6-50-VD CS5-16-VD-TB2 WARNING IMPORTANT SAFETY INFORMATION INSIDE Serious injury or death possible. Read, understand, and follow all safety information and instructions in the manual before operating or servicing this product.

  • Page 3: Table Of Contents

    CONTENTS 1.0 INTRODUCTION ..............................4 2.0 UNPACKING YOUR COOL-SPACE UNIT ......................4 3.0 SET-UP OF THE COOL-SPACE UNIT ........................4 3.1 Connecting the water supply ..........................4 3.2 Connecting the electrical supply ......................... 5 4.0 OPERATING PROCEDURES ..........................6 4.1 Filling the unit with water ............................6 4.2 Starting the Fan................................

  • Page 4: Introduction

    SIGNAL WORD DEFINITIONS DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in DANGER death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, COULD result WARNING in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, MAY result in CAUTION minor or moderate injury.

  • Page 5: Connecting The Electrical Supply

    3.0 SET-UP 3.2 CONNECTING THE ELECTRICAL SUPPLY IMPORTANT The unit should be plugged into a fused or circuit breaker protected 230 Volt, 50Hz circuit that meet the minimum amperage requirements. All models utilize standard 230-volt power supply. The unit should be plugged into a fused or circuit breaker protected 230 Volt, 50Hz circuit that meet the following minimum amperage requirements: ◊...

  • Page 6: Operating Procedures

    4.0 OPERATING PROCEDURES Operating procedures, including instructional videos can be found online at www.row.cool-space.com/cool-space-support/ There are 3 factors to consider when determining where to place the COOL-SPACE unit. 1. Fresh air supply: The inlet side of the unit (pad side) requires a constant, uninterrupted supply of fresh air for maximum performance.
  • Page 7 4.0 OPERATING PROCEDURES 4.4 INTUITIVE CONTROL PANEL The BLIZZARD-50 comes equipped with an intuitive control panel. Power Indicator Red Light - Power Connected Green Light - Power On Low Water Indicator Remote Power Sensor On/Off 15 Min. Countdown Pump Auto/Manual Timer Mode Switches machine between auto and...

  • Page 8: Maintenance And Storage

    5.0 MAINTENANCE AND STORAGE Maintenance instructions, including instructional videos can be found online at www.row.cool-space.com/cool-space-support/ WARNING ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death. 5.1 REMOVING THE COOLING MEDIA TO ACCESS THE INSIDE OF THE UNIT In order to perform any maintenance on internal components, the cooling pads must be removed to access the inside of the unit.

  • Page 9: Troubleshooting/Repair

    6.0 TROUBLESHOOTING/REPAIR Troubleshooting guides and repair instructions, including instructional videos can be found online at www.row.cool-space.com/ cool-space-support/ 6.1 TROUBLESHOOTING WARNING ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death. The COOL-SPACE unit consists of three systems: the fan, water distribution and pump.

  • Page 10: Troubleshooting Guides

    6.0 TROUBLESHOOTING/REPAIR 6.2 TROUBLESHOOTING GUIDES FAN SYSTEM INTUITIVE CONTROL PANEL ERROR CODES FAN WON’T RUN AND MAKES NO SOUND E1 - OVER CURRENT PROTECTION Check power cord, extension cord, switches, circuit Current draw too high breaker •Check extension cord size •Reconnect power or extension cord •Check motor spins freely •Reset breaker...

  • Page 11: Troubleshooting Guides

    6.0 TROUBLESHOOTING/REPAIR 6.2 TROUBLESHOOTING GUIDES WATER SYSTEM PUMP The water distribution system consists of two (2) PUMP MOTOR WILL NOT RUN WHEN SWITCH IS assemblies: TURNED ON 1. The Water Inlet Assembly Turn fan on to check for power •Brass bulkhead fitting •If fan doesn’t start check breaker and cord plug-in •If fan does start;...

  • Page 12: Repair Procedures

    6.0 TROUBLESHOOTING/REPAIR 6.3 REPAIR PROCEDURES CAUTION Repairs should be performed by a qualified technician! WARNING ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance. Failure to do so may result in serious injury or death. FAN MOTOR REPLACEMENT FOR CS5-16-VD, CS5-16-VD-TB2 1.

  • Page 13: Technical Support

    6.0 TROUBLESHOOTING/REPAIR 6.4 TECHNICAL SUPPORT Support and service is available directly from your distributor or the COOL-SPACE Technical Support Hot Line at 001-317- 577-0337, email sales@cool-space.com or visit www.cool-space.com. 7.0 WARRANTY Warranty Information and product registration can be found online at www.row.cool-space.com/warranty Under normal use, the warranty covers the unit and its components for thirty-six (36) months from date of invoice.
  • Page 14 This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Inappropriate disposal may be harmful. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 16 International Sales Office PO Box 6916 Bridgnorth WV16 9ED UK 00 44 7979 243154 simon.hartles@cool-space.com www.cool-space.com DISTRIBUTOR: Cross Hire Services 11 Broomhill Road , Tallaght, Dublin 24 Ireland P: 1890 247 266 info@crosshire.ie www.crosshireservices.ie MADE IN USA REV 24FEB2020 PN CS5-16-VD, CS5-16-VD-TB2, CS6-36-VD, CS6-50-VD 230V/50HZ MANUAL...
