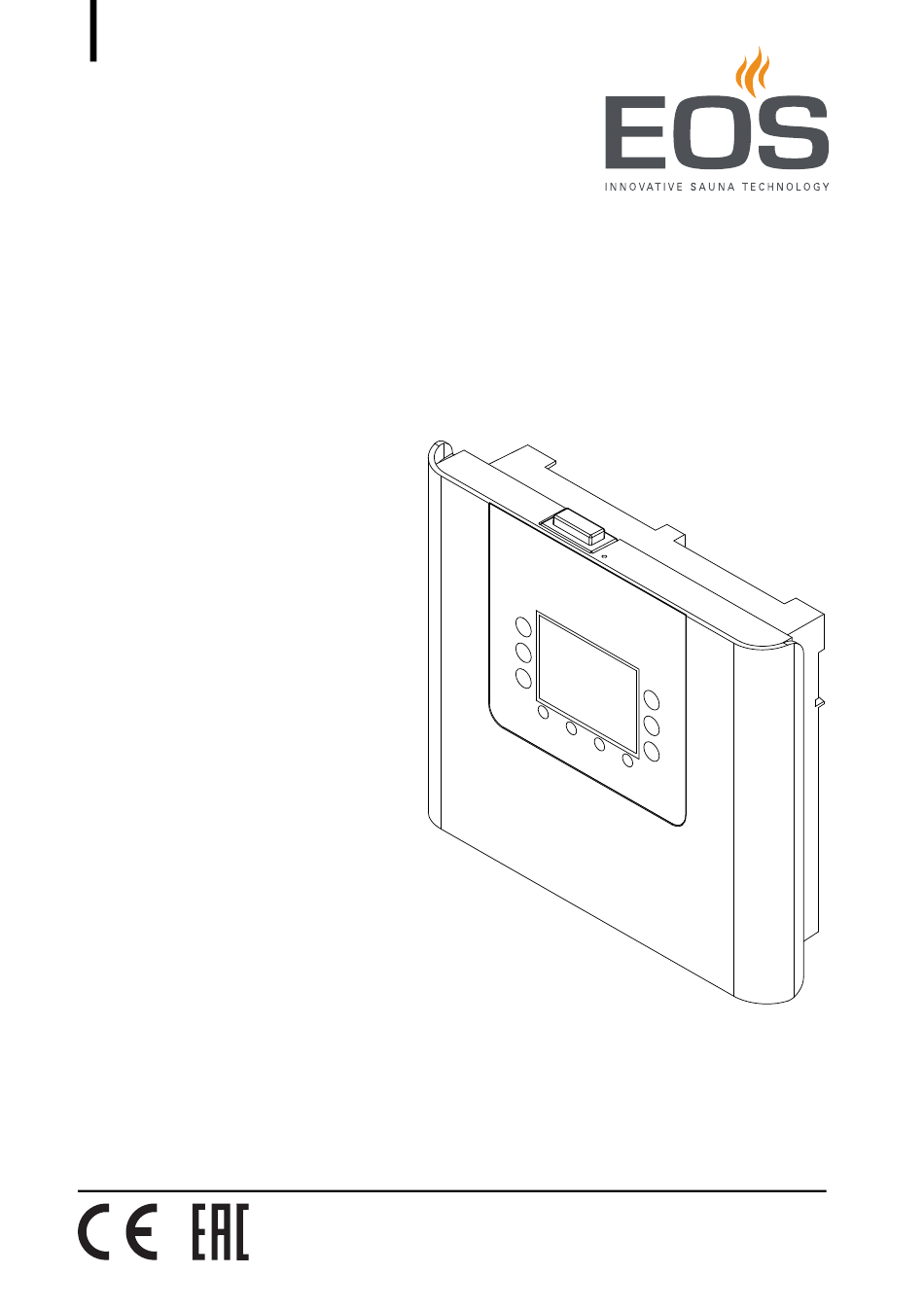

- Page 1 EOS Compact DP/HP Control Unit for Sauna Cabins Installation and Operating Instructions Made in Germany Druck-Nr.: 2902 5160 Stand: 17.2021...
-
Page 2: Documentation
Cross-reference to a page Read instructions Result of a step Table title Title of figure Revision history Date Version Description 1 June 2021 01.00 First version EN-2 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 3: Table Of Contents
Mounting the fan .................. EN-33 4 Connecting the lines..................EN-34 Circuit board assignment for EOS Compact HP ......EN-36 Circuit board assignment for EOS Compact DP ......EN-37 Connecting the sensor cables ............EN-38 Connecting the consumer lines............EN-40 Checking for proper installation of the vaporiser ..... EN-46 5 Commissioning .................... - Page 4 Runtime for HOT mode ............EN-64 6.8.3 Modes – holiday cottage, holiday resort ......EN-65 6.8.4 Temperature control ............EN-66 7 Maintenance .....................EN-67 Cleaning ....................EN-67 Maintenance....................EN-67 Display of software and serial number ..........EN-68 Display of contact information ............EN-68 EN-4 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 5 8 Troubleshooting .................... EN-69 Error messages ..................EN-69 Malfunction ..................... EN-71 9 General terms and conditions of service ........... EN-72 10 Disposal ......................EN-75 EOS Compact DP/HP - Installation and Operating Instructions EN-5...
-
Page 6: General Safety Instructions
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Notice Indicates a hazardous situation which, if not avoided, will result in damage to the unit. EN-6 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 7: Mounting And Electrical Installation
Observe the cabin manufacturer's safety and installation in- structions. Touchable glass surfaces on the outside of the cabins could reach a maximum of 76°C. Attach safety systems if needed. EOS Compact DP/HP - Installation and Operating Instructions EN-7... -
Page 8: Operator Instruction
The operator must make the end user aware of safety instructions that are relevant to the end user. The operator must be familiar with the settings for the heating pe- riod and understand how it is controlled. EN-8 Installation and Operating Instructions - EOS Compact DP/HP... - Page 9 If the heating does not switch off automatically after a defined heating period, cabin use must be supervised at all times. Inspect the cabin before each use. EOS Compact DP/HP - Installation and Operating Instructions EN-9...
-
Page 10: Standards And Regulations
For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product's technical data sheet that can be downloaded from www.eos-sauna.com. Local regulations also apply to the installation and operation of heating, sauna, and steam room systems. -
Page 11: Identification
Identification Identification The scope of delivery of the EOS Compact control unit includes a control unit, a heater sensor with connecting cables for the sensor, and safety tem- perature limiter. The unit is used to operate a sauna cabin. EOS Compact is available in two models: ... -
Page 12: Nameplate
EOS SAUNATECHNIK GmbH, Schneiderstriesch 1, 35759 Driedorf A Name F Country of origin B Model G Manufacturer C Item number H Manufacturing date D Operating voltage Serial number E Switching output Nameplate (example) EN-12 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 13: Heater Sensor
The heater sensor has a safety temperature limiter, which ensures that the temperature does not exceed 140°C. A Temperature sensor B Safety temperature limiter Internal view of heater sensor EOS Compact DP/HP - Installation and Operating Instructions EN-13... -
Page 14: Technical Data
Fan and light connections are protected by a joint 2A F fuse. Connection for fan Max. 100 W Heater sensor KTY sensor with safety temperature limiter 139°C Heating period limita- 6 hrs (factory setting), 12 hrs, 18 hrs, infinite tion EN-14 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 15: Accessories
94.7444 Intended use In conjunction with a suitable sauna heater, the EOS Compact control unit is intended to be used only to heat sauna cabins. It is suitable for cabins used in private and commercial settings. The control unit must be mounted on a wall. -
Page 16: Installation
65°C. If the data lines are installed outside on the wall, they should be protected by a cable duct. Data line(s) routing EN-16 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 17: Installation Site
Risk to life and limb from electric shock and fire in the event of im- proper or faulty electrical connection. This risk also applies follow- ing completion of the installation work. Do not mount the control unit in enclosed cabinets or wood panelling. EOS Compact DP/HP - Installation and Operating Instructions EN-17... - Page 18 Installation Proper and improper mounting of the control unit EN-18 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 19 Mount the control unit inside the building. We recommend mounting the control unit on the cabin’s exterior wall. ca. 350 mm A Eye level Mounting on the cabin’s exterior wall EOS Compact DP/HP - Installation and Operating Instructions EN-19...
-
Page 20: Mounting The Control Unit
Removing the front cover, EN-21 Preparing the air inlets, EN-22 Mounting the control unit on the wall, EN-23 Mounting the control unit in the wall, EN-26 EN-20 Installation and Operating Instructions - EOS Compact DP/HP... - Page 21 Unscrew the screw on the top of the housing. b) Swivel the front cover and remove it downward. Remove the protective film from the panel after mounting is completed. EOS Compact DP/HP - Installation and Operating Instructions EN-21...
- Page 22 Installation Preparing the air inlets Specifying the line openings in the housing. A Openings: sensor line(s) B Openings: mains supply line, heater output, vaporiser supply line, light, fan EN-22 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 23 Break the plates from out of the openings. b) Insert the bushings. A Plates B Bushings Mounting the control unit on the wall Drill one (1) hole above and two (2) holes below. EOS Compact DP/HP - Installation and Operating Instructions EN-23...
- Page 24 Allow the screw to protrude approx. 3 mm so you can hook in the housing. Pull the lines through the openings in the housing. See Preparing the air inlets, EN-22. EN-24 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 25 Securely tighten the housing in the two lower (B). clearance holes A Upper mounting hole for screw B Lower mounting holes for screws Next step: 4 Connecting the lines, EN-34. EOS Compact DP/HP - Installation and Operating Instructions EN-25...
- Page 26 Installation Mounting the control unit in the wall Prepare a wall cut-out: Height x width: 198 x 215 mm, mounting depth: min. 35 mm. EN-26 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 27 Remove the housing. d) Drill four holes. A Tabs with mounting holes for screws Pull the lines through the openings in the housing. See Preparing the air inlets, EN-22. EOS Compact DP/HP - Installation and Operating Instructions EN-27...
-
Page 28: Mounting The Heater Sensor
Hardware + tools: Heater sensor and connecting cables Drill used to drill a hole in the cabin ceiling Screwdriver Taut wire, as needed EN-28 Installation and Operating Instructions - EOS Compact DP/HP... - Page 29 Ensure that there are no heater-specific requirements that ap- ply to installing the sensor. Observe the installation and operating instructions for the sau- na heater. EOS Compact DP/HP - Installation and Operating Instructions EN-29...
- Page 30 Distance from wall 35 cm Drill a hole in the cabin ceiling for the cable. Route the sensor cable through the hole. Attach a taught wire to the cable as needed. EN-30 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 31 If multiple sauna heaters are installed in a sauna cabin, it may be necessary to install additional safety temperature limiters and connect them in series. Insert the receiving disk in the bottom of the housing. EOS Compact DP/HP - Installation and Operating Instructions EN-31...
- Page 32 Attach the housing to the cabin ceiling. a) Screw in the bottom of the housing with the receiving disk to the cabin ceiling. b) Attach the top of the housing. 4.3 Connecting the sensor cables, EN-38 EN-32 Installation and Operating Instructions - EOS Compact DP/HP...
-
Page 33: Mounting The Cabin Lighting
The fan is not included in the scope of delivery. Observe the separate installation instructions for the fan. Fan requirements Minimal output 5 W Maximum output 100 W Voltage 230 V 1N AC Suitable for use in sauna cabins. EOS Compact DP/HP - Installation and Operating Instructions EN-33... -
Page 34: Connecting The Lines
Electrical installation must only be carried out by a qualified and licensed electrician. The unit must be connected to the power supply according to the circuit diagram and the terminal scheme. EN-34 Installation and Operating Instructions - EOS Compact DP/HP... - Page 35 EOS Compact DP: Finnish sauna heater EOS Compact HP: Finnish sauna heater or Bi-O sauna heater Both types of sauna heaters are referred to as sauna heaters in the follow- ing section. However, in instances where different settings must be made, they will be referred to specifically by name.
-
Page 36: Circuit Board Assignment For Eos Compact Hp
C Safety temperature limiter connec- G Cabin lighting tion H Fan D Heater sensor with safety tempera- Vaporiser ture limiter J Sauna heater Schematic view of connections for EOS Compact HP EN-36 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 37: Circuit Board Assignment For Eos Compact Dp
F Heating period limitation jog dial C Safety temperature limiter connec- G Cabin lighting tion H Fan D Heater sensor with safety tempera- Sauna heater ture limiter Schematic view of connections for EOS Compact DP EOS Compact DP/HP - Installation and Operating Instructions EN-37... -
Page 38: Connecting The Sensor Cables
When the cable is connected, the plug is plugged in again to the circuit board. S T B A Terminal plug for safety temper- B Sensor for safety temperature limiter ature limiter EN-38 Installation and Operating Instructions - EOS Compact DP/HP... - Page 39 Connect the cable for the safety temperature limiter from the heater sensor to the two STB terminals on the lower main circuit board. S T B Plug the terminal plug into the circuit board again as assigned. EOS Compact DP/HP - Installation and Operating Instructions EN-39...
-
Page 40: Connecting The Consumer Lines
10 kW resistive load. It can be expanded as needed by an optional output controller (LSG) so that it is possible to connect sauna heaters with an output greater than 10 kW. EN-40 Installation and Operating Instructions - EOS Compact DP/HP... - Page 41 Connect the fan to the two terminals FN and F1. L1 L2 L3 N W V U N WB V1 S1 O V E N L S G M A I N S V A P. EOS Compact DP/HP - Installation and Operating Instructions EN-41...
- Page 42 The heating period is restricted to 6 hours, irrespective of the set jog dial position for heating period limitation. Commercial sauna operation without safety system Commercial sauna operation with safety system EN-42 Installation and Operating Instructions - EOS Compact DP/HP...
- Page 43 In Bi-O mode, a max. of 17:30 hrs can be set, since 0:30 hrs are included for the drying program. Infinite runtime (24 hrs/7 days): commercial operation and if the cabin is continuously supervised, e.g. in public saunas EOS Compact DP/HP - Installation and Operating Instructions EN-43...
- Page 44 You can connect more than one vaporiser. If correctly connected, each vaporiser can report a water shortage separately. For the connection diagram, please contact EOS Service ( Service address, EN-76). Two vaporisers can be operated only in combination with LSG18H or LSG36H.
- Page 45 An output controller is required for heaters with an output capacity of 10.5 kW or higher. See the installation instructions for the corresponding LSG for information about how to connect the other cables for the optional LSG. EOS Compact DP/HP - Installation and Operating Instructions EN-45...
-
Page 46: Checking For Proper Installation Of The Vaporiser
If installed properly, the vaporiser will switch on and off according to the humidity setting. If the Wb and Wm connections on the vaporiser are swapped, the vaporiser will not switch off and continue to run uninterrupted. EN-46 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 47: Commissioning
The program guides you through the required steps. Ensure that the rocker switch is set to Position I. Menu navigation Setting set-point values Reset value Next step Previous step EOS Compact DP/HP - Installation and Operating Instructions EN-47... -
Page 48: Setup
If a fan function is set, it is interrupted when the fan is manually switched on or off. The fan is always switched on automatically for 30 min. for post-heating. EN-48 Installation and Operating Instructions - EOS Compact DP/HP... - Page 49 Fan switched off in heater intermission and heater heat-up phase (supplemental heating program). Fan cannot be switched on or off manually via the menu (menu icon for fan is greyed out) EOS Compact DP/HP - Installation and Operating Instructions EN-49...
-
Page 50: Operation
Control unit is switched off. Parts of the circuit board are still energised. Switch on light only Cabin light is switched on, control unit, and sauna heater are switched off. Setting for cleaning and maintenance. EN-50 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 51: Buttons And Screen
If the sauna cabin is switched off and no button is pushed: After 1 hr Screen saver is activated After 2 hrs Sleep mode is activated (screen is off) Screen saver and sleep mode are ended by pressing any button. EOS Compact DP/HP - Installation and Operating Instructions EN-51... -
Page 52: Instructions For Operation
If 5 seconds pass and no button is pressed, the dis- play returns automatically to the main menu. Press the function soft key or the menu item again. Navigate back with the arrow keys: EN-52 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 53: Main Menu
M Settings G ECO mode Example of overview of functions/menu items on main menu The displayed functions or menu items can vary, depending on the control unit model and its configuration. EOS Compact DP/HP - Installation and Operating Instructions EN-53... -
Page 54: Status Bar
Timer: one-time heating Holiday cottage mode is active period is set. Timer flashes: recurring heating period is set. HOT mode is active Holiday resort mode is active ECO mode is active EN-54 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 55: Keypad Lock
Hours are changed by setting the minutes. 00:00 … 23:59 6.5.2 Display brightness Setting the display brightness Open the Display Brightness menu. Set the brightness with 25%, 50%, 75%, or 100% EOS Compact DP/HP - Installation and Operating Instructions EN-55... -
Page 56: Setup/Reset
Press the On/Off button for 4 seconds. A countdown is displayed: The sauna heater is switched on. The icons for temperature and humidity (in Bi-O mode only) in the main menu are displayed in colour. EN-56 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 57: Dimming Or Switching The Light On/Off
The rocker switch is located on the top of the control unit (6.1.1 Rocker switch (on, off, light only), EN-50). Sauna heater and control unit remain switched off. EOS Compact DP/HP - Installation and Operating Instructions EN-57... -
Page 58: Selecting Finnish/Bi-O Mode
40% of the total operating time. This setting does not take into considera- tion the actual humidity in the sauna cabin and makes it possible to con- sistently produce a specific volume of steam. EN-58 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 59: Heating Period - Auto Stop
Private use in the sauna cabin 00:30 – 06:00 hr In commercial operation, the adjustable heating period depends on which heating period limitation is set. See: Setting the heating period limitation, EN-43. EOS Compact DP/HP - Installation and Operating Instructions EN-59... -
Page 60: Timer
Set the automatic start time with 00:00 – 23:59 hr --:-- (timer is deactivated) Start the timer. Press the button for 2 seconds. : Timer icon is displayed in the status bar. EN-60 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 61: Profiles
The runtime for HOT mode is set to 10 min. by the factory. It can be set, see: 6.8.2 Runtime for HOT mode, EN-64. EOS Compact DP/HP - Installation and Operating Instructions EN-61... -
Page 62: Eco Mode (Temperature Decrease
6.7.11 Retrieving temperature/humidity values Displaying the temperature values Press the Up button for 2 seconds. The set cycle is displayed for approx. 4 seconds. EN-62 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 63: 6.7.12 Switching The Fan On/Off Manually
The factory sets the runtime for ECO mode so that it is ended manually or when the sauna heater is switched off. Setting the ECO mode runtime Open the menu for ECO mode runtime. EOS Compact DP/HP - Installation and Operating Instructions EN-63... -
Page 64: Runtime For Hot Mode
The runtime for HOT mode is set to 10 min. by the factory. Setting the HOT mode runtime Open the HOT Mode Runtime menu. Set the HOT mode runtime with 5 min. 10 min. 15 min. 20 min. EN-64 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 65: Modes - Holiday Cottage, Holiday Resort
Heating duration 0:30 hr to 6:00 hr Activating/deactivating the holiday cottage mode Restart the control unit: switch off and switch on again. Press the following 2 buttons simultaneously when the logo is dis- played. EOS Compact DP/HP - Installation and Operating Instructions EN-65... -
Page 66: Temperature Control
Setting the temperature control Open the Temperature Control menu. Setting the temperature control -5 K -4 K -3 K -2 K -1 K +1 K 10 4 K 11 5 K EN-66 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 67: Maintenance
4000 hours until the next servicing 5000 hours until the next servicing 6000 hours until the next servicing 8000 hours until the next servicing 10 10000 hours until the next servicing EOS Compact DP/HP - Installation and Operating Instructions EN-67... -
Page 68: Maintenance
The software version and serial number of the control unit are displayed. Display of contact information Displaying contact information Open the Contact menu item. The contact information of the contact person for service inquiries is displayed. EN-68 Installation and Operating Instructions - EOS Compact DP/HP... -
Page 69: Troubleshooting
E0001. The icons indicate the currently applicable error category. For errors that are not listed here, please contact EOS Service and provide the error code. See Service address, EN-76. Water shortage warning... - Page 70 Cable is loose or short-circuited cables, EN-38 or Connection through mechanical force. for lines to the receiving disk, Cable is defective or not con- EN-31 nected. Sensor is defective. EN-70 Installation and Operating Instructions - EOS Compact DP/HP...
-
Page 71: Malfunction
EN-50 No heat. No connection. Check the cable and con- nections (broken cable, loose connection, etc.). Other errors Software error. Restart the control unit. ContactEOS Service. See Service address, EN-76. EOS Compact DP/HP - Installation and Operating Instructions EN-71... -
Page 72: General Terms And Conditions Of Service
The customer shall provide assistance free of charge to the manufacturer in rendering services. In the case of a warranty claim, the manufacturer shall provide spare parts necessary for servicing free of charge. EN-72 Installation and Operating Instructions - EOS Compact DP/HP... - Page 73 This warranty shall cover defective equipment parts, with the exception of normal wear parts. Wear parts shall include, for example, light sources, glass elements, tubular heating elements and sauna heater stones. EOS Compact DP/HP - Installation and Operating Instructions EN-73...
- Page 74 Complaints in respect of our products shall be reported to the responsible distributor and shall be handled exclusively by said distributor. The manufacturer's General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. EN-74...
-
Page 75: 10 Disposal
Used paper, cardboard Plastic foil Foam material Electronic waste Electronic waste must be disposed of at the designated local collection point for electronic waste. EOS Compact DP/HP - Installation and Operating Instructions EN-75... - Page 76 Store this address with the Installation and Operating Instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - All rights reserved.
