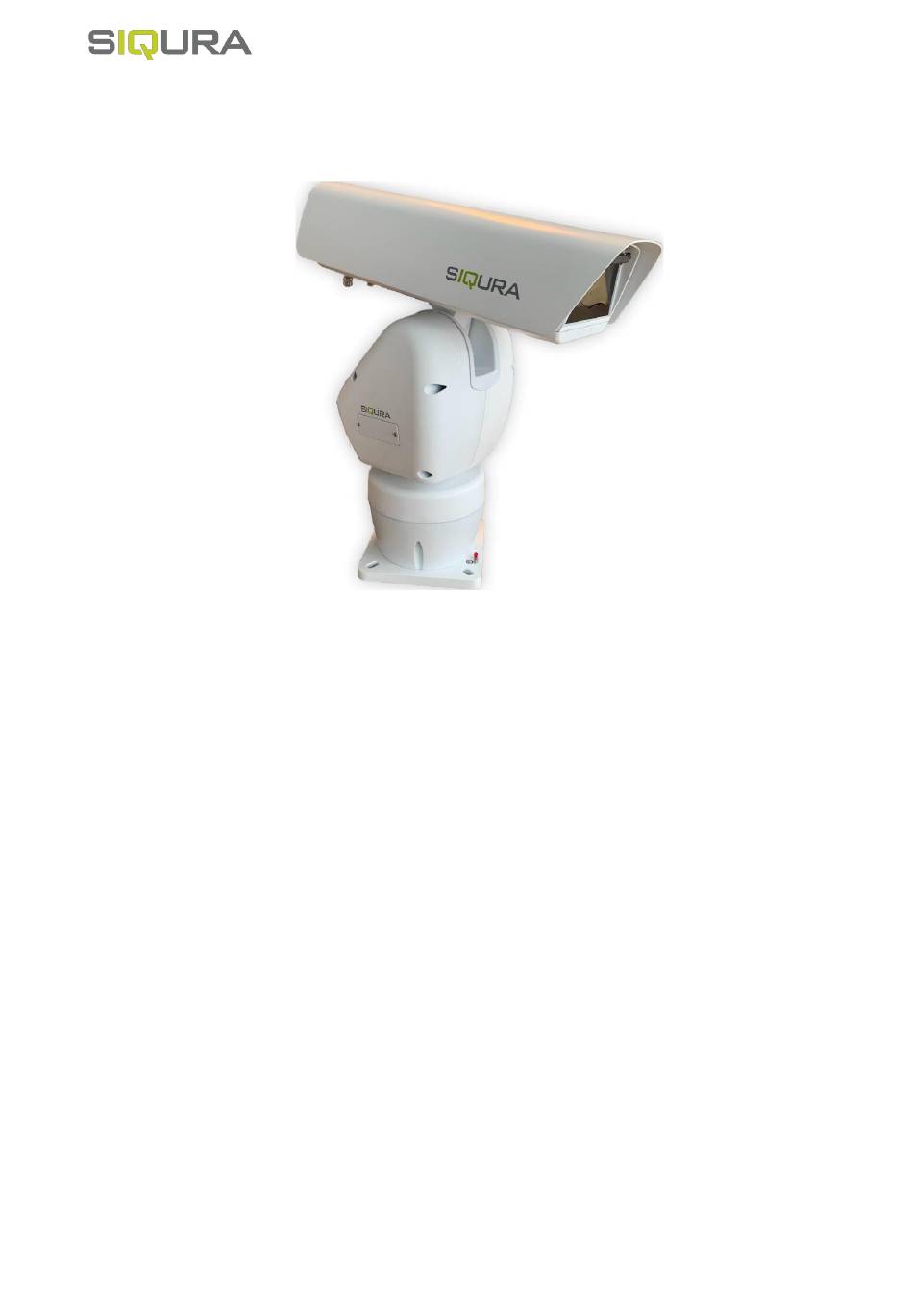

- Page 1 Installation manual UP Series UP33 and UP36 camera station Document name: upxxseries_v1.1-IM-EN.docx...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
CONTENTS Important safety instructions ................4 Description ..................... 5 Models ......................5 Installation and connections ................5 Overview ....................5 Installing the optional IR Illuminator (UP-IR200) ........... 6 Mounting with the optional wall bracket (UP-WM) .......... 8 Connections ................... 10 4.4.1 Power supply (4) ................ -
Page 4: Important Safety Instructions
1 Important safety instructions Prior to installation and operation, carefully read all instructions the in this manual and heed all warnings. Unpack this equipment and handle it carefully. If the package appears to be damaged, notify the shipper immediately. Use the original packaging to transport the unit. Disconnect power supply before moving it. In case of returning the equipment, the original packaging must be used. -
Page 5: Description

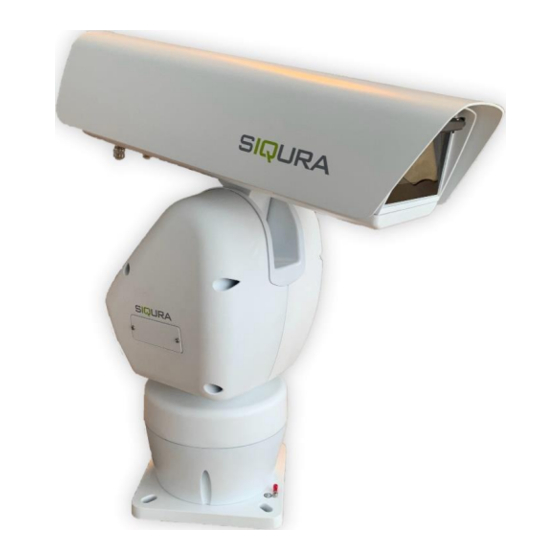

2 Description The Upright PTZ (UP33 or UP36) is a high-precision, full-featured network PTZ camera providing high-quality, high-definition images. The robust construction of cast aluminium and durable plastics ensures accurate positioning and stable video, both close by and at large distances. The UPxx is designed to operate under extreme temperatures for mission critical applications. -
Page 6: Installing The Optional Ir Illuminator (Up-Ir200)
4.2 Installing the optional IR Illuminator (UP-IR200) 1. Secure the bracket to the camera with the 3 supplied bolts. 2. Connect the IR illuminators to the brackets. Lead the IR illuminator cable into the housing through the cable-clamps in the bracket and insert it in the housing through the cable-gland at the back of the housing. - Page 7 4. The default setting for IR-illumination control is by the light-sensor. Both UP33 and UP36 controls the illuminators by their Day/Night mode. To have full control over the illuminators set DIP Switch 8 to “Aux-control” (= OFF) SW1: Reserved Reserved Reserved Reserved Reserved...
-
Page 8: Mounting With The Optional Wall Bracket (Up-Wm)
4.3 Mounting with the optional wall bracket (UP-WM) 1. Fix the wallmount bracket (UP-WM) using sturdy anchor bolts. Each bolt should be able to hold at least 60 kg. (M10x30 is recommended) Washer Anchor bolts (M10x30) Rear gasket 2. Replace the rectangle shaped base-plate from the base housing with the wallmount adapter. - Page 9 4. Mount the UP33 or UP36 on the wallmount bracket. Lead the multicable tail through the cable tray of the bracket. 5. Reassemble the cover of the wallmount bracket. 9 of 13 | P a g e...
-
Page 10: Connections
4.4 Connections Washer control Not connected Ethernet (RJ45) Camera and IR power 4.4.1 Power supply (4) Cable Label Cable colour Input Brown Main power 24 Vac, 3 A, 50/60 Hz Blue Black IR Illuminator power 24 Vac, 3 A, 50/60 Hz Green Recommend power supply wire specification: Wire type... -
Page 11: Washer Control (1)
ALARM OUT COM Yellow Common (Washer) The connection diagram looks as follows: ALARM OUT NC ALARM OUT NO (WASHER) ALARM OUT COM (WASHER) Connection example with the Siqura washer tank SA-WP10-10m-VSF-24-v2 Washer tank (SA-WP10-10m-VSF-24-v2) 11 of 13 | P a g e... - Page 12 Connection example with the SA-WP10-10m CSF-24 (or -230) 24Vac UP33/UP36 Washer tank 12 of 13 | P a g e...
- Page 13 13 of 13 | P a g e...
