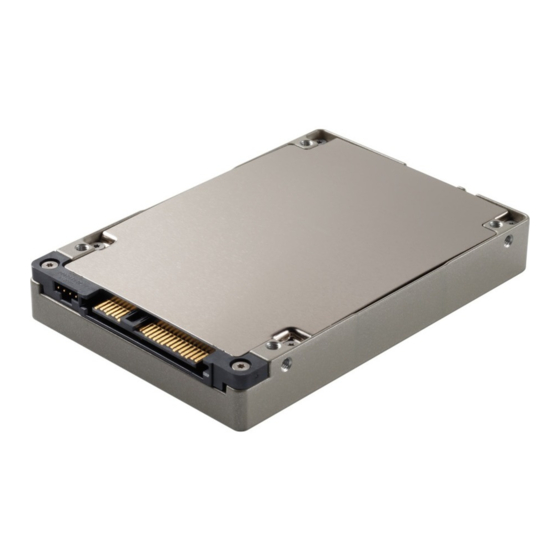

Micron S650DC Manual

S600DC Series 2.5-Inch SAS NAND Flash
SSD
MTFDJAK400MBS, MTFDJAK400MBT, MTFDJAK800MBS,
MTFDJAK800MBT, MTFDJAL1T6MBS, MTFDJAL1T6MBT,
MTFDJAL3T2MBS, MTFDJAL3T2MBT, MTFDJAK480MBT,
MTFDJAK960MBT, MTFDJAL1T9MBT, MTFDJAL3T8MBT,
MTFDJAL1T9MBU, MTFDJAL3T8MBU, MTFDJAK200MBW,
MTFDJAK400MBW
Features
• Four endurance levels
– S655DC = 25 DWPD; S650DC = 10 DWPD
– S630DC = 2–3 DWPD; S610DC = <1 DWPD
®
• Micron 16nm MLC NAND Flash
• RoHS-compliant package
• SAS
– Interface = 12 Gb/s
– Speed = 3 Gb/s, 6 Gb/s, 12 Gb/s, and auto-speed
negotiation
– SAS-3 support
• SAM-5 compliant
• Enterprise sector size support = 512, 520, 524, 528,
4096, 4160, 4192, and 4224-byte
• Hot-plug capable
• 128-entry command queue depth
• Digitally signed firmware for SED and non-SED
• FIPS140-2 level 2 certification option available on
each S650DC 2.5-inch device:
400GB, 800GB, 1600GB, and 3200GB
• Secure erase via format unit
• Reliability
– MTTF: 2.5 million device hours
– Static and dynamic wear leveling
– Uncorrectable bit error rate (UBER): 1 × 10
transferred
2
• Capacity (unformatted): 200GB, 400GB, 480GB,
800GB, 960GB, 1600GB, 1920GB, 3200GB, 3840GB
• Endurance: TBW over warranty period
– S655DC (25 DWPD):
200GB-8PB, 400GB-17PB
– S650DC (10 DWPD):
400GB-7PB, 800GB-14PB
1600GB-29PB, 3200GB-58PB
CCMTD-1725822587-3891
s600dc_series_2_5_sas_ssd.pdf - Rev. H 9/17 EN
Products and specifications discussed herein are subject to change by Micron without notice.
S600DC Series 2.5-Inch SAS NAND Flash SSD
1
17
bits
4
1
• Endurance: TBW over warranty period
– S630DC (2–3 DWPD):
400GB-2.1PB, 480GB-2.6PB,
800GB-2.9PB, 960GB-5.2PB,
1600GB-5.8PB, 1920GB-10PB,
3200GB-12PB, 3840-21PB
– S610DC (1 DWPD):
1920GB-2.8PB, 3840GB-5.6PB
• Electrical
– Supply voltage: 5 V
• Mechanical
– 2.5-inch drive: 100.5mm × 69.85mm × 7mm, and
100.5mm × 69.85mm × 15mm
• Field-upgradeable firmware
• Power consumption: 9W (TYP) and 12W (MAX)
– Configurable through information exceptions
mode page
• Operating temperature
– 0°C to +50°C (MAX)
1. Product achieves a mean time to failure
Notes:
(MTTF) based on population statistics that
are not relevant to individual units.
2. 1GB = 1 billion bytes; formatted capacity is
less.
3. Based on ambient air temperature.
4. Total bytes written (TBW): Warranty de-
fined in the product manual is five years or
device expiration as indicated by the device
life indicator, whichever comes first.
Warranty: Contact your Micron sales representative
for further information regarding the product, includ-
ing product warranties.
Micron Technology, Inc. reserves the right to change products or specifications without notice.
Features
4
(±5%) and 12 V (±5%)
DC DC
3
© 2015 Micron Technology, Inc. All rights reserved.
