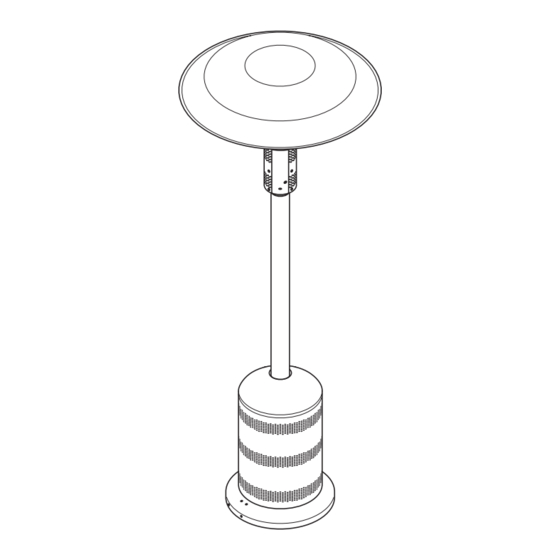

Propane/LP Patio Heater
Owner's Manual
98LK
WARNING: For
outdoor use only.
MODELS SPC-54PHW, SPC-54PHB, AND SPC-54PHT
IMPORTANT: Read and understand this manual before
assembling, starting or servicing heater. Improper use
of heater can cause serious injury. Keep this manual for
future reference.
GENERAL HAZARD WARNING:
Failure to comply with the precautions and instructions
provided with this heater, can result in death, serious
bodily injury and property loss or damage from hazards
of fire, explosion, burn, asphyxiation, carbon monoxide
poisoning, and/or electrical shock.
Only persons who can understand and follow the in-
structions should use or service this heater.
If you need assistance or heater information such as an in-
structions manual, labels, etc. Contact the manufacturer.
Save this manual for future reference.
For more information, visit www.desatech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allpro SPC-54PHW
Summary of Contents for Allpro SPC-54PHW
- Page 1 Propane/LP Patio Heater Owner’s Manual 98LK WARNING: For outdoor use only. MODELS SPC-54PHW, SPC-54PHB, AND SPC-54PHT IMPORTANT: Read and understand this manual before assembling, starting or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
-
Page 2: Table Of Contents
Specifications ... 2 Safety Information ... 2 Propane/LP Safety ... 4 Assembly Instructions ... 5 Operating Instructions ... 7 Storage ... 8 Rating Type of Gas Gas Supply Pressure to regulator Gas Supply Pressure Regulator out Ignition Fuel Consumption Flame Safety SAFETY INFORMATION WARNING: This product con- tains and/or generates chemicals... - Page 3 SAFETY INFORMATION Continued 3. Use only propane/LP gas. 4. Use only VAPOR WITHDRAWAL propane supply. The propane cylinder must be arranged for vapor-withdrawal, in accordance with the Compress Gas Associations, Small Propane Bottle Assembly. If there is any question about vapor withdrawal, ask your propane dealer.
-
Page 4: Propane/Lp Safety
• Refer to the specification section of the heater’s manual, heater data plate, or contact DESA Heating Products to determine combustion air ventilation requirements of the heater. • Lack of proper ventilation air will lead to improper combustion. - Page 5 4. Insert manifold into pole support (see Figure 2). Insert the manifold assembly through the post by passing through the hole in the post support. Note: Make sure hose and regulator assembly attached to manifold are never bent or kinked during installation and operation of heater.
-
Page 6: Check For Leaks
ASSEMBLY INSTRUCTIONS Continued CHECK FOR LEAKS IMPORTANT: The heater must be leak tested be- fore any further assembly is done. Use only a soap and water solution. DO NOT USE FLAME. Turn control knob to the "OFF" position. Securely connect regulator to propane/LP gas cylinder. Open propane/LP cylinder valve. -
Page 7: Operating Instructions
ASSEMBLY INSTRUCTIONS Continued DOME AND EMITTER Gently lay heater assembly on its side using one of the shipping styrofoam inserts to prop up the top half of heater. Align holes in dome with threaded studs in emitter cover. Secure dome to emitter using three cap nuts. -
Page 8: Storage
OPERATING INSTRUCTIONS Continued CAUTION: Do not attempt to slide the viewing hole cover when the main burner is lighting, operating or hot. 3. Set the heat level. a) Press and turn control knob to the HIGH position, Burner will light immediately. b) Press and turn control knob to the desired heat level. -
Page 9: Replacement Parts
PARTS UNDER WARRANTY Contact authorized dealers of this product. If they canʼt supply original replacement part(s), either contact your nearest Parts Central or call DESA Heating Productsʼ Technical Service Department at 1-866-672-6040. When calling DESA Heating Products, have ready •... -
Page 10: Illustrated Parts Breakdown And Parts List
ILLUSTRATED PARTS BREAKDOWN MODELS SPC-54PHW, SPC-54PHB, AND SPC-54PHT 19 18 www.desatech.com 114144-01A... -
Page 11: Parts List
This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 9 of this manual. PART NUMBER 114133-01 114102-01 114104-01 114113-01 114126-01 114130-01 114138-01 114140-01 114142-01 114115-01 114129-01 114136-01 114105-01 102445-01 114117-01 114141-01... -
Page 12: Warranty And Repair Service
Date of Purchase DESA Heating Products warrants this product and any parts thereof, to be free from defects in materials and workmanship for one (1) year from the date of first purchase when operated and maintained in accordance with in- structions.
