Summary of Contents for Beghelli 26700
- Page 1 up to INSTALLATION, USE AND MAINTENANCE MANUAL (code 26700)
-
Page 2: Operation
® UV-C rays: the flow cell UVoxy draws in air from the environment and delivers sanitized air. In the SanificaAria 30 device, the UV-C chamber size makes it suitable for small and medium-sized rooms (up to 50m OPERATION The sanitization unit... - Page 3 Testing and Certification Test performed according to ISO15714, as applicable, on sample microorganisms. The test details can be found on geltinternational.it/technal/beghelli or by scanning the QR CODE COMMITMENT TO QUALITY controlled by Independent Third Parties. Device conforming to...
-
Page 4: Device Use

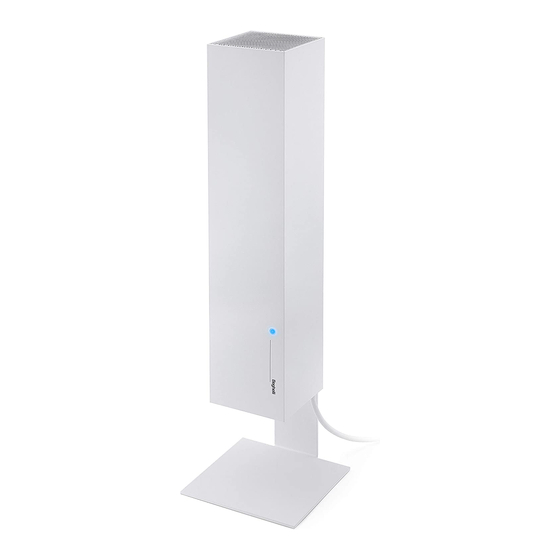

DEVICE USE: Please read the maintenance instructions and safety warnings carefully before use. Its compact design and the different installation options (wall-mounted, suspended, on a support or on a floor stand with a bracket) make it particularly versatile. Pay attention not to obstruct the correct air flow. Dimensions mm Sanitization rate... -
Page 5: Floor-Stand Installation
FLOOR-STAND INSTALLATION - Take out the 2 screws from the back of the device - Fix the bracket to the product by tightening the screws - Connect the power cord to the mains MOUNTED ON A SUPPORT - Place the 4 rubber washers on the backside and fix the device on the support - Connect the power cord to the mains... -
Page 6: Wall And Ceiling Mounting
WALL AND CEILING MOUNTING - Fix the bracket (A) to the wall (centre to centre distance:300mm) - Attach the 2 riders (B) to the device - Anchor rider B onto the bracket (A) (see detail) and fix it in screws (C) -
Page 7: Suspended Mounting
SUSPENDED MOUNTING - Attach the bracket (A+B) to the device - Fix the riders (D) in their seats (centre to centre distance: 300mm) -
Page 8: Maintenance
MAINTENANCE Before cleaning or maintenance, make sure the device is turned off and disconnected from the power supply. CLEANING Remove the dust that may have built-up on the outer grids, using a brush. When replacing the cartridge, remove the dust from the internal deflectors. - Page 9 - Take out the inside part (single body) and remove the cover ® - Replace the cartridge only with an original UVoxy Beghelli spare part (code 26720) - Put the cover back on, re-insert the device body into the housing and tighten the 5 screws (the middle screw last) SanificaAria 30 TECHNICAL FEATURES Power supply: 230VAC ±...
-
Page 10: Safety Warnings
- The device must be turned off and disconnected from ® the power supply before replacing the UVoxy Beghelli cartridge (code 26720). - Do not insert small objects into the ventilation grid. They could damage the fans and impair the device operation. - Page 11 It must not be discarded as unselected municipal waste. It must be taken to recycling centres or sent back to the Beghelli vendor. Recyclable materials used in the appliance can be recovered to avoid environmental pollution.
- Page 12 For information on the effectiveness of cutting down microbiologic load, scan the QR code or visit geltinternational.it/tecnal/beghelliwebsite Toll Free INFORMATION BEGHELLI S.p.A. - Via Mozzeghine 13/15 - loc. Monteveglio 40053 Valsamoggia (BO) - ITALY - Tel. +39 051 9660411 - Fax +39 051 9660444...
