Instruction Manual
Omegon® Pro Cameras
veLOX, veTEC, GUIDE
English Version 8.2019 Rev. A, Art.-Nr. 61031-61045, 63068-63070
Reproduction of part or all of the contents of this document in any form is expressly prohibited other than for individual use only. All text, images and labels are property of Nimax Gmbh.
Advertisement
Related Manuals for Omegon Pro GUIDE 1200B
Summarization of Contents
Omegon Pro Camera Parts: VELLOX and GUIDE
CNC Aluminium Body
The light but sturdy body protects the camera from damage.
1.25" Neck
Front part with 1.25" diameter for telescope fitting, includes extender and filter thread.
CS-Mount
Thread for accessories like CCTV lenses; includes a spacer for C-mount conversion.
ST4 Port
Autoguider port for easy connection to a mount for guiding.
USB2 or USB3 Port
Connects camera to PC for data transfer and power; USB3 enables high framerates.
Sensor Plane Marking
Symbol marking the sensor plane for correct positioning in optical setups.

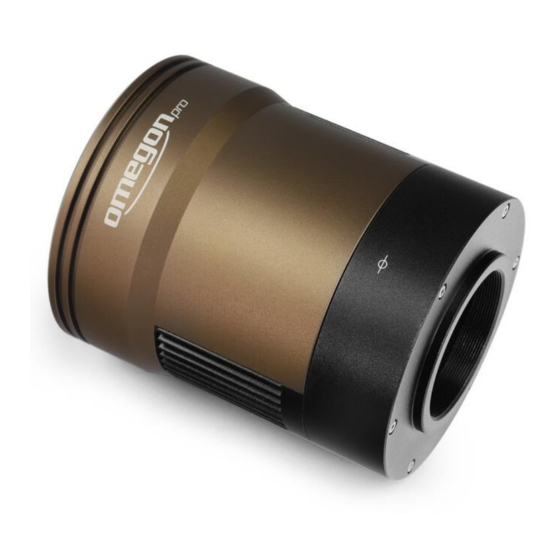

Omegon Pro Camera Parts: VETEC
CNC Aluminium Body
The light but sturdy body protects the camera from damage.
T2 Thread
Female M42x0.75 thread for equipment connection; includes 2" nosepiece adapter.
USB3 Port
Connects camera to PC for data transfer and power; USB3 enables high framerates.
12V DC Power Input
Required for thermoelectric cooling; connects to a 12V 3A DC power supply.
USB Hub
Integrated hub for connecting other devices, useful for connecting GUIDE cameras to VETEC.
Status Lights
LEDs indicate power connection, PC connection, and cooling status (PWR, SYS, TEC, FAN).
TEC Cooling
Powerful thermoelectric cooling element reduces sensor noise by up to 40°C below ambient.
Sensor Plane Marking
Symbol marking the sensor plane for correct positioning in optical setups.
Desiccant Plug
Absorbs moisture in the sensor chamber to prevent frost on cooled sensors.
Included Software and Drivers
Omegon AstroPhotoCapture
Basic interface software for controlling the astro camera, capturing images and videos.
ASCOM Camera Driver
Enables use with popular astrophotography software via the ASCOM platform on Windows.
DirectShow Driver
Interface for popular astrophotography software, suited for solar-system astrophotography.
Omegon Pro SDK
Software Development Kit for developers to make applications compatible with Omegon Pro cameras.
