Summary of Contents for Show CAS-308W

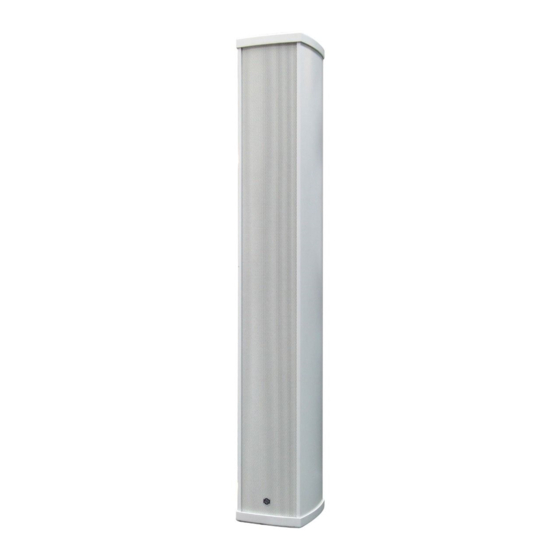

- Page 1 User's Manual COLUMN ARRAY SPEAKERS CAS-308...
-
Page 2: Table Of Contents
INDEX SAFETY RELATED SYMBOLS WARNING INTRODUCTION INSTALLATION ACCESSORY BACK PANEL DESCRIPTION SYSTEM CONNECTION PLATE TECHNICAL SPECIFICATIONS... -
Page 5: Introduction
INTRODUCTION CAS-308 is a professional column array speaker developed by SHOW. With 1.0mm mesh and 1.0mm grille, it can effectively protect unit from external damage and prevent dust into the speaker. Cabinet is made by aluminum alloy with coating, to make delicate touch. -
Page 6: Installation
INSTALLATION 1) Make sure the expansion screws of mounting brackets can filmy support the product weight before installation to avoid causing the injuries of the facilities and a worker if there is a falling. 2) Make sure the bracket is installed in vertical position and install expansion screw in the identified location. -
Page 7: Accessory
ACCESSORY • 180 ° x 30 ° bracket • L bracket BACK PANEL DESCRIPTION POWER SELECTIONS 1) Do not connect BLACK and WHITE for 70V input 2) Do not connect BLACK and BROWN for 100V input... -
Page 8: System Connection Plate
SYSTEM CONNECTION PLATE CH1/CH2 loaded with 70V, dual channel input: 1. Select "MONO/DUAL" at " DUAL" position, dual channel input; 2. CH1/CH2 output select at " 70V" position, both loaded with rated 70V speaker; 3. Select "L/H CUT" at " ON" position, to prevent low frequency protection and improve the transmission efficiency. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Model Passive CAS-308B / CAS-308W Column Array Speaker System Type 70V/100V Input Voltage Transformer selectable Power 7.5W /15W /30W / 60W 667Ω / 333Ω / 167Ω / 83Ω System Impedance 100V 1333Ω / 667Ω / 333Ω / 167Ω Sensitivity (1w/1M) 95dB 116dB... - Page 10 NF04921-1.0...
