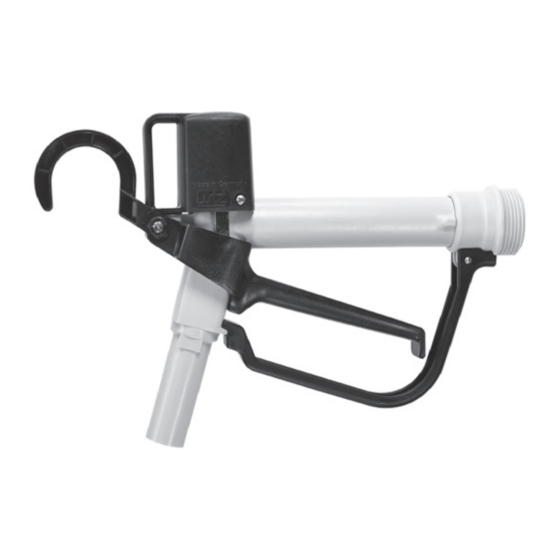

- Page 1 Translation of the original instructions NOZZLES Type PVDF Brass Please read this manual before starting up. To be retained for future reference.
-
Page 3: Table Of Contents
3. Transport and storage ........................8 3.1 Transport ............................ 8 3.2 Storage ............................8 4. Assembly instruction for nozzles PP and PVDF with hose connection rotatable ....... 9 5. Start-up and operation........................9 6. Maintenance ............................. 9 7. Repairs ............................10 7.1 Sending the pump to the manufacturer ................... -
Page 4: Concerning This Manual
The content of this operating instruction and the im- Document Purpose ages contained in them are subject to the copyright Operating Proper use and connection protection of Lutz Pumpen GmbH. instructions hose of the hose line lines Tab. 2: Associated applicable documents and purpose... -
Page 5: Safety
2. Safety Modifications Unless the manufacturer has provided its consent in The manufacturer will not be held responsible for writing, the manufacturer is not liable for interven- any damages resulting from non-compliance of tions performed by the user (modifications) on the the overall documentation, in particular for dam- product, such as conversion, alteration, new design, ages in case of non-compliance of the operating etc. Modifications not agreed with the manufacturer... -
Page 6: Proper Use
• The nozzles of type PP and PVDF are used to fill provided that they are supervised or have been and transfer neutral and aggressive liquids. instructed in the safe use of the device and • The stainless steel type nozzle is used for filling... -
Page 7: Technical Data
Splashing liquid or flying parts can cause injury or may kill you. ► Observe the values in the following table. Check that the nozzle materials are compatible with the medium being delivered (e.g. Lutz-catalogue resistance table): Type PP (DN 19) PP (G 1 1/4) PVDF Brass Max. operating pressure 1 bar 3 bar... -
Page 8: Transport And Storage
► Check that the consignment is complete as ordered. 3.2 Storage ► Store the nozzle in a dry place, protected from the weather and UV-rays. ► After use, keep the nozzles PP, PVDF and SS on the suspension hook (→ Fig. 2, pos. 1). Fig. 1 Legend: (1) Equipotential bonding cable, (2a) conductive... -
Page 9: Assembly Instruction For Nozzles Pp And Pvdf With Hose Connection Rotatable
4. Assembly instruction for WARNING nozzles PP and PVDF with hose Danger of injury and intoxication when han- connection rotatable dling hazardous liquids! Liquid can splash, drip or overflow uncontrollably. ► Wet sliding surfaces and sealing rings with a ► Attach the nozzle to the hose using suitable... -
Page 10: Repairs
► The rotary joint must be moved to all possible ous area positions during the conductivity test. ► Only use Lutz spare parts. If other spare parts Before sending back the appliance, following must are used, liability on the part of Lutz Pumpen is be observed: obsolete. -
Page 11: Waste Disposal
► Dispose of the device according to the locally applicable regulations. 9. Traceability Appliances for potentially explosive atmospheres are identified by an individual serial number. Lutz Pumpen ensures the traceability of this device up to the initial point of delivery according to ATEX Directive. All persons who redeliver the device are obliged to guarantee its traceability to enable subsequent recall actions. - Page 12 Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Tel.: (+49 93 42) 8 79 -0 Fax (+49 93 42) 87 94 04 Email: info@lutz-pumpen.de www.lutz-pumpen.de Subject to technical changes. 03/2021 Best.-Nr. 0697-551 Printed in Germany...
