The White Lightning
The White Lightning™ X-Series Flash Units are manufactured
and directly sold by Paul C. Buff, Inc.
The X-Series™ includes models X800, X1600, and X3200. This
manual may also be used for operation of the retired X2400 model.
Paul C. Buff, Inc.™ • 2725 Bransford Ave. Nashville, TN 37204
toll free 1-800-443-5542 • local 615-383-3982 • paulcbuff.com
Thank you for purchasing a White Lightning™ X-Series Flash Unit!
Please contact our customer service team if you need assistance.
™
X-Series Operation Manual
TM
TM
In Nashville, Tennessee.
v. 8/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the White Lightning X1600 and is the answer not in the manual?

Questions and answers

Related Manuals for BUFF White Lightning X1600

Summary of Contents for BUFF White Lightning X1600

  • Page 1 The X-Series™ includes models X800, X1600, and X3200. This manual may also be used for operation of the retired X2400 model. Paul C. Buff, Inc.™ • 2725 Bransford Ave. Nashville, TN 37204 toll free 1-800-443-5542 • local 615-383-3982 • paulcbuff.com Thank you for purchasing a White Lightning™...

  • Page 2: Power Requirements

    Vagabond Portable Power Systems. The Vagabond Systems are designed specifically for Paul C. Buff, Inc. flash units and power packs, offering a convenient, lightweight, self-contained portable power source at a very low cost (please call us or visit our website for specific product details).
  • Page 3 A full range of accessories are compatible with the X-Series units, as a quick-release mechanism attaches the entire line of standard Paul C. Buff, Inc. reflectors and modifying accessories, while dual holders allow the simultaneous use of umbrellas and counter weight shafts.

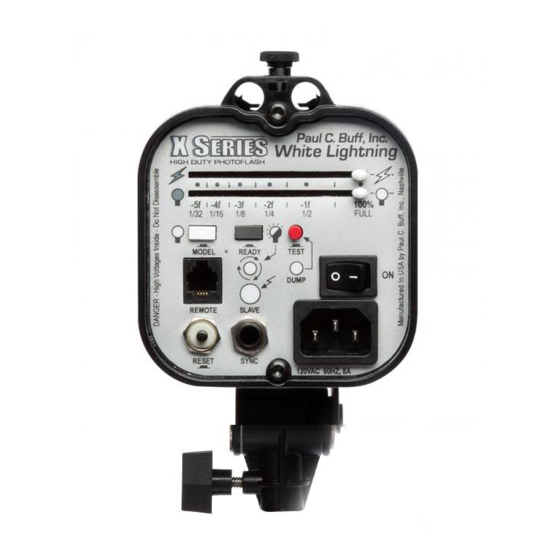

  • Page 4 THE X-SERIES CONTROL PANEL: The Control Panel on the X-Series flash unit offers you clear control of the unit’s features, conveniently labeled and collectively located for simple and quick manipulation. Note: The Blue “RANGE” Switch that allows the unit to switch from High Power to Low Power mode is only available on the X1600 and X3200 models (NOT on X800...
