OZCO 56649 Installation Instructions Manual

Installation Instructions, .75 OWT Thru-Bolt
Timber Fasteners

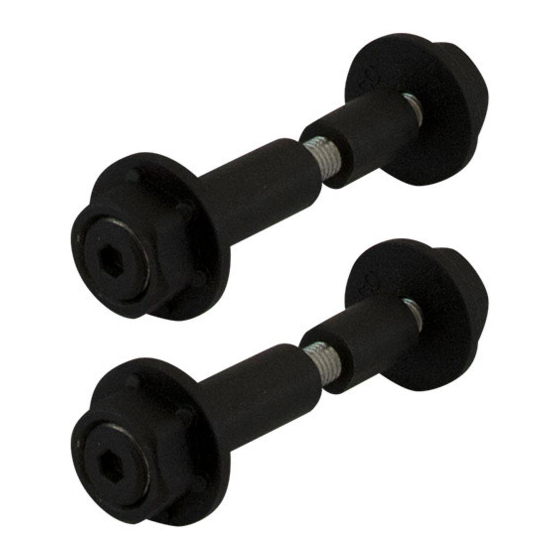

3/4" OWT Thru-Bolt Timber Fasteners
compare to
carriage bolts
optional Washer (#56680)
for additional holding
power
How does it work?
• tightens from the inside
• excess threads are concealed
• no exposed dangerous edges
• 5 width ranges to choose from
Timber Bolts may be
installed as a standalone
fastener or with many
OZCO connector options
for lighter duty applicatons,
see 1/2" OWT Thru-Bolt Timber Fasteners
V2.00 - Installation Instructions, Specifications and Project Plans are effective 4/21/2016 . This information is updated periodically
and should not be relied upon after 2 years from 4/21/2016 . Please visit OZCOBP.com to get current information.
Installation Instructions,
Optimum Size Selection Table
width range Timber Bolt
1.5-4"
4.25-6"
6.25-8"
8.25-10"
10.25-12"
• Timber Bolts are usable .25" past
documented range, however use
table for best selection
• Timber Bolts can accomodate 2
#56680 washers in MAX range
• Recommended MAX tightening
torque: 10in/lbs
• Width range tolerance: +.25"/-.0
• Timber Bolts with 2 connectors:
custom widths are possible when
eliminating 1 connector & stud
connectors
56673
56649
56650
56651
56652
stud
1
