Battery exchange in BSF7 and BSF8 stations
V1.1
22.09.2015

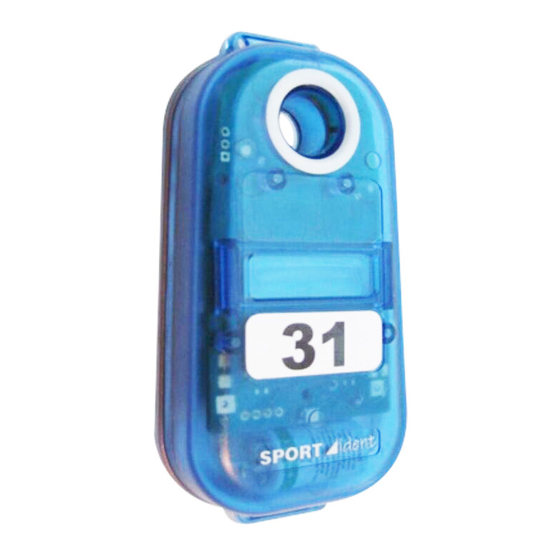

Battery exchange in BSF7 and BSF8 stations
All BSx7 and BSx8 control stations are equipped with high quality lithium batteries. The continuous
current in standby mode is extremely small. To avoid problems with the cable connector the batteries
of these control stations are soldered directly to the electronic board. The battery exchange requires
technical equipment and skills. Please read the following instructions to learn how the battery
exchange can be realized successfully.
BSx7 battery exchange
SPORTident GmbH • Arnstadt • Germany • www.sportident.com • support@sportident.com
Remove the 4 screws with a screwdriver.
Take care of the nuts falling off at the back
side.
The box is tightly sealed. Take a blunt knife or
a flat screwdriver to open the box carefully.
Remove the two screws that hold the board in
the housing. Lift the board with the hole first
and then move the board slightly out of the
housing. Take care of the cable if the station is
equipped with a cable output.
1/9
Advertisement
Related Manuals for SPORTident BSF7
Summarization of Contents
BSx7 Battery Exchange Procedure
Initial Disassembly Steps
Remove housing screws, open the sealed box, and detach the electronic board.
Battery Removal and Disposal
Cut battery shrink tube, desolder contacts, and handle battery disposal safely.
New Battery Installation and Soldering
Bend new battery lugs, check polarity, and solder to the board with lead-free tin.
Reassembly and Final Steps
Re-cover battery with shrink tube, reinsert board, clean seals, and close the case.
BSF8 Battery Exchange Procedure
Opening the BSF8 Housing
Carefully open the station box and remove the large rubber ring seal.
Battery Desoldering and Handling
Desolder battery contacts, heed explosion warnings, and manage disposal correctly.
New Battery Installation
Solder new battery, paying attention to polarity and using appropriate tools.
Sealing and Station Closure
Place rubber rings, apply silicone sealant, close the case, and let it harden.
Writing New Battery Parameters
Enabling Service Mode in Config+
Modify the Config+ shortcut properties to activate the service mode.
Updating Battery Data via Config+
Connect device, select 'New device battery', and update parameters like date and usage.
