- Page 1 AMIGO OPERATIONAL MANUAL Dex™, Dex Pro™, Dex Pro+™ Max™ and Max Pro™ Dex Pro™ Dex™ Dex Pro+™ Max Pro™ Max™ Serial Number: Date of Purchase:...
- Page 2 It is important to review operational and safety tips with your staff so they are prepared to safely operate Amigo carts. When Amigo Mobility founder Al Thieme invented the first motorized cart in 1968, his goal was to provide an affordable, durable and user-friendly mobility solution. We have more than a half century’s experience in providing top quality products.
- Page 3 • The individual’s feet must remain on the Dex™, Dex Pro™ and Dex Pro+™ platforms while carts are operational. • Use is restricted to one occupant who must remain standing on the platform while the Dex™, Dex Pro™ and Dex Pro+™are operational.
- Page 4 OPERATING THE CART Handle controls 1. Hand control lever. 2. HI/LO speed push buttons. 3. Battery indicator light. 4. ON/OFF key/Emergency stop. FIGURE 1 Driving To move forward, pull the right side of the hand control lever toward you (Figure 2).

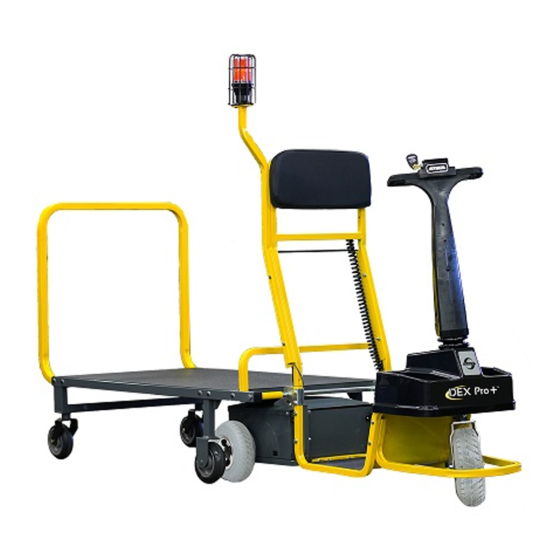

- Page 5 OPERATING THE DEX PRO+™ Attaching and detaching the trailer to Dex Pro+™ : First, bring the Dex Pro+™ to a complete stop on a flat surface. After the unit has come to a complete stop, the trailer can be attached.
- Page 6 Assuring long battery life & warranty protection Establish a regular procedure for charging a fleet of Amigo material handling carts to assure all are fully charged. A multiple outlet strip with a “POWER ON” indicator light could be used. Do not exceed outlet rating. Chargers draw a maximum of 1.5 amps each.
- Page 7 Charging precautions • Charge batteries fully in a dry location. • Clean any corrosion on the plug. • Examine cord periodically for cracking or damage. • If you remove the batteries from the cart, place them on a surface resistant to damage by acid fumes. “Breathing”...
- Page 8 PROCESSING CONTROLLER (MPC) OR ELECTRICAL CONNECTIONS MAY CAUSE CONTAMINATION OF ELECTRICAL CIRCUITRY, DAMAGE, MALFUNCTION OR PERSONAL INJURY. Fasteners replacement Use only Grade 8 (U.S.) or 12.9 DIN (metric) in all applications. For service and replacement parts, we recommend Amigo authorized parts. Grade: 12.9 Grade: 8 FIGURE 8...
- Page 9 (Figure 11). The Max™ and Max Pro™ have one serial number located on the bottom of the power base cover (Figure 11), and another on the left side of the handle enclosure, below the throttle (Figure 12). The Dex Pro+ trailer has one serial number located on the rear of the trailer deck (Figure 13).
- Page 10 DIAGNOSTIC CODES DIAGNOSTIC LIGHT LOCATION The Amigo controller has a built-in diagnostic feature that will cause the diagnostic LED lights (Figure 14) to flash a numeric code, indicating service issues to aid in diagnosis. When indicating a service problem, the diagnostic lights will flash, hesitate for a moment, and then flash again.
- Page 11 WARRANTY General warranty provisions Amigo Mobility International, Inc. (AMI) warranties its OEM products to the original purchaser and commences on date of shipment. The warranties on this page DO NOT cover the failure of any part or accessory due to: •...
- Page 12 Improving Lives Through Mobility® since 1968 AMIGO MOBILITY INTERNATIONAL, INC. 6693 Dixie Highway, Bridgeport, MI 48722-9725 Phone (989) 777-0910 • Fax (800) 334-7274 www.amigocarts.com © 2018 Amigo Mobility International, Inc. • Amigo ® is a registered trademark of Amigo Mobility International, Inc. 0116-12098-rev-e...
