Summary of Contents for MIB Scrambler
- Page 1 OWNERS MANUAL...
-
Page 2: Table Of Contents
Safety/Use: Folding and Unfolding your bike MiB E-Bike™ Range Controller and LCD Display Instruction 9/10/11/12 Assembly & Step By Step Instructions 13/14 Operation Instructions Maintenance Contact Us Applies to MiB E-Bikes, Commuter V1, Cruise V1, Discovery V1 and Scrambler V1... -
Page 3: Welcome To The Mib™ Family
We would like to start by thanking for choosing MiB and for putting your trust in our product, and in return, we aim to give you the best quality and service possible. -
Page 4: Warranty Information
12 months, please see below for more detail: Warranty on the Motor: MiB E-Bikes come with a 12 month warranty on all motors from the date of purchase. This warranty covers faulty motors only. The warranty becomes void if the motor has been tampered with or misused e.g. -
Page 5: General Information
Please follow inflation limits written on the tyre wall. Accessories/Component Changes: MiB recommends that you use a bike maintenance professional to install any accessories on your e-bike. If you do wish to install any accessories yourself, please... -
Page 6: Suspension
You must have your e-bike programmed to abide by the local laws. We here at MiB™ urge you to wear the proper safety gear, and abide by any applicable laws of the road. We will not be held liable for any damages or harm to bicycles and/or riders from rider decisions. -
Page 7: Folding And Unfolding Your Bike
Follow these simple steps to fold your electric bike STEP 1: Fold the Pedals (If you have folding pedals) Push the outside edge of the pedal Towards the frame and twist until the folding section is parallel to the frame. STEP 2: Fold the Handlebar and Stem Release the 'safety catch' mechanism on the stem by pushing it Then open the quick release lever by pulling away from the stem... - Page 8 STEP 3 Fold handlebars to the side of the bike frame as shown in the picture. (Pay attention not to force cabling. The cables .should fall in front or behind the stem when folded, not forced over the folding mechanism.) STEP 4 (frame) Release the 'safety catch' mechanism in picture 1 by lifting it upwards.
-
Page 9: Mib E-Bike™ Range

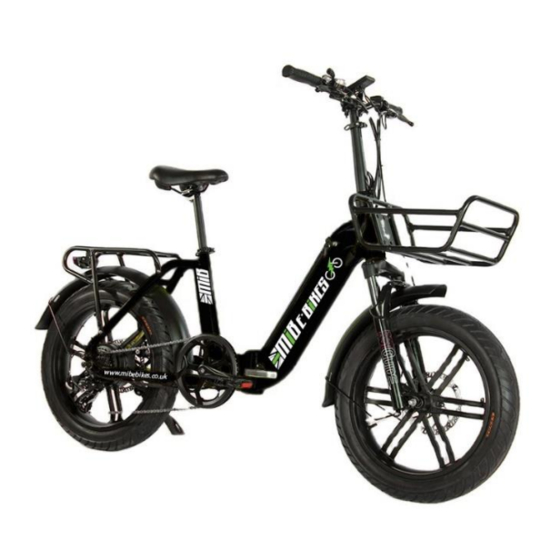

MiB Commuter MiB Cruise... - Page 10 MiB Discovery MiB Scrambler...
- Page 11 1. Button definition...
- Page 12 2. Function summary...
- Page 13 3. Setup summary...
-
Page 15: Assembly & Step By Step Instructions
1. Remove bicycle from box and remove all packaging including bubble wrap and foam coverings carefully. 2. Attaching your front wheel (please skip to step6 if you have a MiB Commuter, Cruise or Discovery) Locate your quick release mechanism unscrew the end cap removing the cap and spring. - Page 16 lever towards the wheel (This should be firm enough that it leaves a mark on your hand but so firm that you need to use two hands) 5. Attach your handle bars using the 5 bolts on your bike attached the handles bar mounting plate as seen below.
-
Page 17: Operation Instructions
The operation is quite simple - turn on the electrical component using the controller to the left on your handlebar and select your PAS level and start pedalling. You will have a LCD display up by the handlebars that will show your PAS level, battery charge level, and your speed in either mph or kmh. -
Page 18: Contact Us
We thank you again for choosing MiB E-Bikes™. We want you to have the most fun possible with your new e-bike, so if you have any problems, or want to know more about e-bikes and e-bike culture, please do not hesitate to contact us on: Email: mibheretohelp@mibebikes.co.uk...
