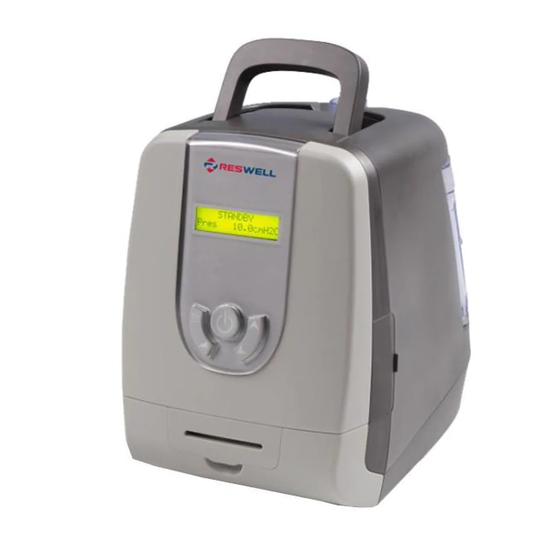

- Page 1 ResWell CPAP User Manual 0123 Beijing Rongrui-Century Science & Technology Co., Ltd.
-
Page 2: Table Of Contents
User Manual_ResWell_CPAP Contents IMPORTANT SAFEGUARDS ..........2 1. User’s Guide ................ 3 2. Symbols ................4 3. Technical Specifications..........6 4. Device Features ..............7 5. First Time Setup ..............8 6. Operating the Equipment ..........10 7. Using Humidifier Function ..........19 8. -
Page 3: Important Safeguards
User Manual_ResWell_CPAP IMPORTANT SAFEGUARDS CAUTIONS: Read and understand the entire user manual before operating this device. If you have any questions concerning the usage of this device, contact your home care provider or health care professional. ： WARNING This equipment is not used for life support. ... -
Page 4: User's Guide
1. User’s Guide Intended Use： RVC800 series are CPAP (Continuous Positive Airway Pressure) devices designed for the treatment of adult Obstructive Sleep Apnea (OSA) in patients weighing more than 30kg.The equipment is to be used only on the instruction of a licensed health care professional. Your home care provider will make the correct pressure settings according to your health care professional’s prescription. -
Page 5: Symbols
User Manual_ResWell_CPAP 2. Symbols The terms/acronym are defined as below: Terms/Acronym Definition Activity state Power on, airflow is open; the equipment is used for treatment. Apnea A condition marked by the cessation of spontaneous breathing. Automatic stop In case the mask is removed, this equipment will automatically discontinue the therapy. - Page 6 User Manual_ResWell_CPAP Screen Symbols: Symbol Explain Symbol Explain O/hPa Pressure unit Heating and humidification indication Time unit（minute） Heating and humidification indication Ramp time Ramp initial pressure Heating level Backlight control Leaking alert Time Alarm clock Alarm clock ring Unit selection Auto start Auto stop Mask fit...
-
Page 7: Technical Specifications
User Manual_ResWell_CPAP 3. Technical Specifications Environment： Operation Transport and Storage Temperature： +5℃～ +35℃ -20℃～ +60℃ 10% ～ 95%（ Non-condensing） Humidity： 10%～ 95%（ Non-condensing） Atmospheric 700hPa～1060 hPa. 700 hPa～1060 hPa. pressure ： ： CAUTIONS The equipment should be stored in draughty room free from corrosive gas or high magnetic fields. -
Page 8: Device Features
User Manual_ResWell_CPAP Pressure, Flow： Pressure Range：4～20 cmH O（in 0.5cmH O increments） Maximum Single Fault Steady State Pressure：30 cmH Pressure Tolerance： ±0.5 cmH Sound Pressure Level： <30dB (A) when the device is working at the pressure of 10cmH Test pressures Measured pressure patient connection port（hPa）... -
Page 9: First Time Setup
User Manual_ResWell_CPAP Equipment Features Explains AC Inlet Connect/disconnect the AC power Air Outlet Connect the flexible tubing(coaxial 22 mm) SD Card Slot Insert the micro SD Card Display Screen Display device setting parameter and work process information Filter Cap & Air Filter The air filter screens out normal household dust and pollens. - Page 10 User Manual_ResWell_CPAP 5.3 Install the Power Cord Connect the power cord. Plug the socket end of the power cord into the AC inlet on the back of the equipment. Plug the pronged end of the power cord into an electrical outlet. CAUTIONS: ...
-
Page 11: Operating The Equipment
User Manual_ResWell_CPAP 6. Operating the Equipment 6.1 Device Settings Name Explain Display screen All device settings will be displayed on the screen Start/Stop button To start/stop the airflow Heated To start/stop humidifier Humidifier button Ramp button When the airflow is turned on, use this button to restart the ramp cycle (which the low airflow pressure will gradually increase). - Page 12 User Manual_ResWell_CPAP 6.2 Function Description 6.2.1 Patient Operation Description（Applied to RVC830） Insert the plug making this equipment is powered on and in standby state. During this time the equipment interior parameter is default value, if the parameter does not meet the requirements, please adjust it yourself according to the doctor’s instructions.
- Page 13 User Manual_ResWell_CPAP CAUTION： Use designated Pulse Oximeter Equipment. (1)Ramp Time： Press 【Up】 / 【 Down】 to ramp time interface. The ramp time is the time taken from the ramp initial pressure increasing to the treatment pressure. Ramp time range is 0~60 minutes; the default setting is 5 minutes. The increment is 5 minutes.
- Page 14 User Manual_ResWell_CPAP (4)Backlight Setting： Press 【Up】 / 【 Down】 to backlight setting interface. Screen and button backlight has two modes:“Yes”means the backlight is always turned on. “Auto”means the backlight is at auto state, the backlight will be turned on when any button is pressed and will be OFF 1 minute later.
- Page 15 User Manual_ResWell_CPAP (8)Unit Selection： Press 【Up】/【Down】to unit selection interface where you could select unit “cmH O” or “hPa”. The default value is cmH (9)Auto Start： Press 【Up】 / 【 Down】 to auto start interface. Select “Auto”, when the equipment is at standby status, put on the nasal mask and breathe deeply, the device will start automatically.
- Page 16 User Manual_ResWell_CPAP (13)EPS Level: EPS can effectively lower the pressure to the setting level when the user exhales and return to the therapy pressure when inhales. Press 【Up】/【Down】 to the EPS level interface. Press【Ramp】, the grade value flickers. press 【Up】/【Down】to increase/decrease the grade level. The range is 0~3, press 【Ramp】to confirm the revise.
- Page 17 User Manual_ResWell_CPAP 6.2.2 Patient Operation Description（Applied toRVC820） Work State Indication Insert the plug making this equipment is powered on and in standby state. During this time the equipment interior parameter is default value, if the parameter does not meet the requirements, please adjust it yourself according to the doctor’s instructions.
- Page 18 User Manual_ResWell_CPAP ： NOTE 【 】 · Press Heated Humidifier to start/stop heating function, if you start heating function, heating and humidification indication would be displayed on the screen. · The device remembers the heating level setting for the future use. ·...
- Page 19 User Manual_ResWell_CPAP ： NOTE 【 】 【 】 · At standby state, press the Ramp and hold it, then press the Heated Humidifier hold the two keys for 5 seconds to activate the alarm clock function. The appears on the screen when the alarm clock function is activated. 【...
-
Page 20: Using Humidifier Function
User Manual_ResWell_CPAP 7. Using Humidifier Function 7.1 Fill Water Using the water tank can add humidity of the airflow, allowing the patient to breathe more comfortably, default setting is 3. Open the water tank, and then put purified water into water tank to the maximum scale marks. ：... - Page 21 User Manual_ResWell_CPAP 7.3 Start Heating Connect the flexible tubing with the outlet port on the water tank. Press 【 Heated Humidifier 】 , then the screen displays the heating and humidification symbol. The ideal humidity setting depends on room temperature and humidity. You can adjust this setting at any time. Please check the CPAP User Manual before adjusts the humidifier setting.
-
Page 22: Routine Use
User Manual_ResWell_CPAP 8. Routine Use 8.1 Connecting the Circuit CAUTIONS: Examine the flexible tubing before use the tubing. And replace damaged tubing. Install the mask and the headgear following the instructions. Start up running and humidifying, put on the mask and headgear and breathe normally. 8.2 Adjusting the Circuit a）... - Page 23 User Manual_ResWell_CPAP ： CAUTIONS Do not let any fluid into the equipment (equipment case, air inlet port, filter or any other port of equipment.) Disconnect the flexible tubing and mask from the equipment, wash the flexible tubing with warm water and a mild detergent gently, rinsing the tubing thoroughly and let it air dried.
-
Page 24: Service
User Manual_ResWell_CPAP 10. Service The equipment does not require routine servicing. The life expectancy of products and accessories are shown as below: Name Life Expectancy CPAP 5 years Mask See the mask instructions Tubing See the tubing instructions WARNING: If the equipment malfunctions, contact your home care provider immediately. -
Page 25: Troubleshooting
User Manual_ResWell_CPAP 12. Troubleshooting The table below lists common problems you may have with the equipment and possible solutions to those problems. If none of the corrective actions solve the problem, contact your home care provider. Problems Reasons Solutions When powered on , There is no power Check socket whether there is electricity, make sure there... -
Page 26: Electromagnetic Compatibility
User Manual_ResWell_CPAP 13. Electromagnetic Compatibility Guidance and manufacturer’s declaration – electromagnetic emission The model RVC800 is intended for use in the electromagnetic environment specified below. The customer or the user of the model RVC800 should assure that it is used under following environment. - Page 27 User Manual_ResWell_CPAP Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The model RVC800 is intended for use in the electromagnetic environment specified below. The user of the model RVC800 should assure that it is used under following environment. IEC 60601 test Compliance Electromagnetic environment...
- Page 28 User Manual_ResWell_CPAP Guidance and Manufacture’s Declaration – Electromagnetic Immunity The Model RVC800 is intended for use in the electromagnetic environment specified below. The user of the Model RVC800 should assure that it is used under electromagnetic environment. Immunity 60601 Compliance Electromagnetic Environment - Guidance test test level...
- Page 29 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. If you have any question, please contact us： Beijing Rongrui-Century Science and Technology Co., Ltd. Tel：(86 10) 51658220-158 Fax：(86 10) 58711218-125 / 51658220-125 www.reswell.com.cn info@reswell.com.cn...
