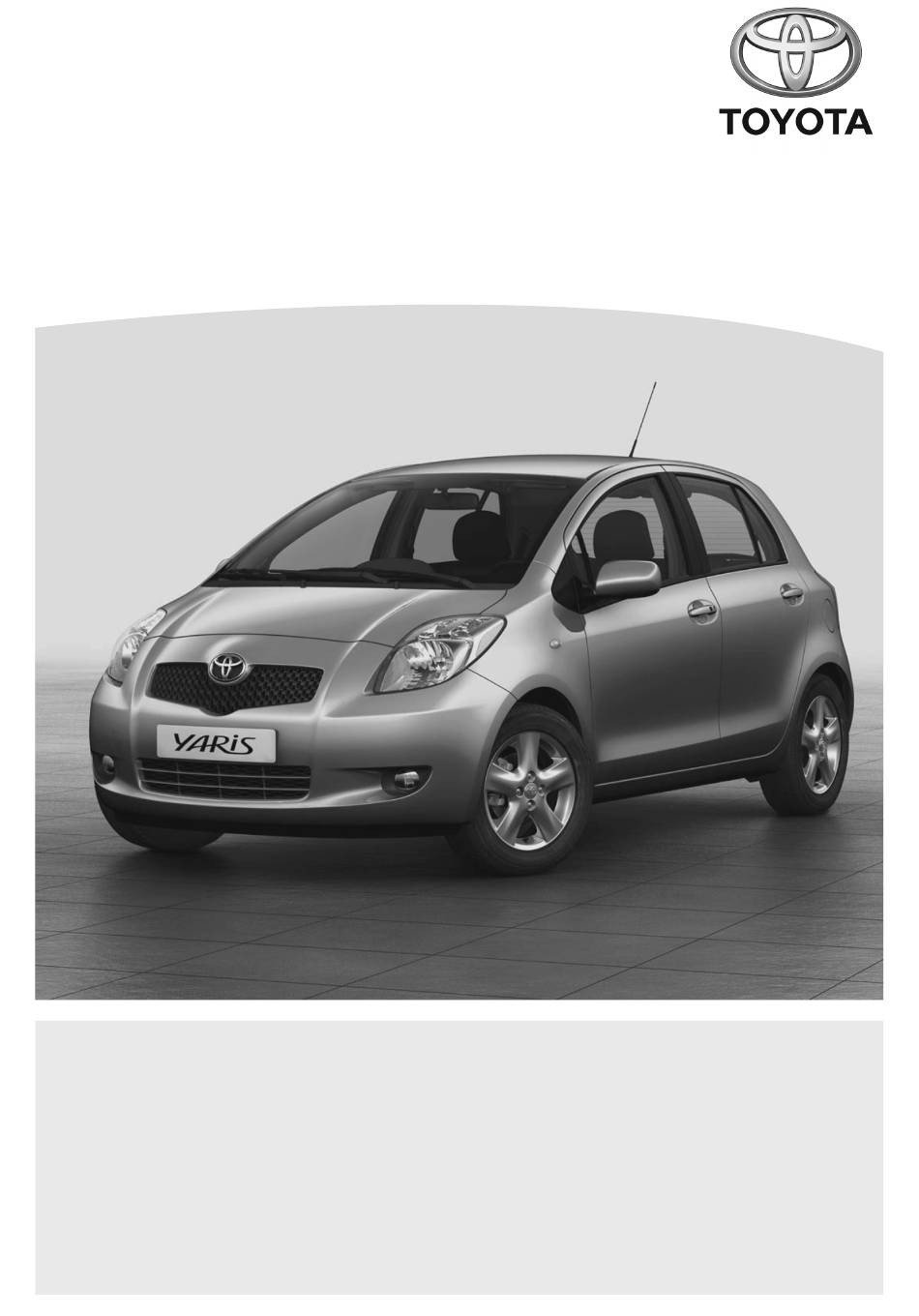

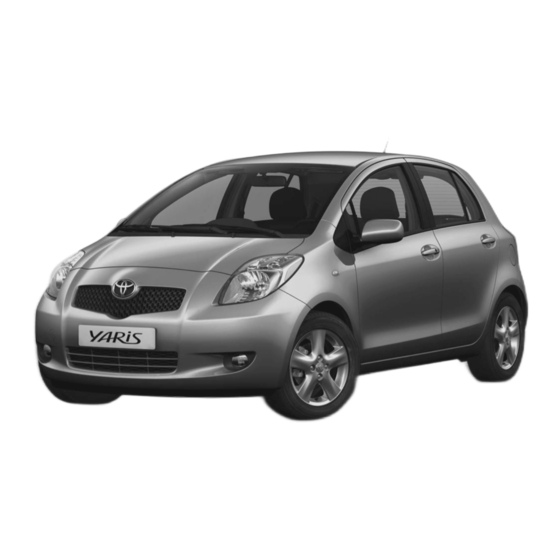

Yaris
TNS310 (Traffic) Plus
LHD Einbauanleitung
LHD installation instructions
LHD instructions d'installation
Model year:
Vehicle code: **P90L-****KW
Part number TNS310 Plus: • Bracket: PZ425-B0330-60
Part number TNS310 Traffic Plus: • RDS-antenna kit: PZ445-T9281-00
Manual ref. n
2005
• Sub wire harness No 1: 08673-64801
• Sub wire harness No 2: 08673-64800
: AIM 000 488-2
o
• RDS-tuner kit: PZ445-T9331-00
Advertisement
Table of Contents
Related Manuals for Toyota TNS310 Plus 2005
Summarization of Contents
Vehicle Disassembly Procedures
Apply Tape & Remove Center Cluster Panel
Apply protective tape to shaded areas and remove the center cluster panel.
GPS Antenna Installation
Foam Tape Cut Procedures
Cut foam tape into specific sizes for routing and protection.
Wire Harness Installation
Splicing Connector Procedures
Procedures for connecting wire harnesses using splicing connectors securely.
Computer Installation
Prepare Floor Carpet & Connect Computer
Slit floor carpet, connect GPS antenna, harness, and bracket to computer.
RDS-Antenna Wire Installation
Cut Antenna Lip & Route Wire
Cut the RDS-antenna lip and tuck the wire through the headliner and pillar.
RDS Antenna Installation
Clean Surface & Fit Antenna Strip
Clean the front window surface and fit the RDS-antenna strip.
RDS Tuner Installation
Prepare Area & Attach Tuner
Fold carpet, route wire, and attach tuner to navigation ECU.
Post-Installation Inspection
Inspect Wiring & Check Harness Security
Inspect wiring for abnormalities and check harness security and tightness.
Operation Check
Connect Battery & Insert DVD-ROM
Connect battery, turn ignition, and insert the DVD-ROM into the navigation ECU.
Reassembly and Final Checks
Reinstall Parts & Verify Functions
Reinstall all parts correctly and perform final checks on vehicle functions.
