KAEL ASTRO-03 Manual

ASTRO-01 / ASTRO-03
ASTRO-11 / ASTRO-13
Astronomical
Time Relay
Area of Usage:
- Park, garden and farm irrigation
- Street, park, garden illuminations
- ATM ,store window, billboard illuminations
General:

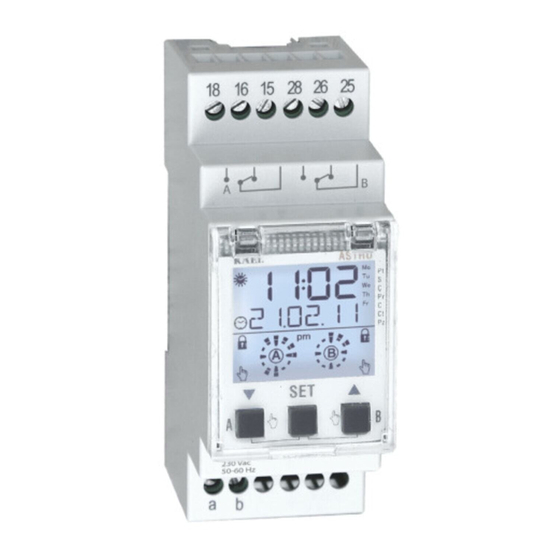

ASTRO is a digital time switch that calculates the sunset and sunrise
times by using coordinates and real time clock. It operates according to
the program setting and it has no need for a photocell sensor. Device
could be used as astronomical or digital time switch.
ASTRO has two reserves to protect the real time clock and calender
against power outage.
For long term reserve there is CR2032 battery. If the device is powered,
battery life is approx. 5 years. When the battery life is expired,the user is
able to replace the battery easily.
Super capacitor is used for short time power failures. It supplies the
device for 3-7 hours. In this case battery is not used, so battery level is
conserved.
NOTE1: Before commissioning the device, please insert the battery into
the battery compartment .
NOTE2: If the device is not powered, ASTRO automatically enters power
save mode to conserve the battery life. When the device is in this mode
LCD screen is turned off. The screen would turn on when pressing any
button and so the user would be able to change the settings and
programming the device manually. After 15 seconds of inactivity, the
screen would be turned off again.
NOTE3: 4 preset programs are available on the device.
Program 1 : Relay A
Program 2 : Relay A
Program 3 : Relay B
Program 4 : Relay B
Push in this direction and
remove the battery cover
Insert the battery with
the positive(+) side facing up
as shown in the figure.
KAEL ASTRO Software
CON-03
Usb to infrared data transmitter
Astro Sunset ON
Astro Sunrise OFF
Astro Sunset ON
Time 00:00 OFF
Make sure the battery is seated
correctly in the battery slot.
Replace the battery cover.
User replaceable battery
2 Relay Output (8A)
2 Relay Output (16A)
No Backlight ; ASTRO-01 & ASTRO-03
Backlight ; ASTRO-11 & ASTRO-13
Easy to use with English menu
Real time clock and calender
24 programs for ASTRO-01 / ASTRO-11
100 programs for ASTRO-03 / ASTRO-13
Astronomical and/or time switching function
Automatic or manual summer/winter time option
ON/OFF switching times
Easy to program with PC Software
Optical loading the programs with CON-3 Device
Graphical simulation program for both outputs
Automatic sunrise/sunset calculation using coordinates
and time
Offset for adjustable programming of sunrise/sunset
times
Quiet mode
2 Manual modes
PIN code protection
Screen Descriptions:
Astronomical mode
Date
Timer mode
Lock function
Quiet mode
Manual mode
Relay A
12
Clock faces represent output states of the relay
11
1
contacts during current day.
10 2
Before midday, am icon appears.
3
9
After midday, pm icon appears.
8 4
There are two clock faces, on the left for Relay A
5
7
and on the right for Relay B.
6
Warnings:
- The connection of device must be done by authorized technical
service staff according to the wiring diagram.
- Before making the connections to device's terminals, please be
sure that there is no voltage across the cables or terminals. Also be
sure that the panel is de-energized.
- Before cleaning the device, please be sure that it is de-energized
and use only dry tissue-paper to clean it. Water or any other
chemicals used for cleaning may harm the device
- Before commissioning the device, please be sure that the terminal
connections are made exactly
the same as in the connection diagram
- To protect the device, please mount it on DIN rail in a panel.
- Contact your authorized dealer, if a problem occurs with your
device.
Following the precautions is to prevent the users from physically and
spiritual damage. The manufacturer is not responsible for any injuries
or damages due to violation of the warnings.
Button Functions:
ASTRO is an easy to use device with 3 buttons.
▼ : Press to move between menus or decrease the
related parameter.
▲ : Press to move between menus or increase the
related parameter.
SET : Press to go into the menu or save the related
parameter.
▼
▲:
Press two buttons at the same time to go back to the pre-menu screen
Press two buttons long at the same time to return to the main screen.
(ASTRO-01 & ASTRO-03)
(ASTRO-11 & ASTRO-13)
Clock
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Lock function
Quiet mode
Manual mode
Relay B
www.kael.com.tr 1
