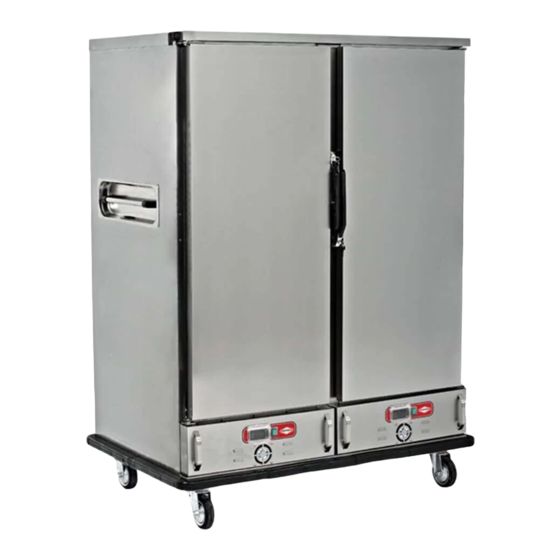

Cold banquet trolley
Hide thumbs

Advertisement

Table of Contents

COLD BANQUET TROLLEY
Kasap Tip Dik Buzdolapları
CONTENTS
Page
2
Page
3
Page
3
Page
4
Page
4
Page
4
Page
5
Page
6
Page
7
Page
8
Page
9
Page
17
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMP.BQ4-S and is the answer not in the manual?

Questions and answers

Related Manuals for EMPERO EMP.BQ4-S

Summary of Contents for EMPERO EMP.BQ4-S

  • Page 1: Table Of Contents

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...

  • Page 2: Ageneral Information

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

    Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Cold Banquet Trolley,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.BQ1-S 720x885x1830 720x900x1925 EMP.BQ2-S 1360x885x1830 1400x900x1925 EMP.BQ3-S 720x885x1250 720x900x1370 EMP.BQ4-S...

  • Page 4: A3 Transportation

    COLD BANQUET TROLLEY TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.

  • Page 5: Csafety Instructions

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ...

  • Page 6: Doperation

    COLD BANQUET TROLLEY OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Down Arrow Button B : Up Arrow Button C : Digital Screen D :Program Setting Button E : Menu Button F : ON/OFF Button *Operating; • Be sure that the inside of the trolley is clean and the trolley is constant to where it is before starting any process.

  • Page 7: Ecleaning & Maintenance

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Always turn off the appliance and disconnect from the power supply before cleaning. • Clean the inside of appliance after every use. •...

  • Page 8: Ftroubleshooting

    COLD BANQUET TROLLEY TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check if the thermostat contol panel operates or not. THE APPLIANCE DOESN’T COOL Fan may have error.In this situation inform the service.

  • Page 9: Gspare Part List-Exploding Drawing

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ1-S...
  • Page 10 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ1-S PRODUCT NAME P.CODE BASE FRAME Y.EMP.BQ1-S.001 BUFFER Y.EMP.BQ1-S.002 WHEEL Y.EMP.BQ1-S.003 HANDLE Y.EMP.BQ1-S.004 Y.EMP.BQ1-S.005 HINGE Y.EMP.BQ1-S.006 GASKET Y.EMP.BQ1-S.007 LID HANDLE Y.EMP.BQ1-S.008 DIGITAL THERMOSTAT Y.EMP.BQ1-S.009 BUTTON (ON/OFF) Y.EMP.BQ1-S.010 CONDANSER Y.EMP.BQ1-S.011...
  • Page 11 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ2-S...
  • Page 12 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ2-S PRODUCT NAME P.CODE BASE FRAME Y.EMP.BQ2-S.001 BUFFER Y.EMP.BQ2-S.002 WHEEL Y.EMP.BQ2-S.003 HANDLE Y.EMP.BQ2-S.004 Y.EMP.BQ2-S.005 HINGE Y.EMP.BQ2-S.006 GASKET Y.EMP.BQ2-S.007 LID HANDLE Y.EMP.BQ2-S.008 DIGITAL THERMOSTAT Y.EMP.BQ2-S.009 BUTTON (ON/OFF) Y.EMP.BQ2-S.010 CONDANSER Y.EMP.BQ2-S.011 FAN WING...
  • Page 13 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ3-S...
  • Page 14 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ3-S PRODUCT NAME P.CODE BASE FRAME Y.EMP.BQ3-S.001 BUFFER Y.EMP.BQ3-S.002 WHEEL Y.EMP.BQ3-S.003 HANDLE Y.EMP.BQ3-S.004 Y.EMP.BQ3-S.005 HINGE Y.EMP.BQ3-S.006 GASKET Y.EMP.BQ3-S.007 LID HANDLE Y.EMP.BQ3-S.008 DIGITAL THERMOSTAT Y.EMP.BQ3-S.009 BUTTON (ON/OFF) Y.EMP.BQ3-S.010 CONDANSER Y.EMP.BQ3-S.011 FAN WING...
  • Page 15 COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING EMP.BQ4-S...
  • Page 16 COLD BANQUET TROLLEY SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları PRODUCT CODE: EMP.BQ4-S PRODUCT NAME P.CODE BASE FRAME Y.EMP.BQ4-S.001 BUFFER Y.EMP.BQ4-S.002 WHEEL Y.EMP.BQ4-S.003 HANDLE Y.EMP.BQ4-S.004 Y.EMP.BQ4-S.005 HINGE Y.EMP.BQ4-S.006 GASKET Y.EMP.BQ4-S.007 LID HANDLE Y.EMP.BQ4-S.008 DIGITAL THERMOSTAT Y.EMP.BQ4-S.009 BUTTON (ON/OFF) Y.EMP.BQ4-S.010 CONDANSER Y.EMP.BQ4-S.011 FAN WING...

  • Page 17: Helectric Circuit Schema

    COLD BANQUET TROLLEY Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA EMP.BQ1-S-BQ3-BQ4 Large lighted 0-1 Compressor and Condenser Inner air circulation Terminal Switch...
  • Page 18 COLD BANQUET TROLLEY ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.BQ2-S Large lighted 0-1 Compressor and Condenser Inner air circulation Terminal Switch...
