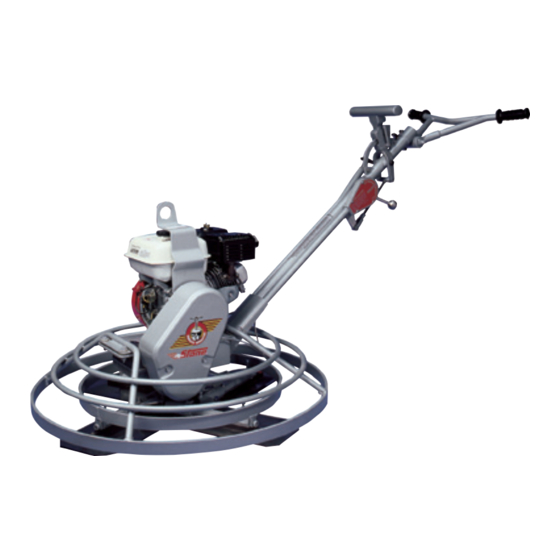

- Page 1 OPERATOR MANUAL MODELS: CF24E, CF364, CF464, CF484 4 Blades POWER TROWEL A 100% employee-owned American manufacturer REVISION: E 2/2003 56353...
-
Page 3: Table Of Contents
Table of Contents CF Power Trowel TABLE OF CONTENTS .................... 3 FOREWORD ......................4 LIMITED WARRANTY ..................... 5 TECHNICAL DATA ....................6-10 Specifications ......................6 Torque Chart - Imperial ....................7 Torque Chart - Metric ....................8 Hardware Identification ....................10 HEALTH &... -
Page 4: Foreword
Manufacturer:___________________________ accidents. Battery Type: ___________________________ Stone Construction Equipment, Inc. is not liable for the function of the machine when used in an improper Battery S/N: ____________________________ manner and for other than the intended purpose. -
Page 5: Limited Warranty
No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier within fifteen days. Effective July 2002. Stone Construction Equipment, Inc. • 8662 Main Street, P. O. Box 150 •... -
Page 6: Technical Data
Technical Data Trowels – Specifications STONE STONE STONE STONE MODEL CF24E CF484 CF364 CF464 Dimensions 130lbs. 275 lbs. 160 - 185 lbs. 180 - 225 lbs. Operating Wt. (kg) (59) (124.7) (72.7 - 84) (82 - 102.3) 48" (122) 24" (61) Diameter (cm) 36"... - Page 7 Machine Sound & Vibration Mea- Technical Data surements/Lubrication Specs Sound and Vibration Measurements Sound Pressure Values as measured are per the following: Noise 1 Model/Configuration Sound Pressure CF364 CF464 CF484 5.5 Honda 8 Honda 11 Honda 92dBA 93dBA 93dBA at operator’s ear RMS acceleration on the handle were measured per the following: 2 RMS 8.27...
-
Page 8: Torque Chart - Imperial
Technical Data Torque Chart - Imperial SAE GRADE 5 SAE GRADE 8 Coarse Thread Coarse Thread SIZE PLATED SIZE PLATED 1/4 – 20 (.250) 6 ft. lbs. 8 Nm 1/4 – 20 (.250) 9 ft. lbs. 12 Nm 5/16 – 18 (.3125) 13 ft. - Page 9 Technical Data Torque Chart - Metric Property Class 8.8 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. Property Class 10.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft. lbs. ft. lbs. 1000 Property Class 12.9 ZINC-PLATED Coarse Thread Fine Thread SIZE ft.
-
Page 10: Hardware Identification
Technical Data Hardware Key - 10 -... -
Page 11: Health & Safety
Health & Safety Safety Training SAFETY These machines are designed to carry out the function of finishing concrete surfaces. If used correctly, they will provide an effective and safe means of finishing and meet the appropriate performance standards. It is essential that the operator of the machine is ad- equately trained in its safe operation, be authorized to operate it, and have sufficient knowledge of the machine to ensure that it is in full working order, before being put... -
Page 12: Safety Precautions
Health & Safety Safety Precautions • Before using this equipment, study the entire owner's manual to become familiar with its operation. Do not allow un- trained or unauthorized personnel, especially children, to WARNING operate this equipment. Use only factory authorized parts for service. - Page 13 Health & Safety Safety Precautions • Keep the patented Dyna-Clutch safety system in adjustment and good operating condition at all times. Do not operate the trowel if it does not work properly. Out of control Trow- els can cause serious personal injury and damage to fresh concrete surfaces.
-
Page 14: Introduction
Intro/Operating Principle/Deliv- ery Checks/Before Starting/ Introduction Determining the Right Machine Congratulations on your purchase of Stone • Check the general condition of the Smooth Operator™ Power Trowels! You've equipment--has it been damaged during made an excellent choice! The Power Trowels... -
Page 15: Standard Features
Standard Features/Preparation Introduction for Service STANDARD FEATURES PREPARATION FOR SERVICE Your new CF Power Trowel comes standard with many features to enhance productivity, BEFORE STARTING-- Your new CF Power performance and safety. Listed below are just a Trowel has been assembled and tested at the few of these features. -
Page 16: Location And Use Of Controls
Introduction Location and Use of Controls mately 1/4 turn. WHENEVER HANDLING GASOLINE. LOCATION AND USE OF CON- C - DYNA-CLUTCH LEVER - this is a patented feature which acts as a safety TROLS device to stop the trowel from spinning out of control if the operator lets go of the Before operating this trowel, it is important to handle. -
Page 17: Adjust Tilt Lock Nut
Adjust Tilt Knob Lock Introduction Nut/Linkage Rod TO ADJUST TILT LOCK NUT TO ADJUST ProPitch™ LINKAGE --The tilt lock nut is located on the tilt rod assembly. --The linkage rod is fastened to a yoke end Using the lifteye, raise the trowel with an and a swivel by two nuts. -
Page 18: Operations
To Start/To Shut Off/Inital Op- eration/Floating Operation/ Operations Finishing Operation INITIAL OPERATION TO START-- --With engine started Make sure the Dyna-Clutch lever as instructed previously and at operating tem- is in the STOP position. If it is not, push the perature, adjust speed to about half throttle. -
Page 19: Maintenance
Maintenance, Lubrication, Ad- justment/Lubrication/Trowel Maintenance Gearcase/Arm Bearing These oil requirements are general guidelines only, MAINTENANCE, LUBRICATION for specific requirements consult the ENGINE AND ADJUSTMENT MANUAL included with the unit. To get long and trouble free service from your new CF Power Trowel, it is essential to perform peri- TROWEL GEARCASE odic maintenance on engine and machine mecha- nisms. -
Page 23: California Proposition 65
CALIFORNIA PROPOSITION 65 WARNING: Operation of this equipment and/or engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. - Page 24 The Way It Ought To Be. Stone Construction Equipment, Inc. P.O. Box 150, Honeoye, New York 14471 Phone: (800) 888-9926 Fax: 585-229-2363 e-mail: sceny@mcimail.com www: stone-equip.com A 100% employee-owned American manufacturer © 1984 Stone Construction Equipment, Inc. Printed in U.S.A.
