Summarization of Contents
STEP 1
STEP 2
Assembly instructions for connecting panels A to sides C and D using screws and an Allen key.
STEP 3
Instructions for inserting plastic bolts into cot slots, with a note on cover usage.
STEP 4
Instructions for pushing the drawer cover F into the frame, indicating its orientation.
STEP 5
Instructions for inserting part E into the frame, with options for bottom height adjustment.
STEP 7
Instructions for inserting the assembled drawer (Part G) into the cot runners.
STEP 8

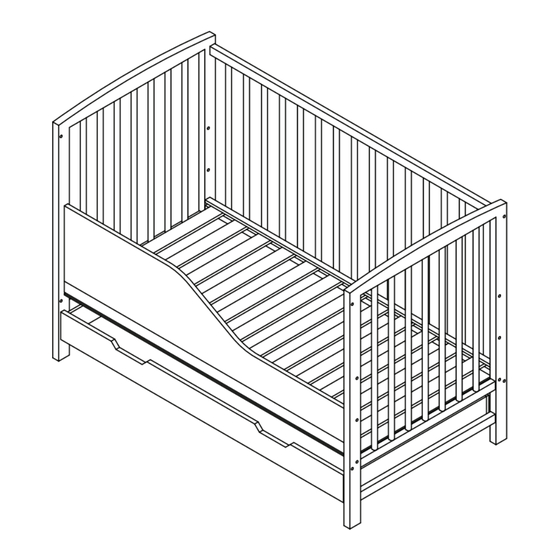

Indicates that the main cot bed assembly is complete.
Drawer
STEP 1
First steps in drawer assembly, connecting parts I and L with hardware.
STEP 2
Continues drawer assembly, connecting parts J and L with hardware and Allen key.
STEP 3
Instructions for fitting part N into the drawer frame.
STEP 4
Instructions for attaching part I to the drawer structure using hardware.
STEP 5
Final step of drawer assembly, indicating completion.
Board barrier
Remove side panel
Instructions on how to remove a side panel using screws and an Allen key.
STEP 10
Instructions for pushing the board barrier (Part H) into the frame, with placement options.
STEP 11
Instructions for securing the board barrier (Part H) to the cot sides using screws and Allen key.
STEP 12
Indicates that the board barrier installation is complete.
