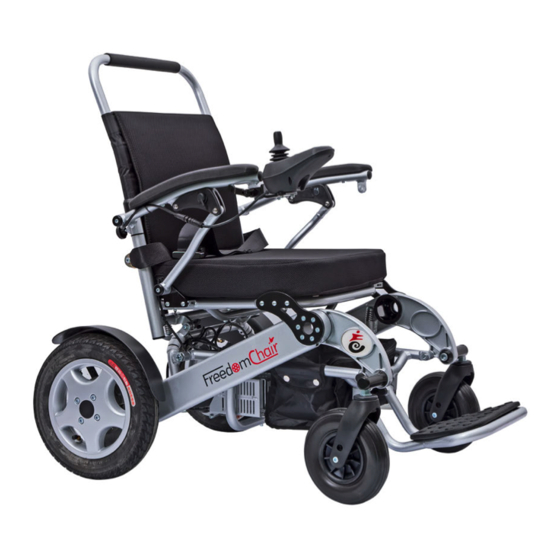

FreedomChair A08L Operating Manual
  1. Manuals
  2. Brands
  3. FreedomChair Manuals
  4. Wheelchair
  5. A08L
  6. Operating manual

FreedomChair A08L Operating Manual

Hide thumbs

Advertisement

Table of Contents

Operating Manual
Please read these Operating Instructions before using your FreedomChair
Issue 20200529
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A08L and is the answer not in the manual?

Questions and answers

Related Manuals for FreedomChair A08L

Summary of Contents for FreedomChair A08L

  • Page 1 Operating Manual Please read these Operating Instructions before using your FreedomChair Issue 20200529...
  • Page 2 PRECAUTIONS Please read the instructions before using the chair in order to operate and maintain it properly. PLEASE PAY ATTENTION TO THE FOLLOWING CONTENT WITH THESE WARNING SYMBOLS. FAILURE TO TAKE PRECAUTIONS COULD RESULT IN SERIOUS INJURIES. IT CAN ALSO DAMAGE OR DECREASE THE LIFE EXPECTANCY OF THE CHAIR.

  • Page 3: Table Of Contents

    Contents Introduction........................4 Contents of Packaging....................5 Routine Checks by the User ..................6 Opening/Folding the Chair..................7 Fitting Anti-Tip Wheels....................8 Installing the Joystick Controller................9 Lifting the Armrest......................10 Manual Operation......................10 Joystick Operation.....................11 Charging Instructions...................12-13 Transport & Storage....................13 Safety Guide......................14-20 Appendix........................21...

  • Page 4: Introduction

    You will find the operation and care of your FreedomChair very simple and easy, but should you have any questions, please contact the reseller from where you purchased the chair.

  • Page 5: Contents Of Packaging

    Contents of Packaging Your FreedomChair will arrive carefully packaged in a cardboard box. We suggest that two people are available to remove the packaging and set up the FreedomChair for the first time. 1. Carefully open the top of the box then turn the box on its side for easier removal of the contents.

  • Page 6: Routine Checks By The User

    • Any straps securing seat or backrest covers are secure and in good condition without any tears or cuts in the fabric. • If your FreedomChair is fitted with pneumatic rear tyres, keep them inflated to a recommended pressure of 40 psi or 2.75 Bar.

  • Page 7: Opening/Folding The Chair

    4. Opening the Chair Hold backrest bar A) Unfolding - Step 1 Hold the top of the backrest and pull up while holding down on the seat to expand the chair and complete the opening. Hold down seat to expand B) Unfolding - Step 2 Lock the safety clasp.

  • Page 8: Fitting Anti-Tip Wheels

    5. Fitting Anti-Tip Wheels NOTE: Applies to Models A08 & A08L only Supplied with the FreedomChair model A08 & A08L are a pair of Anti-Tip Wheels. These are used with the chair to minimise it tipping backwards. * They should be fitted to the chair at all times when it is being used.

  • Page 9: Installing The Joystick Controller

    Installing the Joystick Controller Step 1 Insert the controller joystick into the armrest tube and tighten the knob to fix it in position. Step 2 Connect the wire from the Joystick to the connector which is secured under the armrest, taking care to line up the pins properly so that they do not get bent, broken or damaged.

  • Page 10: Lifting The Armrest

    Lifting the Armrest Under each armrest is a rotary knob which can be turned to release or secure the armrest lock. This allows the armrest to be raised for easy side transfers or to clear the joystick when pulling up to a table. Manual Mode Operation The chair can be pushed by an Attendant in freewheel mode.

  • Page 11: Joystick Operation

    • Speed level indicator. All lights on indicate that the maximum speed has been set. • Horn Button: sounds when the user presses the button. Lock Function - immobilising the wheelchair FreedomChair can be immobilised to prevent misuse. To Immobilise the Wheelchair (Lock the Joystick) 1. Press Power button to turn on and release 2.

  • Page 12: Charging Instructions

    Charging Instructions The battery requires charging once every three months, otherwise it could lead to over-discharge damage. Charging Method 1 (Joystick charging): 1. Turn the power OFF using the green button on the Joystick. 2. Plug the charger's power cable into the battery charger and then into a mains wall outlet.

  • Page 13: Transport & Storage

    FreedomChair is shown in the Appendix section. FreedomChair batteries can easily be removed from the chair. This may be required before the chair is stored in the hold of an aircraft for example, or more commonly if the batteries require charging in a different location from the chair.

  • Page 14: Safety Guide

    Safety Guide • The user must be of sound mind and judgment. • The user must read this User Manual before operating the chair and get familiar with its components and features. • The user should practice driving skills with assistance on open, flat, and safe grounds before normal use.
  • Page 15 • Turning To turn, push the joystick to the left or right. and be aware of what is to the left or right to avoid collisions. • Driving on bends Lightly push the joystick in the direction of the bend. Practice speed control. •...
  • Page 16 • Driving Uphill Keep your body tilted forward to keep the center of gravity stable. Drive slowly. We recommend the slope be less than 9 degrees for optimal performance. • Entering & Exiting a passenger lift The user should pay attention to the opening and closing intervals of the lift door to avoid collisions while entering or exiting the lift.
  • Page 17 • Driving over train/railroad tracks Don’t cross railroad/train tracks alone, we highly recommend you should be accompanied by an Attendant. • Driving on a steep incline could result in the chair rolling over or a serious accident. • Driving over a high curb/step (more than 3cm) could result in in the chair rolling over or a serious accident.
  • Page 18 • We recommend that the user has assistance getting out of and into the chair. Move the armrests and footrest out of the way before entering and exiting the chair. • Do not attempt to repair the product on your own. It may cause permanent damage to the chair and could put yourself at risk of injury or death.
  • Page 19 • Do not hose down the chair with water or any liquids. It will cause damage to the chair and could also harm or endanger your personal safety. To clean the chair, wipe down with a damp cloth. • Do not leave the battery or electrical components of the chair in a car that is exposed to direct sunlight.
  • Page 20 • Do not store the battery in direct sunlight. Please store in a dry, cool, and ventilated area that children don’t have access to. Also, do not store in a severely cold environment. It will damage and decrease the life of the battery.

  • Page 21: Appendix

    Appendix Warranty Part Coverage Remarks Frame 2 Years Non-deliberate damage Motor 2 Years Non-deliberate damage 1 Year Non-deliberate damage Battery 1 Year Non-deliberate damage Joystick 1 Year Non-deliberate damage Wearable Parts 3Months Non-deliberate damage Retailer Details UK & Ireland Distributor Proactive Mobility Ltd Silverstone House Kineton Road...
  • Page 22 Specifications Details for each model of FreedomChair are shown in separate tables. A06 Specifications Net weight of chair 22.8kg Maximum weight capacity 245lbs/110kg Seat dimensions 17" x 17"/43cm x 43cm Drive wheels 10" PU tyre - Front wheels 8" PU tyre...
  • Page 23 Specifications (continued) Details for each model of FreedomChair are shown in separate tables. A08 Specifications Net weight of chair 26.7kg Maximum weight capacity 350lbs / 160kg Seat dimensions 19” x 17.5” / 49cm x 44cm Drive wheels 10" PU tyre - Front wheels 8" PU tyre Driving Range With 1 battery: up to 9 miles/15km –...
