Summary of Contents for TRUGLO TG7630R
- Page 2 TRUGLO, Inc. POWER OUTPUT<5mw 525 International Parkway WAVELENGTH 500-540nm Richardson, Texas 75081 Ph: 972-774-0300 Red Laser: Fx: 972-774-0323 TG7630G / TG7630R TRUGLO, Inc. POWER OUTPUT<5mw 525 International Parkway RICHARDSON, TEXAS 75081 E-mail: contactus@truglo.com MADE IN CHINA WAVELENGTH 630-670nm COMPLIES WITH 21 CFR 1040.10 AND 1040.11 W ARNING This product is not a toy.
- Page 3 NEVER look into or stare at the laser beam or its reflection. NEVER point the laser beam at a person or animal. NEVER shine the laser at reflective surfaces. NEVER point the laser beam at any type of moving vehicle, including aircraft. Such actions are unlawful and extremely dangerous.
- Page 4 W ARNING Before you begin, always make sure the weapon is un-loaded and safe to handle. W ARNING Always practice safe handling techniques with any weapon. W ARNING Once mounted, the weapon will be pointed in the direction of anything illuminated by the laser. W ARNING Never point the laser at a target you do not intend to shoot.

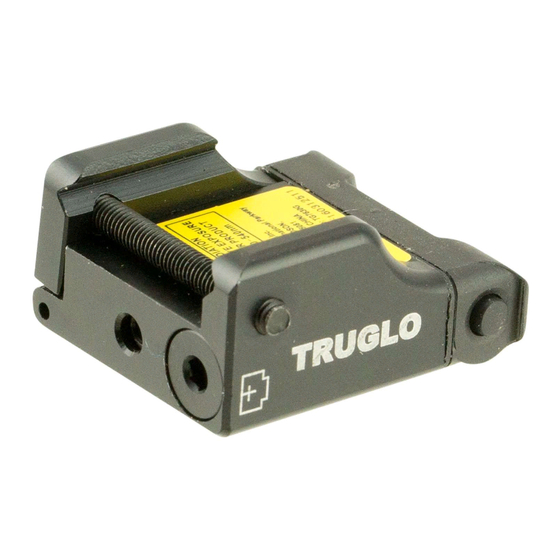

- Page 5 On / Off On / Off • Press either of the ambidextrous buttons to turn the laser on/off. • The unit will automatically turn off after Battery Compartment approximately 5 minutes of use to conserve Windage battery power. Adjustment Laser On / Off Pulse Mode Laser Aperture...
- Page 6 Mounting CAUTION: CHECK TO MAKE SURE YOUR WEAPON IS UNLOADED. • Your laser sight has integrated mounting rails that attach to a standard Weaver-style base or Picatinny rail. • Loosen the mounting screw with the included 2.5mm allen wrench. Set the laser sight onto the mounting base of the weapon.
- Page 7 Battery • Your laser sight includes LR626 1.5V Button Cell batteries (green laser requires 6 batteries; red laser requires 4 batteries). CAUTION: CHECK TO MAKE SURE YOUR WEAPON IS UNLOADED. • To replace the batteries, unscrew the battery cover counter-clockwise with the included 2.5mm allen wrench.
- Page 8 ZEROING (windage and elevation adjustments) Please note that the laser has been pre-set at the factory to be aligned with the mounting base of the laser sight. Only minor windage and elevation adjustments should be required. If significant adjustments are necessary, please make sure the laser sight is properly mounted or adjust the mounting base.
- Page 9 • After carefully firing at the target, CHECK TO MAKE SURE YOUR WEAPON IS UNLOADED. • Make any necessary adjustments to the W/E adjustment screws using the included 1.25mm allen wrench. • Turning the windage screw clockwise moves the POI to the right. •...
- Page 10 TWO-YEAR LIMITED WARRANTY TRUGLO, Inc. warrants this product to be free from original defects in materials and workmanship for a period of TWO (2) YEARS from the date of original retail purchase, subject to the limitations set forth herein. This warranty applies only to the original retail purchaser and requires the purchaser to supply a copy of the original proof of purchase (original sales receipt) at the time warranty service is requested.
- Page 11 THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY FOR THIS PRODUCT. WE DISCLAIM ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR OF MERCHANTABILITY. WE SHALL NOT BE LIABLE IN TORT, INCLUDING NEGLIGENCE OR STRICT LIABILITY, AND SHALL HAVE NO LIABILITY AT ALL FOR INJURY TO PERSONS OR PROPERTY.
- Page 12 TRUGLO WWW. .COM...
