Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.

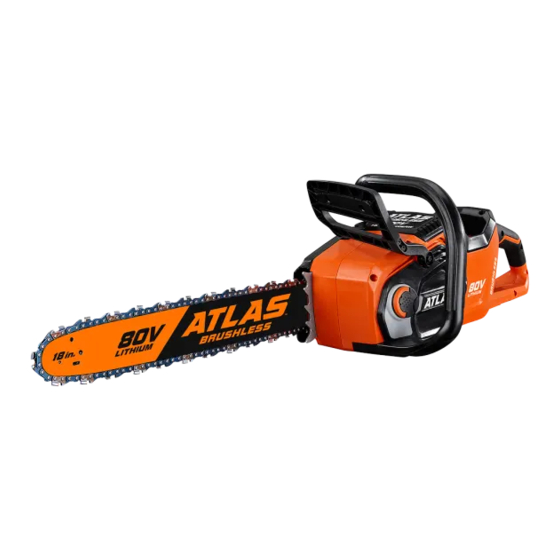

BRUSHLESS
CHAINSAW
40V
LITHIUM
80V
LITHIUM
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2019 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Battery and charger sold separately
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
19l
16"
56938
18"
56937
56938 56937
Advertisement
Table of Contents
Related Manuals for Atlas 56937
Summary of Contents for Atlas 56937
- Page 1 LITHIUM 56937 Battery and charger sold separately Visit our website at: http://www.harborfreight.com 56938 56937 Email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.
-
Page 2: Table Of Contents
Electrical Safety Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Page 2 For technical questions, please call 1-888-866-5797. Item 56938 56937... - Page 3 A moment of inattention while operating of personal injury and should never be done. chain saws may cause entanglement of your clothing or body with the saw chain. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 3...
- Page 4 Decreasing the depth gauge height People with pacemakers should consult can lead to increased kickback. their physician(s) for advice. Page 4 For technical questions, please call 1-888-866-5797. Item 56938 56937...
- Page 5 7. Do not use a battery pack or power tool that is Charger and Battery Pack while charging. damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 5...
- Page 6 Extension cords note: Extension cords must not be used with this item’s Charger. Page 6 For technical questions, please call 1-888-866-5797. Item 56938 56937...
-
Page 7: Specifications
MODEL Atlas Li-Ion 40V (57008) or Battery Type Atlas Li-Ion 40V/80V (57014) (sold separately) 40V/80V (57014) (sold separately) Charger Type 56993 or 56997 Atlas Li-ion (sold separately) 16″ Sprocket Nose 18″ Sprocket Nose Guide Bar Model: M1431656-1041TL Model: M1501862-1041TL-2 16″ Bar Length, 3/8″ Pitch, 0.043″ Gauge 18″... -
Page 8: Setup
Parts Lists and Diagrams on page 20. Functions Hand Guard / C hain Brake Lever Front Handle trigger chain Guide Bar Lockout Saw chain Oil tank cap trigger Page 8 For technical questions, please call 1-888-866-5797. Item 56938 56937... -
Page 9: Operation
Hand Guard / C hain Brake Lever and pushes it forward, stopping the Chain. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 9... - Page 10 Tighten the Nuts so that the Cover is snug, but not tight. Tension the Saw Chain following the steps in Adjusting Saw Chain Tension on page 11. chain tension pin Sprocket Figure B: installing Guide Bar and chain Page 10 For technical questions, please call 1-888-866-5797. Item 56938 56937...
- Page 11 2 through 5 under Checking Saw Chain nuts nuts Tension above. If needed, repeat the adjusting steps to achieve the correct tension. Figure E: adjusting Saw chain tension Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 11...
-
Page 12: Important Safety Information
Chainsaw until it clicks into place. 2. To remove: Press the Battery Pack Release Button and pull Battery Pack out of battery compartment. Figure F: Installing / R emoving Battery Pack Page 12 For technical questions, please call 1-888-866-5797. Item 56938 56937... - Page 13 Guide Bar with the Chain Guide Bar Sheath. encircling the handle as shown in Figure H. Store the tool indoors out of children’s reach. Figure H: Holding the chainsaw note: Front Hand Guard not shown. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 13...
- Page 14 When the tree begins to fall remove the chainsaw from the cut, stop the motor, put the chainsaw down, then use the retreat path planned. Be alert for overhead limbs falling and watch your footing. Page 14 For technical questions, please call 1-888-866-5797. Item 56938 56937...
- Page 15 (underbuck). Then make the finished cut by overbucking to meet the first cut. cut overbuck (2/3 diameter) to meet 1 cut (to avoid pinching) cut underbuck (1/3 diameter) to avoid splintering Figure M: Log Supported One End Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 15...
- Page 16 Always stop the motor before moving from tree to tree. Stand on uphill side when cutting because log may roll Figure O: Bucking a Log Page 16 For technical questions, please call 1-888-866-5797. Item 56938 56937...
-
Page 17: Maintenance
The sawdust becomes powder-like. only with an identical Saw chain. b. You can’t make the cut without extra force. c. The Chainsaw does not cut straight. d. Vibration increases. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 17... - Page 18 Deburr Guide Bar as needed. Monthly Maintenance: Clean Chain Oil Tank. if Worn or Damaged: a. Replace Chain Guide Bar if it becomes b. Sharpen or replace Saw Chain. worn, bent or damaged. Page 18 For technical questions, please call 1-888-866-5797. Item 56938 56937...
- Page 19 Allow tool to work at its own rate. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 19...
-
Page 20: Parts Lists And Diagrams
Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Parts may not be interchangeable. Specify item number when ordering. Page 20 For technical questions, please call 1-888-866-5797. Item 56938 56937... - Page 21 56937 assembly Diagram Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 21...
- Page 22 56938 parts List part Description part Description Chain Guide Bar Sheath Battery Pack Connection Socket Signal Switch Trigger Lockout Tension Assembly Motor Screw St4 x 1 0-F Top Cover Screw St4.2 x 1 6 Screw St4.2 x 1 6 Washer Screw St4.2 ...
- Page 23 56938 assembly Diagram Item 56938 56937 For technical questions, please call 1-888-866-5797. Page 23...
-
