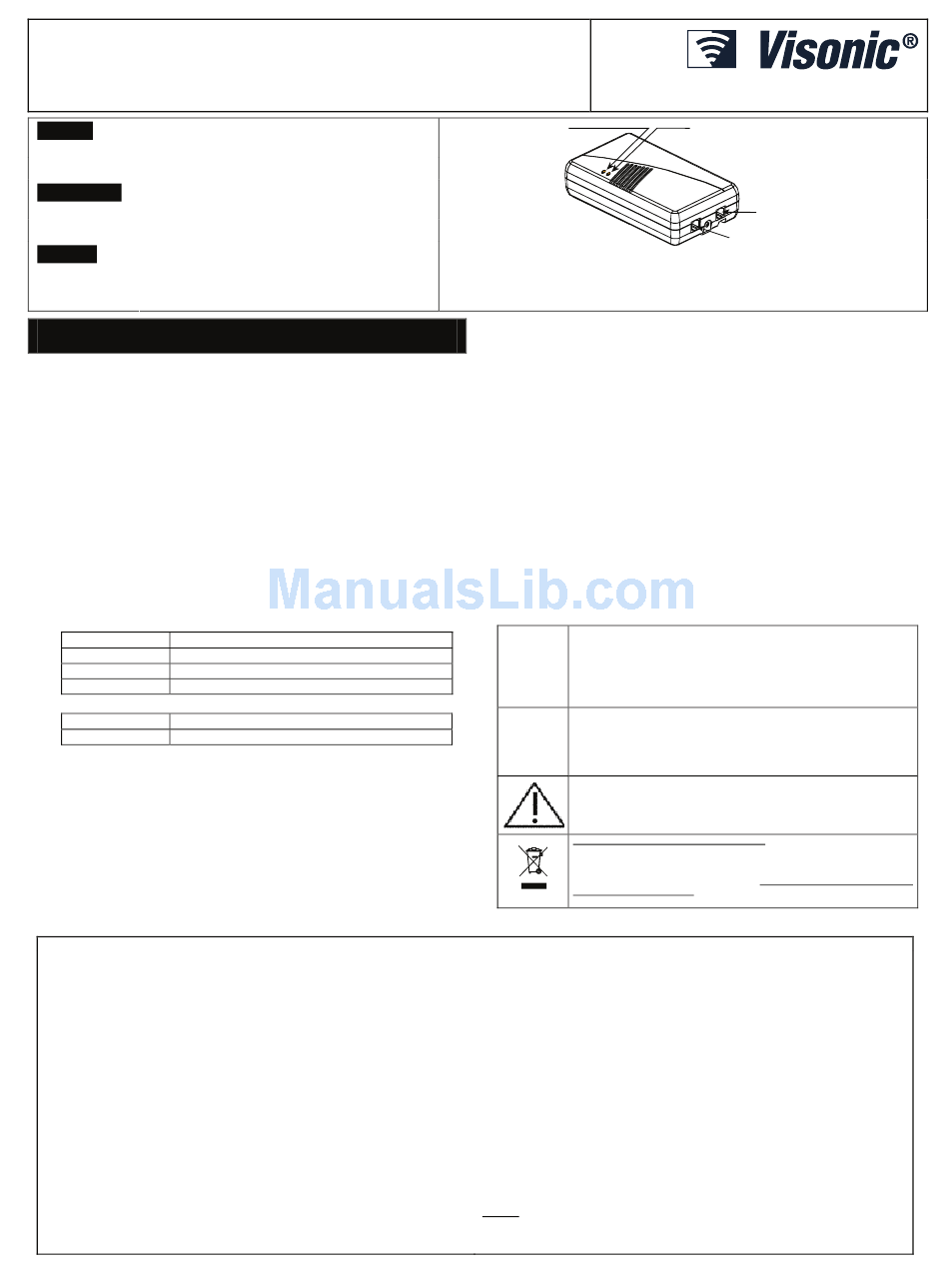

GSM UNIT, UNIDADE GSM,
UNIDAD GSM
English
GSM Modem for PowerMax+
Instructions
Modem GSM para PowerMax+
Portuguese
Instruções de Instalação
Módem GSM para PowerMax+
Español
Instrucciones de Instalación
ENGLISH
1. INTRODUCTION
The GSM unit enables the PowerMax+ system to operate over cellular
network. GSM unit features are as follows:
A. PowerMax+ fast upload/download capability via the GSM unit.
B. Sending SMS and voice messages to private telephones.
C. Communication with central station (SIA, Contact ID format).
D. Serving as PowerMax+ telephone line backup, as a primary
communication channel, or as the only telephone channel.
E. Sending SMS messages to central station.
F. Two-way audio communication between telephone user and
PowerMax+ user.
G. PowerMax+ remote arming.
H. Remote activation of home appliances.
I. Remote PowerMax+ system monitoring (status, failures).
J. Enables calling the PowerMax+ by a single dialing (it is not necessary
to dial, hang up and then redial).
K. Tamper and line disconnection protection.
The unit includes the following LED indicators (see figure 1):
A. Power LED (red):
Light Type
Continuous
Power is OK
Flashes 1 c/s
There is no power (but battery voltage is OK)
Flashes 4 c/s
Battery voltage is low
B. Communication LED (green):
Light Type
Slowly flashes
GSM unit is connected to GSM network
The GSM unit includes a GSM cellular modem, backup battery pack and
Tamper protection switch.
The GSM unit's backup battery is charged by the PowerMax+ or by an AC
power supply.
When PowerMax+ telephone line is disconnected, the PowerMax+ uses
the GSM unit instead of the regular telephone system, according to GSM
LINE PURPOSE definition (for details, refer to the PowerMax+ Installer
Guide, section 4.6).
The GSM unit and the PowerMax+ periodically check the connection
between them. When the connection is lost, both report a Tamper alarm.
If either unit is tampered with, the other unit reports the event.
In case of GSM unit low battery voltage or GSM line failure, the failure
message is reported to the PowerMax+.
WARRANTY
Visonic Limited (the "Manufacturer") warrants this product only (the "Product") to the original purchaser only (the
"Purchaser") against defective workmanship and materials under normal use of the Product for a period of twelve
(12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and operated
under conditions of normal use in accordance with the Manufacturers recommended installation and operation
instructions. Products which have become defective for any other reason, according to the Manufacturers
discretion, such as improper installation, failure to follow recommended installation and operational instructions,
neglect, willful damage, misuse or vandalism, accidental damage, alteration or tampering, or repair by anyone
other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary, robbery,
fire or otherwise, or that the Product will in all cases provide adequate warning or protection.
properly installed and maintained, only reduces the risk of such events without warning and it is not a guarantee
or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
OBLIGATIONS OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN
NO CASE SHALL THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES
WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER'S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO FUNCTION.
D-300915
GB/US: Power LED (red)
Installation
PT: LEDEnergia (vermelho)
SP: Comunicación LED
(verde/amarillo)
Fig. 1 – GSM Unit External View / Vista Externa da Unidade GSM /
When
When
The Product,
Unidad GSM Vista Externa
The GSM unit must be enrolled in the PowerMax+ system (see PowerMax+
installer guide, section 4.6 - Defining GSM Parameters).
SIM card (see figure 2) with 3V or 5V technology should be inserted into
the GSM unit so that the unit can be connected to the cellular network
with a defined telephone number.
2. SPECIFICATIONS
Power Supply: Indoor plug-in transformer, 120 VAC, 60 Hz / 9 VAC, 1A (in
U.S.A.), or 230 VAC, 50 Hz / 9 VAC, 1A.
Frequency (MHz): 900/1800 (Europe), 850/1900 (USA)
Current Consumption: 40mA approx. (idle), < 400mA (transmission)
Backup Battery (supplied with the unit): Ni-Metal, 7.2V, 1300mAh, for up
to 24 operation hours in receive mode.
Initial Battery Charge Time with GSM Transformer: ≤ 48 hours
Max. Distance Between GSM Unit and PowerMax+: Up to 12m
Dimensions (LxWxD): 18.5 x 10.8 x 4.3 cm (7-3/8 x 4-1/4 x 1-3/4 in)
Weight: 500g (17.6 oz)
Color: Gray
Operating Temperature: 0°C to 49°C (32°F to 120°F)
Compliance with Standards:
Europe:
GSM standards: 3GPP TS 51.010-1 and EN 301 511.
EN50131-1 Grade 1 Class II.
EMC: EN 301 489-7 and EN301 489-1 & EN301 489-7.
Safety standards: EN 60950 and EN 50361.
CE/RTTE: Directive 1999/5/EC of the European Parliament
and of the council.
USA:
FCC 47 Part 22 (GSM850) and Part 24 (GSM 1900) Part 15.
FCC ID: GSAGSMEXTMODEM.
Canada IC: 1567C-GSMEXTMD.
SAR standards: FCC rule 2.1093, FCC Docket 96-326 &
Supplement C to OET Bulletin 65.
Warning! There is the danger of explosion if the battery is
replaced incorrectly. Replace the battery only with the same or
equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer's instructions.
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact
the company from which you orignially purchased it. If you are discarding
this product and not returning it for repair then you must ensure that it is
returned as identified by your supplier. This product is not to be thrown
away with everyday waste.
European Directive 2002/96/EC Waste Electrical and Electronic Equipment.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under this
limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as a
penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty and
he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning of any
telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer's discretion any Product or part thereof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer shall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer freight pre-paid
and insured. All freight and insurance costs are the responsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer's installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her safety and
the protection of his/her property.
GB/US: Communication LED (green)
PT: LED Comunicação (verde)
SP: Energía LED (rojo/amarillo)
GB/US: Connector for PowerMax+
PT: Ligação à PowerMax+
SP: Conexión al PowerMax+
GB/US: Connector for PC
PT: Ligação ao Computador
SP: Conexión al PC
1/08
