Connected Controllers
Operating Instructions

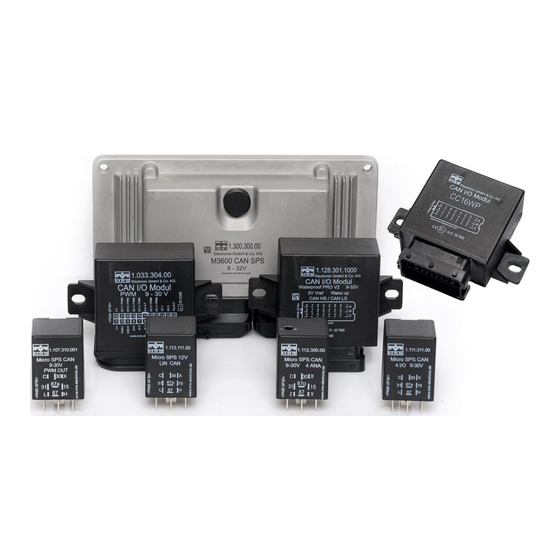

For the following types:
CAN I/O SPS
CAN I/O SPS Waterproof
CAN I/O SPS LHS
CAN I/O SPS Waterproof PRO V2
M2600 ECO CAN SPS
M3600 CAN SPS
CAN I/O CC16WP
PROP CAN
Micro SPS CAN 12 V
Micro SPS CAN 24 V
Micro SPS CAN 4 I/O
Micro SPS CAN 9 – 30 V
Micro SPS CAN 4 ANA
Advertisement
Table of Contents
Related Manuals for MRS M2600 ECO CAN SPS
Summary of Contents for MRS M2600 ECO CAN SPS

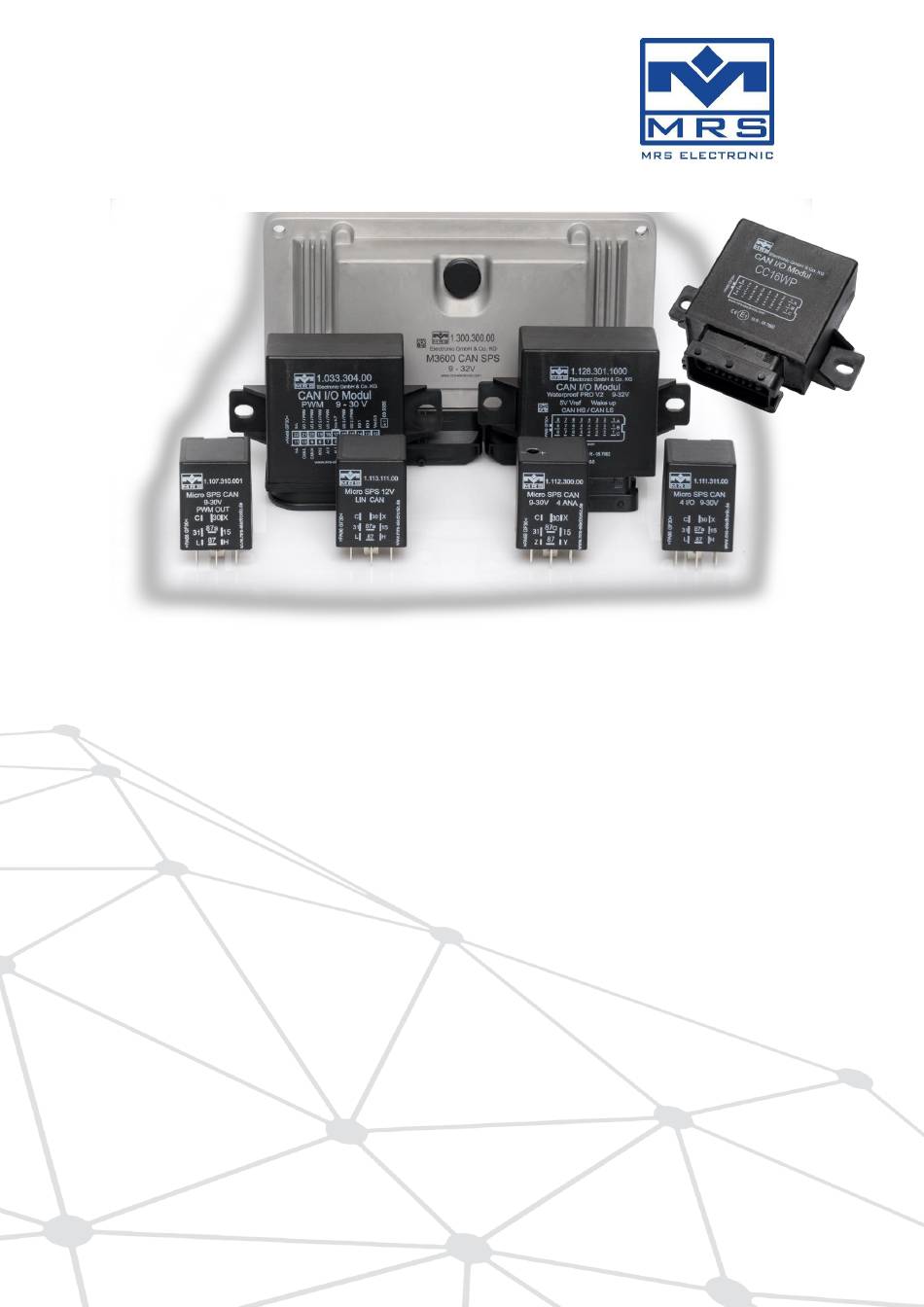

- Page 1 CAN I/O SPS Waterproof Micro SPS CAN 12 V CAN I/O SPS LHS Micro SPS CAN 24 V CAN I/O SPS Waterproof PRO V2 Micro SPS CAN 4 I/O Micro SPS CAN 9 – 30 V M2600 ECO CAN SPS...
- Page 2 MRS Electronic GmbH & Co. KG compiled this document with the utmost diligence and based on the current state of technology. MRS Electronic GmbH & Co. KG will not assume any liability or responsibility for errors in content or form, missing updates as well as any possibly resulting damages or drawbacks.
-
Page 3: Table Of Contents
Table of Contents Table of Contents User information ......................1 About these operating instructions .................. 1 Copyright ......................... 3 Warranty conditions ......................3 Safety ..........................4 Hazards ........................... 4 Staff qualifications ......................5 Obligations of the manufacturers of complete systems ........... 6 Product description ...................... -
Page 4: User Information
The validity of these instructions goes into effect with the transfer of the product from MRS to the operator. The version number and approval date of the instructions are included in the footer. Changes to these operating instructions are possible any time and without the specification of any reasons. - Page 5 1 User information Warning information in the operating instructions The operating instructions contain warning information before a call to action which includes the risk of property damage or personal injury. The measures for averting risks described in the instructions must be implemented. Warning information is structured as follows: j DANGER! SOURCE AND CONSEQUENCE...
-
Page 6: Copyright
Warranty conditions See the General Terms and Conditions MRS Electronic GmbH & Co. KG at https://www.mrs-electronic.de/agb/ VST_BA1_1.0 | Version 1.0 | 07/2019... -
Page 7: Safety
2 Safety Safety This chapter includes all the information you should know in order to safely install and operate the product. Hazards The connected controllers has been constructed with the newest technology and recognized safety-relevant regulations. Danger for persons and/or property may arise in case of improper use. -
Page 8: Staff Qualifications
Authorized persons Authorized persons are those persons who are permitted to perform the work due to legal regulations or who have been approved to perform certain tasks by MRS. VST_BA1_1.0 | Version 1.0 | 07/2019... -
Page 9: Obligations Of The Manufacturers Of Complete Systems
The manufacturer must also take the following aspects into consideration when using the control unit: Control units with wiring suggestions provided by MRS do not constitute a systematic responsibility for complete systems. Safe operation cannot be guaranteed for control units used as prototypes or samples in the complete system. - Page 10 2 Safety The risk of accidents is reduced if the manufacturer of the complete systems observes the following points: Adherence statutory regulations regarding accident prevention, occupational safety and environmental protection. Provision of all documents required for installation and maintenance. ...
-
Page 11: Product Description
3 Product description Product description The connected controllers by MRS Electronic are used for the expansion of existing CAN control but can also be used as independent PLC control units. The software tool CANgraph and the suitable flash programming tool MRS Developers Studio or programming with a C-programming system are used for graphic programming. -
Page 12: Transport / Storage
The product must be packed in suitable transport packaging and secured against sliding around. During transport, the statutory provisions regarding securing loads must be observed. If the control unit falls down, it may no longer be used and must be returned to MRS to be checked. Storage Store the product in a dry place (no dew), dark (no direct sunlight) in a clean room which can be locked. -
Page 13: Intended Use
Operation without the safety measures intended and provided by the manufacturer. MRS only guarantees/is liable for the control unit corresponding to the published specifications. If the product is used in a way not described in these operation instructions or in the data sheet of the control unit in question, the protection of the control unit will be impaired, and the warranty claim is void. -
Page 14: Assembly
Assembly work may only be performed by qualified staff (see Chapter 2.2). The control unit may only be operated after having installed in a fixed location. INFORMATION If the control unit falls down, it may no longer be used and must be returned to MRS to be checked. Mounting location The mounting location must be selected as such that the control unit is subjected to as low a mechanical and thermal load as possible. -
Page 15: Electric Installation
7 Electric installation Electric installation Electric installation work may only be performed by qualified staff (see Chapter 2.2). The electric installation of the unit may only be performed in idle condition. The control unit may never be connected or disconnected on-load or when live. j WARNING! SUDDEN MOVEMENTS OF COMPLETE SYSTEM OR OF COMPONENTS Danger due to unprotected moving components. -
Page 16: Wiring
7 Electric installation Control unit with plug connectors 1. Pleas ensure that the correct cable harness is connected to the control unit. Follow the connection diagram and documents of the complete system. 2. Please ensure that the mating plug of the cable harness (not included) is compatible. -
Page 17: Commissioning
The operator must ensure that the correct software has been embedded and corresponds with the circuitry and parameter setting of the hardware (only for control units supplied by MRS without software). no persons are present in the vicinity of the complete system. -
Page 18: Software
9 Software Software The installation and/or replacement of device firmware / software must be performed by MRS Electronic GmbH & Co. KG or by an authorized partner in order for the warranty to remain valid. INFORMATION Control units supplied without software can be programmed using MRS Developers Studio. -
Page 19: Fault Removal And Maintenance
10 Fault removal and maintenance Fault removal and maintenance INFORMATION The control unit is maintenance-free and may not be opened. If the control unit exhibits any damages on the casing, locking catch, seals or flat plugs, it must be shut down. Fault removal and cleaning work may only be performed by qualified staff (see Chapter 2.2). -
Page 20: Cleaning
10 Fault removal and maintenance Cleaning 10.1 INFORMATION Damages due to improper cleaning agents! The control unit may be damaged when cleaning it with high-pressure cleaners, steam jets, aggressive solvents or scouring agents. Do not clean the control unit with high-pressure cleaners or steam jets. Do not ... -
Page 21: Disassembly And Disposal
11 Disassembly and disposal Disassembly and disposal Disassembly and disposal may only be performed by qualified staff (see Chapter 2.2). Disassembly of the unit may only be performed in idle condition. j WARNING! SUDDEN MOVEMENTS OF COMPLETE SYSTEM OR OF COMPONENTS Danger due to unprotected moving components.
