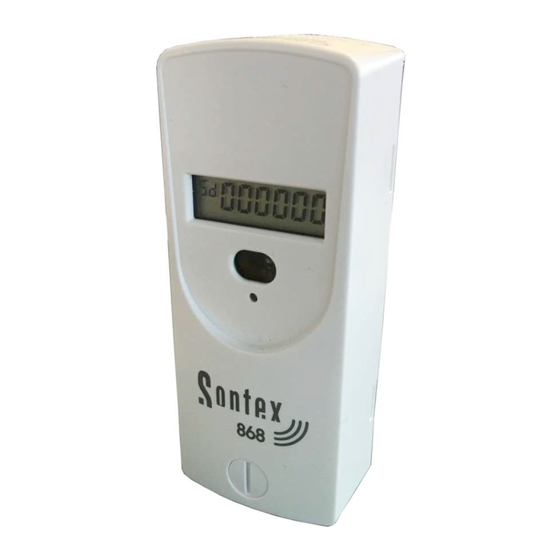

Sontex 868 Radio Manual

Electronic heat cost allocator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Manual
Electronic
Heat Cost Allocator
Sontex 565
Sontex 566 Radio
Sontex 868 Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 868 Radio and is the answer not in the manual?

Questions and answers

Related Manuals for Sontex 868 Radio

Summary of Contents for Sontex 868 Radio

  • Page 1 Manual Electronic Heat Cost Allocator Sontex 565 Sontex 566 Radio Sontex 868 Radio...

  • Page 2: Specification

    1.1 General Description 1.1.1 Type The electronic heat cost allocators Sontex 565 / 566 / 868 operate either according to the single sensor principle with start sensor or the double sensor principle. The device has been developed and approved in accordance with the European Standard EN 834:2013.
  • Page 3  For heat cost allocator Sontex 566 Radio, the Sontex radio system (Supercom) is a bidi- rectional system. Reading and programmable by radio.  For heat cost allocator Sontex 868 Radio, the radio module comprises a unidirectional ra- dio transmitter.
  • Page 4 The radio heat cost allocator 566 features a transceiver circuit in the 433 MHz band with integrated antenna. With the Sontex radio system, proven since more than 15 years; it is possible to readout the con- sumption values via a mobile radio modem or via a radio central installed directly in the office.

  • Page 5: Operating Mode

    1.2 Operating mode 1.2.1 Cycle Time The heat cost allocators 565 / 566 / 868 operate in a cycle of 4 minutes. Most of the time, the device is in sleeping mode. Every 4 minutes the Start of cylce device is set into operation and operates according to the adjoining dia- gram.
  • Page 6 1.2.4 Comparison of the Measuring Principles Single sensor device with start sensor Double sensor measuring principle measuring principle ≥ 55 °C ≥ 35 °C For heating systems with tm For heating systems with tm The heat cost allocator calculates with a set ref- The heat cost allocator calculates with a vari- erence temperature of 20 °C able reference temperature T...
  • Page 7 exact value is known, it is now possible to calculate the unknown resistance value R with the fol- lowing equation: ⇒ ⋅ From this equation the self-calibration of the converter can be derived, which is given by measuring the discharging time through the reference resistance. 1.2.5.3 Measuring of the Radiator and Ambient Temperature The following measurements are carried out during one cycle: 1.
  • Page 8 1.2.6 Calculation of the Displayed Consumption Value The value displayed on the heat cost allocator is calculated as follows: Single sensor device Double sensor device − −     ∫ ∫        ...
  • Page 9 1.3 Display and Additional Functions 1.3.1 The Menu Sequences of the Digital Display The menu sequences Ex factory all menu sequences are activated. With the Display position 1 Consumption value software Prog6 the order of the menu sequences 1 - 15 can be changed in any order.
  • Page 10 1.3.2 The Digital Displays During normal operation the display is deactivated and can be activated by pushing the button. If the button is not pushed, the display will be active for 2 minutes only. On request, the heat cost allocator is also available with permanent display 24h/24h or with a roll- ing menu displayed.
  • Page 11 Time The current time (always winter time).  Date The current date of the heat cost allocator. .. Set Day  It is possible to program an annual set day on which the ..-- cumulated consumption value as well as the maximal radia- tor temperature are recorded.
  • Page 12 36 stands for the least recent month. All monthly values are set to 000000 when the device is com- missioned. Note 566 radio : The radio heat cost allocator 566 only transmits the first 18 monthly values via radio telegram.
  • Page 13 Maximum Radiator Tempera- ture of the Current Heating Pe- Π riod With the index the maximum radiator temperature of the  current heating period (since the Set Day) is displayed. .  Maximum Radiator Tempera- ture of the Previous Heating Period With the index the maximum radiator temperature of the...
  • Page 14 1.3.3 Rolling Digital Display The EHCA 565, 566 and 868 also feature the possibility of a rolling display 24h/24h. With the software Prog6 or Sontex916/ Tools916 or Tools Supercom, it is possible to individual- ize the rolling display. Up to 15 parameters can be chosen optionally from the list below. These parameters can be com- bined in any order and are then shown on the rolling display.

  • Page 15: Communication Indicator

    and Measuring Indicator ● 1.3.4 Communication Indicator The communication indicator displays if the heat cost allocator is currently making a calculation and/or if it communicates internally or externally over the optical or wireless interface (only radio Supercom).  If the arrow of the communication indicator points inwardly ...
  • Page 16 The current and monthly values recorded by the heat cost allocator 565 / 566 / 868 as well as sev- eral other parameters can be readout over the optical interface or also over radio. The following parameters are transmitted: Optical Interface: Sontex 566 Radio Supercom :   Identification number (information in Identification number (information in header).

  • Page 17: Check Code

    The current consumption value.  The check code. For the verification of the check code Sontex places all necessary tools (programs, formulas) at the disposal of the authorized personnel. 1.3.8 Change of Battery The battery of the heat cost allocator is soldered. The lithium battery is not rechargeable. A change of battery is not planned.

  • Page 18: Special Functions

    Disposal It is mandatory to dispose of the heat cost allocator environmentally friendly or to return it after use to the manufacturer for appropriate disposal to ensure that the components are recycled in accord- ance with the battery and electronic scrap regulations. Should you do the disposal yourself please get information from your local authority on the recycling possibilities 1.3.9 Protection against Outside Influences 1.3.9.1 Seal...

  • Page 19: List Of Errors

    1.4.3 Unit Scale and Product Scale For the heat cost allocators Sontex 565 / 566 / 868, distinction is made between the unit scale and the product scale. If heat cost allocators are used with the same scale on all radiators, this scale is called unit scale.
  • Page 20 * : SLEEP information will be displayed by pushing the push button. **: See also in chapter 1.7.3 Operation Mode for Radio Supercom (Sontex 566 Radio) Transition from sleeping mode to installation mode is achieved by two different ways: 1.
  • Page 21 After readout of the data from the radio heat cost allocator, the radio availability is deactivated again. 1.7.4 Operation Mode for Radio wM-Bus (Sontex 868 Radio) 1.7.4.1 Readout over the short telegram (OMS compliant) With this operating mode, the heat cost allocator Sontex 868 Radio transmits data:  Transmission interval each 120 seconds (minimum). ...

  • Page 22: Installation

    2. Installation 2.1 Introduction To guarantee the proper functioning of the heat cost allocator 565 / 566 / 868, it is of great im- portance that it is installed by an expert. On one hand, a constant heat transfer between radiator and heat cost allocator has to be guaranteed.

  • Page 23: Mounting The Remote Sensor

    Respect the color code of the radiator sensor and the remote sensor:  Heat cost allocator Sontex 565 X, Sontex 566 X and Sontex 868 X: the radiator sensor and the remote sensor are manufactured with a yellow color. ...

  • Page 24: General Restrictions

    2.5 Operating Range The Sontex heat cost allocators can be used in heating systems with the following mean heating medium temperatures: For single sensor devices with start sensor ...
  • Page 25 The heat cost allocator is placed on the alumin- ium back plate in the direction of the arrow. Push the seal pre-installed by Sontex in the slot of the housing, then press until the seal clicks into the aluminium back plate.
  • Page 26 3. Commissioning Ex factory the heat cost allocators 565 / 566 / 868 are in the so-called sleeping mode. In this mode no measuring is carried out and thus no consumption values are calculated. Furthermore the digital display, the radio communication options as well as the device opening detection are deactivated. Only the optical communication interface is available.
  • Page 27 3.2 Commissioning by pressing push button Once heat cost allocator is fixed with/against the aluminium back plate, the LCD-display will show the following message: The index indicates that the heat cost allocator has rec-  ognized the remote sensor.  If the remote sensor is not detected by the device, the index -- will be displayed.

  • Page 28: Technical Data

    Rév. 241016 Document: 0565P202 Installation guide line EHCA 565-566-868 24-10-2016 Technical modifications subject to change Technical Support For technical support contact your local Sontex agent or Sontex SA directly. Hotline Sontex:  Sontex SA 2016 sontex@sontex.ch +41 32 488 30 04...
