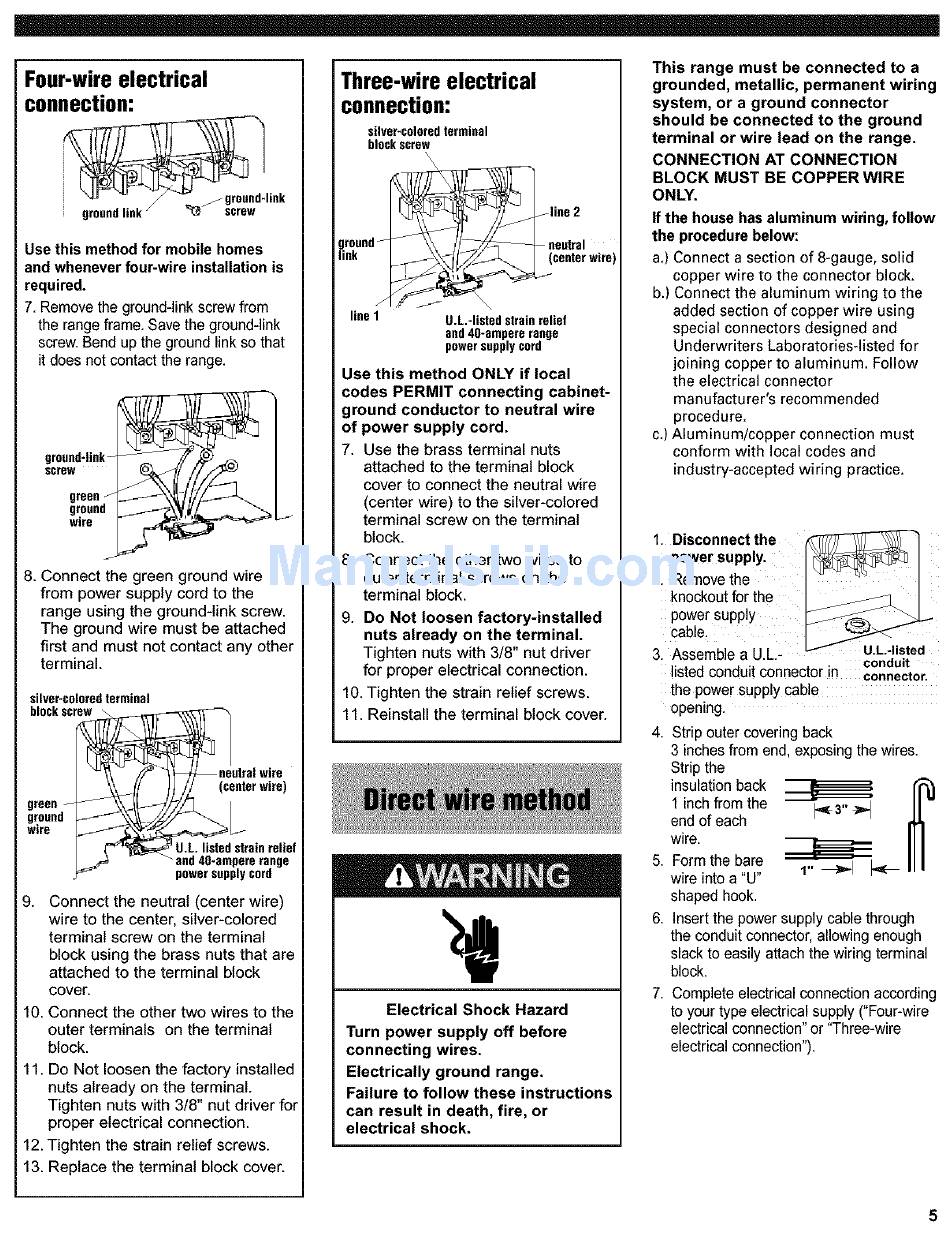

Four-wireelectrical
connection:
ground-link
ground l ink/
_
screw
Use this method for mobile homes
and whenever four-wire installation is
required.
7. Remove the ground-link screw from
the range frame. Save the ground-link
screw. Bend up the ground link so that
it does not contact the range.
ground-link-
screw
green j
ground
wire
f
8. Connect the green ground wire
from power supply cord to the
range using the ground-link screw.
The ground wire must be attached
first and must not contact any other
terminal.
silver*colored t erminal
block screw \
eutral wire
er wire)
U.L listed strain relief
and 40-ampere range
power supply cord
9.
Connect the neutral (center wire)
wire to the center, silver-colored
terminal screw on the terminal
block using the brass nuts that are
attached to the terminal block
cover.
10. Connect the other two wires to the
outer terminals
on the terminal
block.
11. Do Not loosen the factory installed
nuts already on the terminal.
Tighten nuts with 3/8" nut driver for
proper electrical connection.
12. Tighten the strain relief screws.
13. Replace the terminal block cover.
Three-wireelectrical
connection:
silver*colored terminal
block screw
\\
line 1
U.L.*listed strain relief
and 4g-ampere range
power s upply cord
Use this method ONLY if local
codes PERMIT connecting cabinet-
ground conductor to neutral wire
of power supply cord.
7. Use the brass terminal nuts
attached to the terminal block
cover to connect the neutral wire
(center wire) to the silver-colored
terminal screw on the terminal
block.
8. Connect the other two wires to
outer terminal screws on the
terminal block.
9. Do Not loosen factory-installed
nuts already on the terminal.
Tighten nuts with 3/8" nut driver
for proper electrical connection.
10. Tighten the strain relief screws.
11. Reinstall the terminal block cover.
Electrical Shock Hazard
Turn power supply off before
connecting wires.
Electrically ground range.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
This range must be connected to a
grounded, metallic, permanent wiring
system, or a ground connector
should be connected to the ground
terminal or wire lead on the range.
CONNECTION
AT CONNECTION
BLOCK MUST BE COPPER WIRE
ONLY.
if the house has aluminum wiring, follow
the procedure below:
a.) Connect a section of 8-gauge, solid
copper wire to the connector block,
b.) Connect the aluminum wiring to the
added section of copper wire using
special connectors designed and
Underwriters Laboratories-listed for
joining copper to aluminum. Follow
the electrical connector
manufacturer's recommended
procedure.
c.) Aluminum/copper
connection must
conform with local codes and
industry-acceptedwiring practice.
1. Disconnect the
power supply.
2. Remove the
knockout for the
powersupply
cable.
3. Assemble a U.L.-
U.L-listed
conduit
listedconduit connector in
connector.
the power supp!y cable
opening.
4.
.
6.
Strip outer covering back
3 inchesfrom end, exposing the wires.
Strip the
insulation back
_:_
1 inchfrom the
end of each
wire.
Form the bare
1" _l
wire into a "U"
shaped hook.
Insert the power supply cable through
the conduit connector, allowing enough
slack to easily attach the wiring terminal
block.
7.
Complete electrical connection according
to your type electrical supply ("Four-wire
electrical connection" or "Three-wire
electrical connection").
