Page 1: Installation Instructions

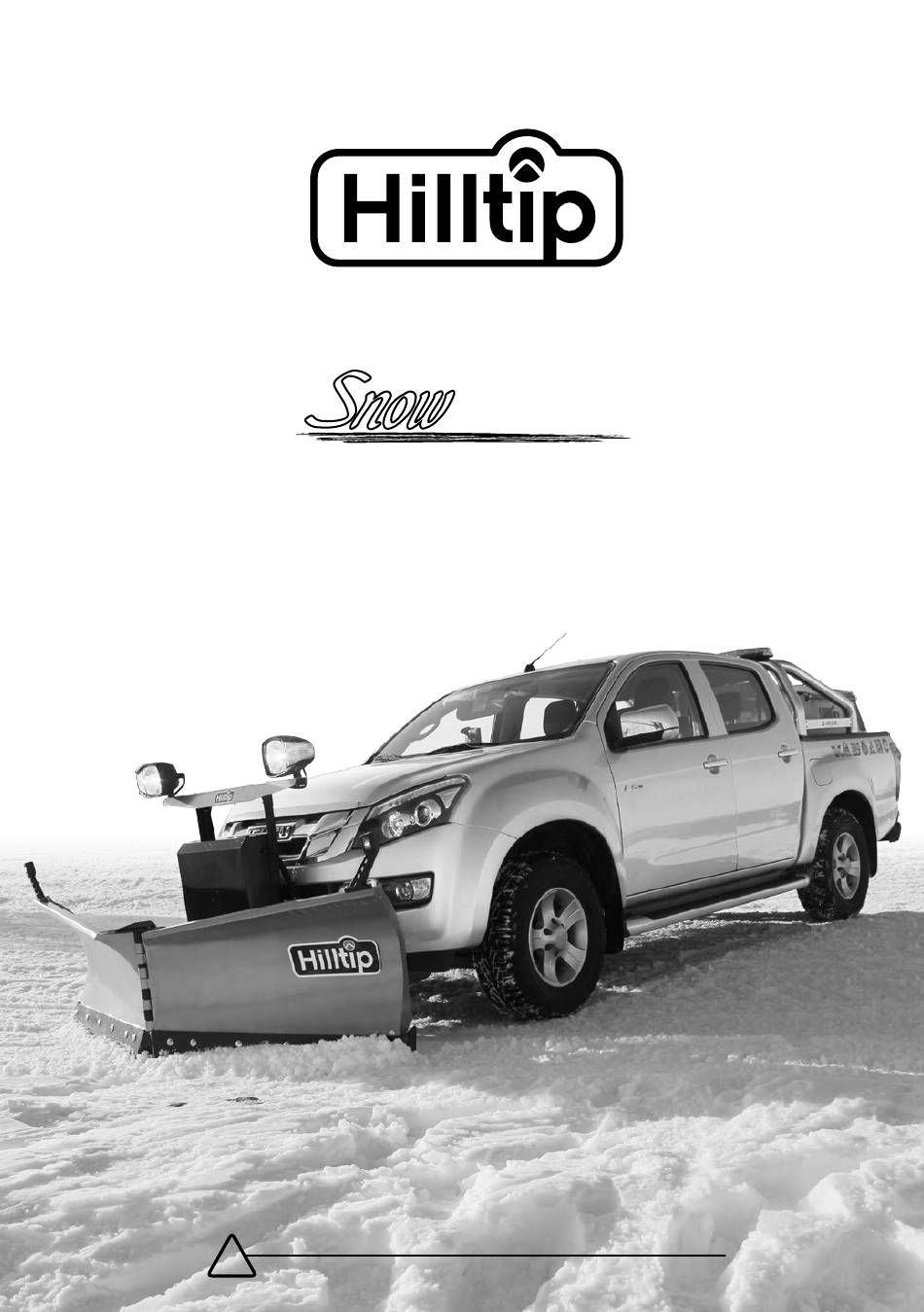

STRIKER 1800-VP • 2100-VP • 2250-VP OWNER’S MANUAL AND INSTALLATION INSTRUCTIONS CAUTION Read this manual before installing or operating the plow... -
Page 2: Table Of Contents
SnowStriker TABLE OF CONTENTS Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Technical specifications . -
Page 3: Safety Instructions
SnowStriker SAFETY INSTRUCTIONS Incorrect installation and operation can lead to serious personal injury and/or damage your equipment and property . Note and ensure that you understand this manual and all the labels before installing, operating or making adjustments to the snowplow . Personal safety WARNING •... -
Page 4: Technical Specifications
SnowStriker TECHNICAL SPECIFICATIONS Description 1850-VP 2100-VP 2250-VP Width (a.) 1850 2100 2250 Height, center (b.) Height, outer edge (c.) Width, v-position (d.) 1600 1850 2000 Width, scoop position (e.) 1600 1850 2000 Width, windrow position (f.) 1600 1850 2000 Weight 142 kg 149 kg 155 kg... -
Page 5: Warning And Caution Labels
SnowStriker WARNING AND CAUTION LABELS Please become familiar with these warning and caution labels on the plow . WARNING WARNING LOWER BLADE WHEN VEHICLE IS PARKED. DO NOT EXCEED GVWR OR GAWR INCLUDING BLADE AND BALLAST. REMOVE BLADE ASSEMBLY BEFORE PLACING VEHICLE ON HOIST. -
Page 6: Quick Hitch Instructions
SnowStriker QUICK HITCH INSTRUCTIONS Plow must be standing steady on the Align car and snowplow, slowly drive ground, with plow shoes lowered car forward Fit the plow horns in receiver push Pull and hold the lock pin out (2), beam, pull handle (1) up, the shoe rotate handle up and release lock pin will lift off the ground... -
Page 7: Joystick
SnowStriker JOYSTICK Lower plow Down pressure indicator* On/Off and error indicator On/Off button Windrow-right Windrow-left position position Angle left Angle right Scoop V-position Lift plow position Down pressure function Automatic shut-down Push the joystick knob upwards (lower The joystick/IO module and snowplow will plow-position) for more than 3 seconds to automatically shut down after being inactive for apply down pressure . -
Page 8: Error Codes
SnowStriker ERROR CODES The on/off and error indicator LED located in the upper left corner of the joystick will show a green light when turned on and if no errors are detected. If a problem is detected, the LED will flash with a red light a number of times, pause, and then repeat . -
Page 9: Plow Details And Installation Instructions
SnowStriker PLOW DETAILS AND INSTALLATION INSTRUCTIONS 1. Main pressure 2. Adjust drop speed 3. Down pressure gauge port 4. Down pressure adjustment Adjust cutting edge attack angle Grease fittings (x 3) Wing-speed syncronizing valve... -
Page 10: Vehicle Harness
SnowStriker VEHICLE HARNESS Connect these harness cables according to pictures below: 1a. Joystick cable 1c. Car ground 2a. Car +12V (VCC +12V) 2c. Switched power (IGN) 1b. Car + 12V (red) 1d. Car ground (GND ATT IN) 2b. Car ground (GND) 2d. -
Page 11: Parts
SnowStriker PARTS Blade assembly Lift frame assembly... -
Page 12: Plow Valve Electrical Functions
SnowStriker PLOW VALVE ELECTRICAL FUNCTIONS Blade Angle Angle Right Left Down Scoop Raise Lower Idle movement right left extend extend pressure MOTOR 1* = Goes low after 10 sec . Main pressure Pressure gauge port Downpressure adjustment 0 - (max)50 bar Factory setting: 30bar... -
Page 13: Hydraulic Schematics
SnowStriker... -
Page 14: Parts - Hydraulic Power Pack
SnowStriker PARTS - HYDRAULIC POWER PACK 7-9Nm 7-9Nm 25-28Nm 25-28Nm 25-28Nm 7-9Nm 10-12Nm... -
Page 15: Partslist - Hydraulic Power Pack
SnowStriker PARTSLIST - HYDRAULIC POWER PACK Item Qty Part number Description H24515 Motor H24516 Coupling H24517 Start Switch H24518 Hose clamp H24519 Adapter block H24520 Check valve H24521 Plug H24522 O-ring H24523 Relief valve H24524 Pump H24525 Screw H24526 Spring washer H24527 Suction hose H24528... -
Page 16: Declaration Of Conformity
- 2006/42/EC - EN 15432-1 - 2009/433/EG I, the undersigned, hereby declare that the equipments specified above, that have been assambled by Oy Hilltip Ab, conforms to the above directives and standards Pietarsaari August 3rd, 2015 Signature: Printed Name: Tom Mäenpää... - Page 17 Oy HillTip Ab +358 50 5983 026 www .hilltip .com Pukkisaarentie 6 +358 50 3659 415 info@hilltip .com 68600 Pietarsaari Finland...
