These instructions contain all the necessary fitting and operating instructions for your electric shower.
Care taken during the installation will provide a long, trouble free life from your shower.
INSTRUCTION GUIDE AND USER MANUAL
INSTANTANEOUS ELECTRIC WATER HEATER - INDULGE TOUCH
By AQUABELLA SHOWER CO.,LTD.

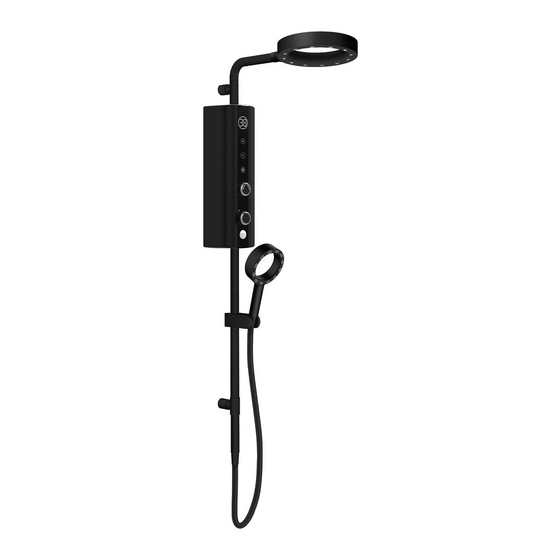

INDULGE TOUCH
INLINE X JET
9.5 KW
INDULGE TOUCH
FLEX SMART
9.5 KW
Advertisement
Table of Contents
Related Manuals for AQUAS INDULGE TOUCH FLEX SMART
Summary of Contents for AQUAS INDULGE TOUCH FLEX SMART
- Page 1 INSTRUCTION GUIDE AND USER MANUAL INSTANTANEOUS ELECTRIC WATER HEATER - INDULGE TOUCH By AQUABELLA SHOWER CO.,LTD. INDULGE TOUCH INDULGE TOUCH INLINE X JET FLEX SMART 9.5 KW 9.5 KW These instructions contain all the necessary fitting and operating instructions for your electric shower. Care taken during the installation will provide a long, trouble free life from your shower.
- Page 2 PLEASE READ THIS IMPORTANT SAFETY INFORMATION...
- Page 3 IMPORTANT...
- Page 4 GENERAL LAYOUT OF A SHOWER INSTALLATION DOUBLE POLE SWITCH CEILING MOUNTED CEILING JOISTS HOSE RETAINING RING BATHROOM SPILL OVER LEVEL FLOOR...
- Page 5 RECOMMENDED INSTALLATION DIMENSIONS INDULGE TOUCH INLINE 9.5 KW. INDULGE TOUCH FLEX 9.5 KW.
- Page 6 SPARE PART DETAILS FOR INDULGE TOUCH WATER HEATERS DESCRIPTION AQUAS CODE OVERHEAD - SMART 200 - NO AIR CHROME AS02001CP OVERHEAD X JET 200 CHROME AS02086CP 2.5mm SEALING WASHER FOR SHOWER HOSE - PACK 5 AS06003 TOP CONNECTER FOR SHOWER ARM...
- Page 7 INDULGE TOUCH INLINE 9.5 KW MANUAL WATER HEATERS...
- Page 8 INDULGE TOUCH FLEX 9.5 KW MANUAL WATER HEATERS...
- Page 9 ASSEMBLY OF UPPER SHOWERING COMPONENTS for INDULGE TOUCH INLINE MODELS...
- Page 10 ASSEMBLY OF UPPER SHOWERING COMPONENTS for INDULGE TOUCH INLINE MODELS...
- Page 11 ASSEMBLY OF UPPER SHOWERING COMPONENTS for INDULGE TOUCH FLEX MODELS...
- Page 12 PLUMBLING CONNECTIONS Top fixing position arrow depict water and electrical entry points.
- Page 13 Page 13...
- Page 14 ELECTRICAL CONNECTIONS...
- Page 15 ELECTRICAL WIRING DIAGRAM 1. Thermal cut-out 2. Power PCB 3. Solenoid valve 4. Temperature sensor 5. Pressure switch 6. Control PCB...
- Page 16 FITTING THE BACK COVER INTO POSITION When fitting the cover, it is important to align the divertor spindle and volume control spindle inside the heater. DIVERTOR HANDLE ( UPPER HANDLE ) Make sure that the Divertor spindle and the raised button on the divertor handle are in the 12 O'clock position before fitting the cover.
- Page 17 5. Switch on the electrical supply at the double pole switch. The Aquas digital heater has 3 settings and automatically defaults to the COLD ONLY setting. 6. Press the On / Off Button. This action will activate the internal solenoid valve and start the water flowing at maximum volume.
- Page 18 The Lower the flow the temperature will increase. 6. To turn off the shower unit , press the ON / OFF button. 7. Your Aquas shower is fitted with an automatic Phased shutdown which flushes any remaining hot water out of the unit for safe continued operation.
- Page 19 MAINTENANCE – CLEANING THE FILTER STEP 1 Remove front cover assembly, loosen these two screws, the decor cover can be removed. STEP 2 Use flat-head screw driver to remove filter, clean it, and refit. STEP 3 Clean the filter and refit. FILTER...
- Page 20 Limescale remover and rinse thoroughly before use. Your AQUAS Branded heaters are supplied by Aquabella Shower Co.,Ltd. in Thailand. For information or service assistance , please contact the installer or the local UK distributor from where the heater was purchased.
