Summary of Contents for Actulux LIP6
- Page 1 Kædemotorer Chain drives Opérateurs de la chaîne Kettenantrieben Accessories...
-
Page 2: Table Of Contents
Add-On Relay PCB for indication of window position Alarm / Failure Add-on Relay PCB for SV control panels Actulux offers a wide range of accessories for electrical control panels and opening systems. Accessories include among others Control Panels, Sensors, special fittings and expansion modules... -
Page 3: Fire Switch Bvt Ip40

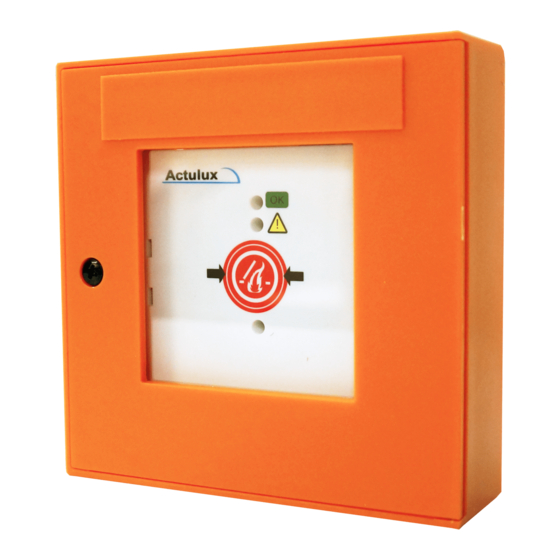

Actulux Products Accessories Fire Switch BVSA IP65 Fire Switch BVT IP40 Wind & Rain Sensor Remote Control Smoke Detector Heat Detector Room Detector Comfort Switch - OPUS / FUGA LIP5 LIP6 LIP7 Flex1 GSM Modem Add On - Relay PCB... - Page 4 Fire Switch BVT for Smoke Ventilation Systems, IP40 for Actulux smoke ventilation systems #111789 #111790 EASY INSTALLATION AND OPERATION OPERATION INSTRUCTIONS The fire switch is developed to be used together with the During fire: Break the glass and activate the red button.
- Page 5 Fire Switch BVSA for Smoke Ventilation Systems, IP65 for Actulux smoke ventilation systems #111626 EASY INSTALLATION AND OPERATION The fire switch is delivered in a IP65 box for e.g. outdoor installation and is developed to be used together with the Actulux smoke ventilation system.
- Page 6 INTELLIGENT AND ADVANCED PRODUCT WIRELESS CONNECTION Wind and Rain Sensor #111961 consists of a wind wheel It is possible to connect Actulux Weather Sensor and a rain sensor surface. It is developed for automatic wireless to Actulux SV/SVM Control Panel or to control of smoke and comfort ventilation system.
-
Page 7: Remote Control
#111891 Set #111894 Set #111895 REMOTE FOR COMFORT Enabling wireless comfort control of Actulux Control Panels and Actulux Flex1 ACDC. WIRELESS CONNECTION OF SENSOR Simply fit the RF-reciever PCB into the socket. It is possible to connect Actulux Weather Sensor... -
Page 8: Smoke Detector
Smoke Detector / Heat Detector detection of fire Teknisk Information Varmedifferential-melder WSA 310 (Apollo 55000-127) Teknisk Information #111740 #111735 Varmedifferential-melder WSA 310 (Apollo 55000-127) SMOKE DETECTOR THERMAL DIFFERENTIAL DETECTOR Godkendelses- Smoke detector for early fire detection with visual “release” Thermal Differential Detector for early fire detection. display. -
Page 9: Room Thermostat
Room Thermostat automatic opening and closing of skylights and windows #111778 AUTOMATIC OPENING AND CLOSING OF SKYLIGHTS The room thermostat can be used for automatic opening The room thermostat can also be connected with a and closing of skylights when the temperature in the room weekly timer which makes sure that the window is closed exceeds the set temperature. - Page 10 Comfort Switch, Type OPUS manual control of comfort ventilation Please remember to mount return springs behind both arrow keys #111753 MANUAL CONTROL OF COMFORT VENTILATION Up/down switch for manual control of comfort ventilation, The up/down switch is delivered with housing for wall e.g.
- Page 11 ● Open / Close indication (bistable relays) ● Building Management System (BMS) 0-10V control ● Interface for MAYSER Safety Edge (true Anti-Pinch) HOC is compatible with 3. generation of Actulux chain drives. INPUT = STROKE LENGTH INDICATION FOR OPEN / CLOSE...
- Page 12 - Type LIP5 Current Limiter and Overload Interrupter intelligent and electronic current limiter #121326 BUILT IN ACTUATOR PROTECTOR ADVANCED ELECTRONIC CURRENT LIMITER LIP5 is an advanced electronic product that is used as current LIP5 has a built in actuator protector. This means that the voltage will automatically be interrupted if the speed of the limiter between a 24V DC or 48V DC supply actuator gets relatively very low or stops completely because...
- Page 13 - Type LIP6 Current Limiter and Overload Interrupter intelligent and electronic current limiter #121333 ADVANCED ELECTRONIC CURRENT LIMITER LIP6 is an advanced electronic product, which is used as a LIP6 can work both as single operation, i.e. connected to 1 actuator or as tandem operation i.e.
- Page 14 ON = 7 seconds delay between Master and Slave Not in use (*) Please note that the above power settings are standard - can also be customized to specific Actulux actuator types FEATURES Power supply: 24 - 36 - 48 VDC +/- 15%, Max. Ripple: 2 Volt PP Input resistance: Using switch on the PCB a 27kΩ...
-
Page 15: Comfort Switch - Opus
It is possible to mount LIP5, LIP6 or LIP7 from the traditional a RF-receiver PCB #111894 to make remote control possible Actulux Opening System enabling them to be supplied by for comfort ventilation use and for the Actulux Weather 230V. - Page 16 Operating temperature: -10° to +45° C CE-marking: in accordance with the EMC-directive and low voltage directive Connection of unit has to be carried out by professionals Product no.: #111950 Optional: Actulux battery box 12Ah - for 72 hours backup (Product no. #216000)
- Page 17 “Add on” Relay PCB heat control, indication on BMS controls, intruder alarms PCB FOR INDICATION OF WINDOW POSITION This “Add on“ relay PCB can be used where indication The “Add on“ relay PCB is going to be connected through about opened windows on the comfort or alarm function a flat cable to the SV control unit and the indication LED is needed.
- Page 18 relay PCB 12 Drawing: 111 Alarm / Failure Add-on Relay PCB 30A Gre extra potential free NO / NC contact for SV control panels +PS2 -PS1 onn. diagram extra Alarm 122006 Actuator 1 11968 Motor line monitor Ext 3 wire monitor reen 3A Violet +Bat2...
- Page 19 Notes...
