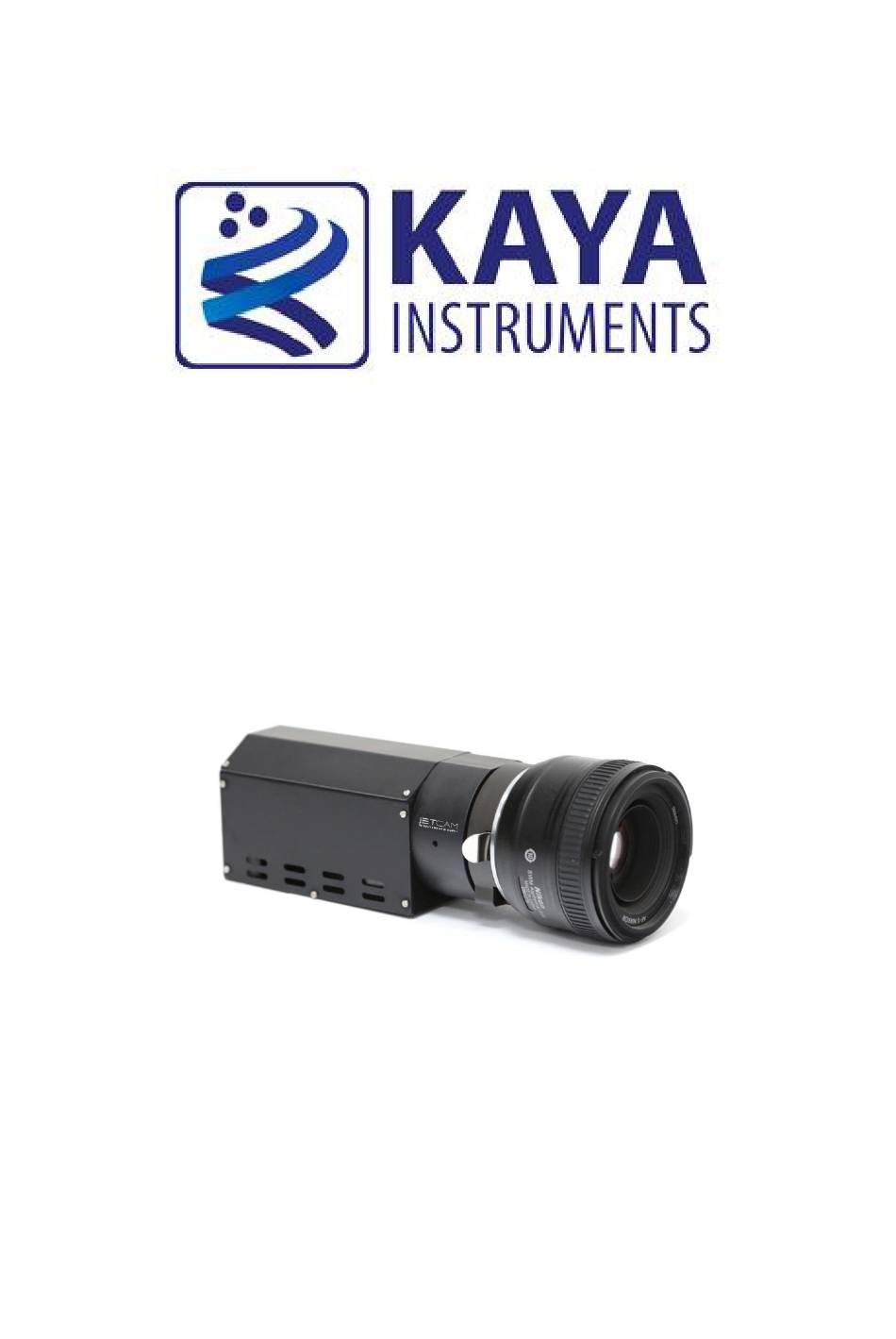

JetCam
High Speed Camera User Guide
(Part-No. KY-JetCam)
July
201
8
2 0 a M e s i l a S t . , N e s h e r 3 6 8 8 5 2 0 , I s r a e l
P O B 2 5 0 0 4 , H a i f a 3 1 2 5 0 0 1 , I s r a e l
T e l : ( + 9 7 2 ) - 7 2 - 2 7 2 3 5 0 0 F a x : ( + 9 7 2 ) - 7 2 - 2 7 2 3 5 1 1
w w w . k a y a i n s t r u m e n t s . c o m
Advertisement
Table of Contents
Related Manuals for KAYA JetCam Series
Summary of Contents for KAYA JetCam Series
- Page 1 JetCam High Speed Camera User Guide (Part-No. KY-JetCam) July 2 0 a M e s i l a S t . , N e s h e r 3 6 8 8 5 2 0 , I s r a e l P O B 2 5 0 0 4 , H a i f a 3 1 2 5 0 0 1 , I s r a e l T e l : ( + 9 7 2 ) - 7 2 - 2 7 2 3 5 0 0 F a x : ( + 9 7 2 ) - 7 2 - 2 7 2 3 5 1 1 w w w .
-
Page 2: Table Of Contents
1 Contents Contents ..................................1 Figures and Tables ............................... 3 Revision History ................................5 Introduction ................................. 6 4.1 Safety Precautions ..............................6 4.2 Disclaimer ................................7 Key Features ................................9 5.1 Overview ................................9 5.2 Areas of Application .............................. 9 5.3 Features .................................. - Page 3 Contents 10.2 JetCam Terminal control ............................33 10.3 JetCam Firmware update ............................34 10.4 Connect and configure the JetCam ........................36 10.5 Detecting the JetCam camera ..........................38 10.6 Starting and controlling acquisition ........................39 10.7 Buffer Replay Mode ............................. 39 10.8 Saving a captured image ............................
-
Page 4: Figures And Tables
2 Figures and Tables Figures 1 : J .................... 13 IGURE AMERA SYSTEM STRUCTURE DIAGRAM 2 : J ..................16 IGURE AMERA SYSTEM CONNECTION DIAGRAM 3 : QSFP+ M ....................19 IGURE ODULE WITH PULL TAB LATCH OPEN 4 : I QSFP+ M .................... - Page 5 Figures and Tables 36 : J 25 Q .............. 52 IGURE UANTUM FFICIENCY URVE FOR ONO AND OLOR 37 : J 25 Q NIR M ..........52 IGURE UANTUM FFICIENCY URVE FOR TANDARD AND 38 : J 19 Q ................. 53 IGURE UANTUM FFICIENCY...
-
Page 6: Revision History
3 Revision History Version Date Notes 13/03/2017 Initial Release 03/08/2017 Added GPIO connector support Updated LED behavior Trigger support via communication link and external GPIO 15/02/2018 UserSet control - camera parameters save/load User Non-volatile memory operation 13/03/2018 Updated GPIO connector pin out 08/04/2018 Added QSFP+ installation instructions 24/04/2018 Updated power connector description Added image processing (gain, offset, LUT) -
Page 7: Introduction
4 Introduction 4.1 Safety Precautions With your JetCam camera in hand, please take a minute to read carefully the precautions listed below in order to prevent unnecessary injuries to you or other personnel or cause damage to property. Before using the product, read these safety precautions carefully to assure correct use. ... -
Page 8: Disclaimer
Even if the product is used properly, KAYA Instruments assumes no responsibility for any damages caused by the following: - Earthquake, thunder, natural disaster or fire resulting from the use beyond our responsibility, acts caused by a third party or other accidents, the customer’s willful or accidental misuse or... - Page 9 Introduction KAYA Instruments assumes no responsibility or liability for: - Erasure or corruption of data arising from use of this product. - Any consequences or other abnormalities arising from use of this product, or damage of this product not due to our responsibility or failure due to modification.
-
Page 10: Key Features
PL mount with integrated lens control (optional) Canon EF lens mount 3G SDI output for local monitor Compatible with KAYA Vision Point Compatible with KAYA Komodo Frame Grabbers Supports Gen<i>Cam standard Customization as per user requirements... -
Page 11: Product Applications
Key Features 5.4 Product Applications Slow Motion Broadcasting Sports analytics and judgment Special Effects Printing inspection High-speed DVRs Defense remote systems Surveillance Related documents and accessories Documents: Vision Point Software Installation Guide ... -
Page 12: System Description
6 System Description 6.1 System Structure The system uses Komodo Fiber Frame Grabber that is able to acquire video directly from fiber optic cables, providing high resolution image acquisition interface for distances up to 80km in single-mode and up to 300m in multi-mode. Link supports standard up to 40 Gbps over fiber optic interface. The JetCam system configuration includes the following parts: One of JetCam Cameras The modules specifications listed in Table 2... -
Page 13: Table 1 : Jetcam Camera System Components
System Description QSFP+ Modules Fiber Cable Vision Point Software and SDK Friendly Software environment, includes Video management, GUI, SDK and API Table 1 : JetCam Camera system components For more information about the system components, please refer the documents listed in the previous section. -
Page 14: Jetcam Camera Available Models
System Description Example of the system is described in Figure 1. Figure 1 : JetCam Camera system structure diagram 6.2 JetCam Camera available models Type JetCam19 JetCam25 JetCam160 Pixel size 10µm 4.5µm x 4.5µm 3.9µm 5T shutter pixel with CDS... - Page 15 System Description Video output Fiber interface up to 40 Fiber interface up to 40 Fiber interface up to 40 Gbps Gbps Gbps CoaXPress up to 25 CoaXPress up to 25 CoaXPress up to 25 Gbps Gbps Gbps 10GiGE up to 10Gbps 10GiGE up to 10Gbps 10GiGE up to 10Gbps Frame rate...
-
Page 16: Table 2 : Jetcam Camera Models
System Description Operating 0°C to 50°C 0°C to 50°C 0°C to 50°C temperature (Optional -40°C) (Optional -40°C) (Optional -40°C) Lens mount F-Mount, B4, C-mount, F-Mount, B4, C-mount, F-Mount, B4, C-mount, PL mount, Canon EF, PL mount, Canon EF, PL mount, Canon EF, custom custom custom... -
Page 17: Installation And Configurations
Komodo Fiber board Fiber QSFP+ Modules Fiber optic cable NOTE: KAYA Instruments doesn’t guarantee compatibility with all computers that have the above specifications. Please, consult KAYA representative for any specific issue 7.2 Installation instructions The typical JetCam system is connected as described in Figure 2:... -
Page 18: Komodo Board Installation
Installation and Configuration The first stage of the system installation is Komodo board installation as described in section 7.2.1 below. The second stage is installation of the QSFP+ modules and fiber cable allowing the connection between the JetCam camera and the Frame Grabber, described in section 7.2.2. The third stage is connection of the camera as described in section 7.2.3. - Page 19 Installation and Configuration correct way of installing and removing a QSFP+ transceiver, as correct operation can protect the module from being damaged and ensure its stable performance. Before removing or installing a QSFP+ module, please follow the precautions and installation instructions.
-
Page 20: Figure 4 : Installing Aqsfp+ M
Installation and Configurations KY-QSFP-CWDM – LC single mode, duplex cable, up to 10km connection over single mode fiber cable 2. Remove the dust plugs from the module as shown in Figure 3. 3. The QSFP+ module has a pull-tab latch that used to remove or install the module. Hold the transceiver so that the identifier label is on the top. -
Page 21: Figure 5 : Connecting The Cable To
Installation and Configurations Connecting the interface cable to QSFP+ Module In order to properly connect the fiber optic cables, the following steps must be taken: 1. Remove the protective dust cover from the fiber-optic cable connector. 2. Insert the fiber cable into the module, as shown in Figure 5. 3. -
Page 22: Completing The Jetcam Installation
Installation and Configurations Figure 7 : Removing a QSFP+ Module from the port Figure 8 : QSFP+ Module with pull tab latch open 7.2.3 Completing the JetCam installation In order to properly complete the JetCam system installation, connect the Power Adaptor to the JetCam power supply connector. -
Page 23: Figure 9 : Jet Camc
Installation and Configurations Single mode fiber KY-QSFP-CWDM LC single mode, duplex QSFP+ cable Allows of up to 10km connection over single mode fiber cable (2 cores) Multi-mode fiber QSFP+ KY-QSFP-3M MTP/MPO multi-mode Allows of up to 300m connection over multi- mode fiber cable (8 cores) Table 3 : JetCam supported QSFP+ modules... -
Page 24: Hardware Reference
8 Hardware Reference 8.1 JetCam unit Hardware Reference This section provides information on JetCam camera unit hardware. It covers architecture, features and pin assignments for various connectors. 8.1.1 JetCam unit LEDs The JetCam unit has several status LEDs, as seen in Figure 10. System status LED Link Status LEDs... -
Page 25: Jetcam Power Connector
Hardware Reference The QSFP+/SFP+ LED are located below the QSFP+\SFP+ connectors. The QSFP+/SFP+ LED behavior is described in Table 5: QSFP / SFP LED state Condition Solid red Camera is up. No connection with the Frame Grabber was established Solid green Link is active. -
Page 26: Sdi Interface Connector
Hardware Reference 8.1.3 SDI Interface connector The JetCam camera supports SMPTE 424M interface standard, 3G-SDI (high-definition serial digital interface) video stream, for digital video transmission over a single-link coaxial cable. The data transmission speed of the system is at 3 Gbps. ... -
Page 27: Jetcam Serial Connector
Hardware Reference 8.2 JetCam Serial connector The JetCam cameras configuration is possible via USB using a serial emulated terminal. The USB connector is shown in Figure 13. Serial Connector Figure 13 : JetCam camera USB connector 8.3 JetCam GPIO connector The JetCam cameras have a GPIO connector that can be used by the user for various purposes. - Page 28 Hardware Reference The following table describes the pin out of the Hirose 6 pin female connector: Pin number Pin description RS232 TX1 RS232 RX1 RS232 TX2 RS232 RX2 12V (output) Table 6 : GPIO connector pin out Used for external exposure indication as well as for the serial communication (can't be used for both at the same time).
-
Page 29: Mount Connection
Hardware Reference 8.4 Mount connection Mount interface confined to JetCam camera where the body allows interchangeable lenses mounts, which are used to connect optical components. The JetCam camera supports the following mount models: Module Description Nikon F-mount Three-lug bayonet mount with a 44 mm throat and a flange to focal plane distance of 46.5 mm. -
Page 30: Mechanical Dimensions
Hardware Reference 8.5 Mechanical dimensions The exact device mechanical dimensions are as defined in Figure 16. For more detailed information please, contact KAYA Instruments representative. Figure 16 : JetCam Mechanical Dimensions High Speed Camera User Guide... -
Page 31: Komodo Fiber Indication Leds
Hardware Reference 8.6 Komodo Fiber indication LEDs Komodo Fiber is equipped with indication bi-color LED for each QSFP+ and SFP+ channel. The LEDs’ different states and behavior are described in Table 8. LED 0 LED 1 LED 2 LED 3 QSFP+ CH 0 LED QSFP+ CH 1 LED QSFP+ CH 2 LED... -
Page 32: Table 9 : Komodo Fiber Board Status Led's
Hardware Reference In additional to SFP+ and QSFP+ links LEDs, the Komodo Board is equipped with status LEDs, their functionality is described in Table 9. LED # Description LED 0 Alive led. Blinks when the board receives clock from PCIe PCIe L0 state. -
Page 33: Electrical Specification
Electrical specification 9.1 Absolute maximum ratings Specification Values 12V power supply -0.3V to 14V Storage temperature -55°C to 125°C Operating ambient temperature 0°C to 50°C (-40°C optional) Table 10 : Absolute maximum ratings 9.2 Absolute maximum ratings for GPIO Specification Minimum voltage [V] Maximum voltage [V] RS232... -
Page 34: Using Jetcam Camera
10 Using JetCam Camera 10.1 Getting Started The Vision Point application is the main interface for all camera setting and configurations. 10.2 JetCam Terminal control A Mini USB port is available for individual link & general information status and firmware update. The port uses a Silabs CP2101 chip. -
Page 35: Jetcam Firmware Update
Using JetCam Camera 10.3 JetCam Firmware update The JetCam Cameras supports firmware update via USB using a serial emulated terminal. To initiate a firmware update follow the next steps: 1. Connect a USB cable between the computer and the camera and acquire connection using Silabs drivers (drivers need to be downloaded manually if an automatic download isn’t initiated). -
Page 36: Figure 19 : Firmware Update Execution
Using JetCam Camera 3. Choose the firmware update option by entering “firmware” followed by a carriage return and wait for the following message: "Now starting firmware update, please start file transfer using XMODEM:" Figure 19 : Firmware update execution 4. Under the “File” tab use the terminal “transfer” capability using the XMODEM protocol to initiate the firmware update. -
Page 37: Connect And Configure The Jetcam
Using JetCam Camera 6. The firmware update process will take about 10 minutes. Figure 22 : Firmware update process 7. A successful update will result in an appropriate message Figure 23 : Firmware update succession 8. To apply the new firmware, the camera should be power cycled by disconnecting the power supply from the camera and connecting it back after a few seconds. -
Page 38: Figure 24 : Vision Pointa
Using JetCam Camera To select a target board: Click the button of the grabber selection combo box located on the Toolbar Menu. When the list of available target boards will open, select the required board/demo mode from the list. ... -
Page 39: Detecting The Jetcam Camera
Using JetCam Camera Allows configuring and controlling the camera via standard Gen<i>Cam interface. a. A Description tab, used to specify the project name and description. b. A Frame Grabber tab, describing FG related information and configurations, e.g. I/O control and hardware information. These are controlled using Gen<i>Cam interface. c. -
Page 40: Starting And Controlling Acquisition
Using JetCam Camera Figure 25 : JetCam description parameters 10.6 Starting and controlling acquisition After JetCam camera was detected and configured, the stream acquisition can commence. In order to start the acquisition, press the button, located in the main toolbar. To stop the acquisition, press the button located in the main toolbar or the picture window. -
Page 41: Saving Video Buffer
Using JetCam Camera Saving video buffer 10.9 In order to save a Video stream, open “File” menu and click “Save video buffer...” option. This will open a save dialog, where you should choose the destination folder and file name. Click “Save” to save the currently captured video in the “Picture Window”. For more detailed information about Vision Point application please refer to Vision Point App User Guide for Acquisition Mode documentation. -
Page 42: Camera Features
11 Camera Features The “Camera” tab is the main interface for all camera settings. JetCam camera adjustments and configurations can be made from the “Camera” tab, as detailed in this section. JetCam camera uses an internal XML that contains the following categories. 11.1 Device Control category Figure 26 : Device Control category 1. -
Page 43: Image Format Control Category
Camera Features 11.2 Image Format Control category Figure 27 : Image Format Control category 1. Sensor width and height 2. Region selector 3. Region mode 4. The Height and the width of the displayed image 5. Offset X/Y 6. Pixel format 7. -
Page 44: Acquisition Control Category
Camera Features 11.3 Acquisition Control category Figure 28 : Acquisition Control category 1. Acquisition can also be controlled trough executing the relevant commands from the “Acquisition Control” category 2. The Frame Rate can be adjusted in steps of 0.01Hz. The camera will modify the exposure time if needed to achieve the desired frame rate. -
Page 45: Isp Features
Camera Features Frame Rate [fps] - rate of output image frames. Defined in units of frames per second. Exposure Time [µsec] - time in microseconds (µsec) in which sensor is exposed to light. This time is subject to the specified image frame rate: 1,000,000 ����������������... - Page 46 Camera Features The Flat-field and Dark-field corrections are used to improve the quality of the image by removing the artifacts that are caused by fixed pattern noise and variations in the pixel-to-pixel sensitivity of the detector. To make Dark/Flat field correction, two pictures should be taken. One with lens closed (offset should be boosted) and one with uniform illumination of around 40%.
-
Page 47: Analog Control Category
3. The X coordinate of the selected defected pixel, in steps of 1, range from 0 to the maximum width of the full frame, minus 1 (i.e. 1919 for JetCam19) 4. The Y coordinate of the selected defected pixel, in steps of 1, range from 0 to the maximum height of the full frame, minus 1 (i.e. -
Page 48: Lut Control
Camera Features Figure 31 : Analog Control category 1. Selection of digital gain a. DigitalAll – add gain to all the colors channels b. DigitalRed – add gain only to the red color channel c. DigitalGreen – add gain only to the green color channel d. -
Page 49: User Set Control Category
Camera Features Figure 32 : LUT Control category 1. LUT color selection : Red, Green, Blue 2. LUT enable 3. LUT color index, in steps of 1, range from 0 to 1023 4. LUT color value, in steps of 1, range from 0 to 1023 11.8 User Set Control category Figure 33 : Saving camera parameter configuration 11.8.1 UserSet - save camera configuration... -
Page 50: User Non-Volatile Memory
Camera Features 11.8.2 User Non-volatile Memory Non-volatile memory is available for user usage. Data save to this memory space will not be erase upon camera power-down. 5. Execute an erase of the entire user memory on the camera 6. Selection of the memory page for saving 7. -
Page 51: Figure 34 : Non -V
Camera Features KYFG_ExecuteCommand(camHandle, UserMemoryBulkErase ) KYFG_SetGrabberValueInt(camHandle, UserMemoryPageSelector , <page[255..0]>) uint8_t buffer[256]; uint32_t bufferSize = sizeof(buffer); KYFG_CameraReadReg(camHandle, 0x30300, buffer, &bufferSize); uint8_t buffer[256]={0,1,2,3/*...*/}; uint32_t bufferSize = sizeof(buffer); KYFG_CameraWriteReg(camHandle, 0x30300, buffer, &bufferSize); KYFG_ExecuteCommand(camHandle, UserMemoryPageSave ) Figure 34 : Non-Volatile memory save function call sequence 1. -
Page 52: Advance Information
12 Advance information 12.1 Color Filter Array The JetCam 25 color sensor is processed with a Bayer RGB color pattern as shown in Figure 35. Pixel (0,0) has a red filter situated to the bottom left. Green1 and green2 have a slightly different spectral response due to (optical) cross talk from neighboring pixels. -
Page 53: Quantum Efficiency
Advance information 12.2 Quantum Efficiency The following figures show the quantum efficiency of the JetCam 25 camera: Figure 36 : JetCam 25 Quantum Efficiency Curve for Mono and Color Figure 37 : JetCam 25 Quantum Efficiency Curve for Standard and NIR Mono High Speed Camera User Guide... -
Page 54: Figure 38 : Jetcam 19 Quantum Efficiency Curve For Mono
Advance information The following figures show the quantum efficiency of the JetCam 19 camera: Figure 38 : JetCam 19 Quantum Efficiency Curve for Mono Figure 39 : JetCam 19 Quantum Efficiency Curve for Color High Speed Camera User Guide... -
Page 55: Appendices
13 Appendices 13.1 Fiber cables Optical fibers are widely used to permits transmission over longer distances and at higher bandwidths than other forms of communication. Fibers are used instead of metal wires because signals travel along them with less loss and are also immune to electromagnetic interference. Fibers that support many propagation paths or transverse modes are called multi-mode fibers (MMF), while those that only support a single mode are called single-mode fibers (SMF). -
Page 56: Figure 41 : Serial Port Setup At Camera Side
Appendices 8. After the camera was detected, under "Cameras" -> "Device Control" -> Serial Port Selector" select "RS232 0" and set the "Serial Port Buad Rate" to 115200. Figure 41 : Serial port setup at camera side 9. Under "Frame grabber" -> Extended Stream Features" -> "Camera selector 0" -> "Device Serial Port Control", set the "Serial Port Selector"... -
Page 57: Figure 43 : Birger Gui Setup 1
Appendices Open the BEI device interface software, select "File" -> "Preferences…" and make sure that in the bottom window ("Select the ports to ignore…") you see "JetCam X: RS232 0 (COM Y)", where X is the JetCam model and Y is the com port selected in the previous section (4e). Do not select anything in this window and click on "Cancel". -
Page 58: Ordering Information
14 Ordering information Item name Item part number JetCam Camera JetCam19/25/160 Komdo Fiber Frame Grabber KY- FGF QSFP+ - single-mode module KY- QSFP-40G85 QSFP+ - multi-mode module KY- QSFP-SR4-40G QSFP+-CWDM single-mode module KY-QSFP-10-CWDM QSFP+ MTP/MPO single-mode Fiber cable X m...
