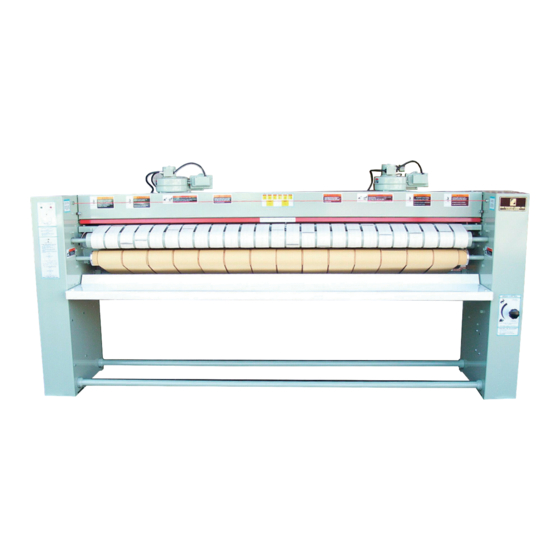

CMV SHARPER FINISH IMPRESS 950 Maintenance, Additional Install, And Service Instructions
  1. Manuals
  2. Brands
  3. CMV SHARPER FINISH Manuals
  4. Iron
  5. IMPRESS 950
  6. Maintenance, additional install, and service instructions

CMV SHARPER FINISH IMPRESS 950 Maintenance, Additional Install, And Service Instructions

Flatwork ironers
Hide thumbs
Table of Contents

Advertisement

Quick Links

sales@cmvsharperfinish.com
www.ironerpeople.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPRESS 950 and is the answer not in the manual?

Questions and answers

Related Manuals for CMV SHARPER FINISH IMPRESS 950

Summary of Contents for CMV SHARPER FINISH IMPRESS 950

  • Page 1 sales@cmvsharperfinish.com www.ironerpeople.com...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION IMPORTANT SAFETY INSTRUCTIONS ......IMPORTANT INSTALLATION INSTRUCTIONS ..... . . Mac h inery Clearanc e s .
  • Page 4 SECTION 3 SERVICE PROCEDURES Feed and Conveyor Ribbon Replacement ......18 Return Ribbon Replac e ment ........20 Compression Roll Cover/Padding Replacement .

  • Page 5: Introduction

    INTRODUCTION C AUT I O N W ARNIN G D ANG E R These symbols alert reader to situations that could cause personal injury, and are shown here in increasing levels of hazard seriousness. W AR NI NG Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 6 IMPORTANT: During the lifetime of the ironer, it will require service. The information contained in the manuals is written and intended for use by qualified service technicians who are familiar with the safety procedures required in the repair of your ironer, and who are equipped with the proper tools and testing equipment.

  • Page 8: Important Installation Instructions

    Trained, qualified personnel must perform all operation, maintenance, and repair of the flatwork ironer only. Adequate lighting, operating, and shutdown instructions must be provided, and all operating and supervising personnel must be thoroughly instructed in safe operating practices. IMPORTANT INSTALLATION INSTRUCTIONS 1.
  • Page 10 Compression Roll Pad or Pressure Roll Pad: Compression Roll Cover or Pressure Roll Cover:...
  • Page 11 25) Frame: The metal enclosures at each end of the ironer. The left frame contains most of the electrical and utility components. The right frame contains the drive system. 26) Folding Conveyor: The conveyor that oscillates to fold the flatwork. 27) Intermediate Conveyor: The conveyor or pinch rolls that suspend the flatwork above the folding conveyor so that it may be folded.

  • Page 12: Start Up And Shut Down Procedures

    START UP AND SHUT DOWN PROCEDURES These procedures should be used at all times to properly start and stop the ironer. SHUT DOWN To obtain long life and reliability from the flatwork ironer, use the following procedures when shutting down the machine. 1.

  • Page 13: Elec T R Ic A Lly Heated Model

    ELECTRIC HEATED 1. Check that the circuit breaker for the ironer is turned on; then press the start button to energize the drive system, vent system blower motor (if equipped), and the electric heating elements. NOTE: Heat build-up can shorten flatwork ironer life if allowed to continue. Keep machine busy to avoid prolonged heat build-up.

  • Page 14: Introduc T I On

    Feed Ribbons When New Should not be too tight. New feed ribbons will shrink. Keep 1” play in feed ribbons.

  • Page 15: Adjustments

    ADJUSTMENTS Feed Ribbon Drive Roll adjustment 1) There are adjustment nuts on each feed ribbon drive roll bearing.  Adjust each nut equally so that there is 1” play in the feed ribbon.

  • Page 17: Flatwork Does Not Iron Properly

    Table 2-2 Problem: Flatwork does not properly iron or dry. 1. Is heated cylinder temperature correct? Consult Operation Manual for suggested operating temperatures. 2. Has flatwork excessive moisture? Increase extraction time or pre-dry flatwork. Is flatwork too dry? Reduce dryer conditioning time because to properly iron flatwork (just like hand ironing), heat, pressure, and moisture are required.

  • Page 18: Gas Model Generates Excessive Heat

    2. Check if wire connection from thermostat to system control (module) 25V is correct. Check if 2A fuse of module is blown. Secure ignition cable. 3. Start machine and turn on thermostat. Check if spark is generated if not, replace system control (module).

  • Page 19: Electric Model Fails To Heat Properly

    A A A A A A A A W AR NI NG W AR NI NG The gas used as fuel by ironers is extremely flammable. To reduce the risk of fire or explosion, The gas used as fuel by ironers is extremely flammable. To reduce the risk of fire or explosion, only an experienced and knowledgeable person is recommended to perform service.

  • Page 20: Electric Model Generates Excessive Heat

    6. Check heating elements. Disconnect power and check each element with a continuity tester (no continuity indicates a bad element). Replace any defective element(s). Table 2-9 Problem: Electrically Heated Model generates excessive heat. 1. Check the vent and airflow situation. Is there something restricting the airflow? Is the blower motor working properly? Is the exit CFM the same as the blower? Is machine vented independently? (See Table 2-4, #1).

  • Page 21: Built-In Folder Does Not Operate Properly

    1. Feed ribbons may have shrunk due to moisture in the linen or laundry room. Adjust (loosen) feed ribbon drive roll (on both sides). If feed ribbons appear too loose later, adjust (tighten) feed ribbon drive roll back. However, do not overtighten. NOTE: take measurements on both sides of roll to assure equal distance on ribbons.
  • Page 23 Figure 3-1...

  • Page 24: Return Ribbon Replac E Ment

    3-2 RETURN RIBBON REPLACEMENT (Figure 3-2) Replace return ribbon when fraying, stretching, or slipping of one or more ribbons becomes evident. NOTE: Feed, return, and conveyor ribbons will stretch during use. To avoid creating an uneven strain on the conveyor rolls and breaking the new ribbons, the first replacement of these ribbons as a set is recommended.
  • Page 25 Figure 3-2 W ARNING W ARNING Electricity, heat, and pressure are present in potentially harmful quantities in an operating ironer. Electricity, heat, and pressure are present in potentially harmful quantities in an operating ironer. Never attempt repairs on an ironer during operation. Never attempt repairs on an ironer during operation.
  • Page 26 Figure 3-3...
  • Page 27 W ARNING The following procedure will bypass the finger guard switch on this machine. Before continuing with Steps 3 through 7, we strongly recommend that this work be performed by a trained maintenance person to avoid possible serious injuries. As stated above, the machine becomes potentially harmful to personnel when the finger guard switch is disconnected or bypassed.

  • Page 28: V-Belt Replacement

    5. Press the start button to start the machine. Let the pad wrap around the pressure roll so 6” of the trailing edge is left (see2, Figure 3-3). 6. Follow steps 1 through 9 in the “Install Outer Cover Cloth” Section. 7.

  • Page 29: Canopy Blower Replacement

    12. Defective V-belt may now be moved between speed reducer pulley (Item 17) and coupling half (Item 16). 13. Install replacement V-belt of identical size and type by reversing above procedure. NOTE: Return left hand nut (Item 15) to exact position and securely tighten hex socket set screws (Item 6 and 7).
  • Page 30 Figure 3-4 W ARNING Electricity, heat, and pressure are present in potentially harmful quantities in an operating ironer. Never attempt repairs on an ironer during operation. 1. Shut off the machine using the procedure outlined in the Introduction. 2. Disconnect all electrical power, lock out, and tag with a sign that repairs are in progress. 3.

  • Page 31: Ventilation System

    4. Remove screws holding the switch to the bracket (if applicable). Remove the feed ribbon next to the monitoring system switch to gain access to the switch bracket. NOTE: Do not remove or adjust the bracket position. 5. Install replacement switch of identical size and type by reversing the procedure and proceed to Step 6.

  • Page 32: Rotary Pressure Joint/Steam Hose Replacement

    W ARNING Do not operate gas-heated ironers without a canopy blower. Operation of gas machines without a canopy can cause deadly gases to flow into the operator’s area. The ironer vent must not be shared with other equipment. Adequate make up air for operator breathing must be provided to replace the air removed by the exhaust blower.

  • Page 33: Heater Element Replac E Ment

    8. Start up the machine using the procedure outlined in the Introduction. Check all steam lines and the rotary pressure joint using soap and water solution painted on all con- nections. If no leaks are present, normal operation can be resumed. 3-9 HEATER ELEMENT REPLACEMENT (Electric Model Only) (See Figure 3-5) The electrically heated flatwork ironer is equipped with 3, 4, or 9 tubular radiant elements, depending upon model.

  • Page 34: Folder Operation

    Figure 3-5 3-10 FOLDER OPERATION (Models With Built-In Folder Only) 16”, 20”, and 24” Model: A folding and transfer conveyor provide a primary accordion fold that is 18” (46 cm) wide. The folding conveyor is driven by clutches, which are connected by roller chain and sprockets, to the main drive system.

  • Page 35: Clutches

    The Finish Master folds the flatwork one piece at a time. The flatwork is discharged from the ironer section onto the folding conveyor by the return ribbons. As the flatwork leaves the transfer conveyor and falls onto the folding conveyor, signal switches are activated which energize the switches located at each end of the folding conveyor.

  • Page 36: Valve And Air Adjus T M Ents

    7. Remove the bolts securing the clutch support bracket. Slowly pull the bracket and bearing off the clutch shaft while supporting the clutch with your hand. 8. Loosen the set screw locking the clutch to the shaft and slowly pull the clutch from the shaft, retaining the shaft key.

  • Page 37: Sys T E M Control Operation

    2. Remove metal clamps at the end of each return ribbon drive roll. 3. Remove old drive roll cover. 4. Clean off the drive roll using a non-flammable solvent. 5. Fit the new cover on the drive roll. Cut off excess material. 6.

  • Page 38: Startup And Checkout

    START THERMOSTAT CALLS FOR HEAT COMBUSTION AIR CHECK TRAIL FOR IGNITION: Control Module starts trail for ignition. POWER INTERRUPTION System shuts off. Restarts when power is restored. SPARK GENERATOR POWERED Main valve operators open. If no spark, control module goes into lockout after timing period. System must be reset.
  • Page 40 b) Start System 1. Turn on the power and the gas supply. 2. Set thermostat to call for heat and watch for spark at the igniter. Time the length of the spark operation; it must be within 15 seconds. 3. Check that the system starts as follows: Spark turns on, gas valve opens at once, and burner ignites after gas reaches the main burner.
  • Page 41 d) Make certain that all wiring connections are clean and tight. e) Check ceramic insulator on flame sensor or spark igniter. A cracked insulator will allow current to leak to ground. Replace device if insulator is cracked. f) Check the flame sensor and its mounting bracket. Correct the position if bent out of shape.

  • Page 42: Automatic Valve Combination Gas Control

    2. Restart the system and read the meter. The flame sensor circuit must be at least 1.5 uA and steady. If the reading is less than 1.5 uA or unsteady, see Low or Unsteady Flame Current section below. d) Low or Unsteady Flame Current If the current to the control module is less than 1.5 uA or is unsteady, check the burner flame and flame sensor location and electrical connections as follows: 1.
  • Page 43 START NOTE: Before troubleshooting, familiarize yourself with the start up and checkout procedure. 1) TURN THERMOSTAT TO CALL If no power, check line voltage power, low voltage FOR HEAT. TURN GAS SUPPLY transformer, limit controller, thermostat and wiring. Also OFF POWER TO CONTROL check air-proving switch.
  • Page 44 C AU TIO N 1. Shut off gas during installation. Turn off main gas supply and wait for unburned gas to vent. 2. Disconnect power supply before connecting wiring to prevent electrical shock or equipment damage. 3. Do not remove seal over control inlet or outlet until ready to connect piping. 4.

  • Page 45: Startup And Checkout

    c) Wiring Follow circuit diagram provided by appliance manufacturer. Disconnect power supply before making wiring connections to prevent electrical shock or equipment damage. All wiring must comply with local electrical codes and ordinances. Never apply a jumper across (or short) the valve coil terminals, even temporarily (Figure 3-12). This may burn out fuse in control module or heat anticipator in thermostat.

  • Page 47: Service

    C AU T IO N C AU TI O N Do not exceed input rating stamped on appliance nameplate, or manufacturer recommended Do not exceed input rating stamped on appliance nameplate, or manufacturer recommended burner orifice pressure for size orifice(s) used. Make certain primary air supply to main burner orifice pressure for size orifice(s) used.

  • Page 48: Thermostat/Contac Tshoe Replacement

    2. Press “Push to Start” button. W AR NI NG Never attempt to remove a ribbon from an operating machine. Always shut down the machine before attempting to remove ribbons, jammed flatwork, or foreign materials. W AR NI NG Electricity, heat, and pressure are present in potentially harmful quantities in an operating ironer.

  • Page 49: Compression Roll Drive Belt

    6. Remove the old thermostat from the frame. The screws are located behind the knob. 7. Carefully unravel the new thermostat’s sensing tube. Be sure not to kink the sensing tube. Insert the sensing bulb and tube through the hole in the frame and secure the thermostat base to the frame.

  • Page 50: Guide Tape Replacement

    W ARNING W ARNING Electricity, heat, and pressure are present in potentially harmful quantities in an operating Electricity, heat, and pressure are present in potentially harmful quantities in an operating ironer. Never attempt repairs on an ironer during operation. ironer. Never attempt repairs on an ironer during operation. 4.

  • Page 51: Pressure Switch

    3-19 PRESSURE SWITCH Gas models built with a Honeywell Model C645B pressure switch will not operate if the gas pressure exceeds the factory settings. When the gas pressure rises to the set point, the switch breaks a circuit and must be manually reset after the pressure falls below the set point.
  • Page 52 REMEMBER TO ORDER “EASY WAX” SPRAY WAX BY THE CASE, SO YOU DON’T RUN OUT!
  • Page 53 sales@cmvsharperfinish.com www.ironerpeople.com CMV M.S.M. - 1...
