Summary of Contents for MASCAR TUAREG-CUT 525
- Page 1 Vor Inbetriebnahme der Maschine die Bedienungsanleitung lesen...
-
Page 2: Table Of Contents
INDEX 4.10 HARVESTING ROLL (Pick-up) ....23 4.11 CUTTING DEVICE........23 4.11.1 REPLACEMENT OF KNIVES ....24 SECTION 1 ........4 4.12 IN WORKING ..........24 Description and main features ....4 4.13 FLOODING OF THE MACHINE ....25 PRESENTATION ..........4 4.13.1 REGOLAZIONE DENSITÀ... - Page 3 TUAREG –TUAREG CUT 525-555 ROUND BALER Details mentioned in the identification plate Machine model Serial number Year of production Machine weight Authorised MASCAR repair centre to contact for service in USE AND MAINTENANCE MANUAL - 3 -...
-
Page 4: Section 1
Should it be damaged or lost, apply to the Baler, hereinafter also referred to as the Manufacturer for a new copy without delay. machine, is manufactured by MASCAR of Grumolo delle Abbadesse (Vicenza) Italy, 1.1.1 INTENDED USERS OF THE hereinafter referred to more simply as the MANUAL Manufacturer. -
Page 5: Exclusion From Warranty
Tuareg Round Baler alterations. manufactured by MASCAR is a machine 4. In the event the instructions featured in bearing the CE marking in conformity this manual have not been followed. with the provisions of the directive Neither shall the warranty cover any... -
Page 6: Use For Which The Machine Is Not Designed

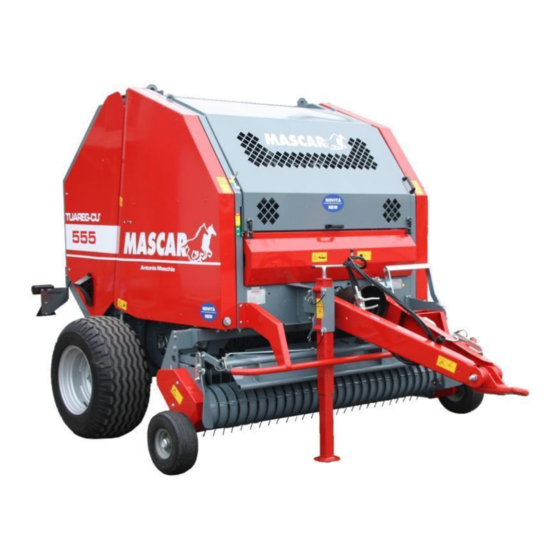

TUAREG –TUAREG CUT 525-555 Round baler A single operator seated in the tractor seat can perform the various operations SOUND LEVEL The sound level (airborne noise) • has been measured with the machine running WHICH unladen, giving the following results: MACHINE - Sound pressure level LpAm (A) ..... - Page 7 TUAREG –TUAREG CUT 525-555 Round baler Fig.1 – View overall machine with its main groups 1. Rear door for unloading bales 2. Rear light 3. Wheels 4. Wheels on pick-up (PICK-UP) 5. Harvesting roll (PICK-UP) 6. Standing foot 7. Towing link/draw bar with adjustable height 8.
-
Page 8: Technical Data
TUAREG –TUAREG CUT 525-555 Round baler TECHNICAL DATA MODEL TUAREG 525 TUAREG-CUT 525 Chamber type Fixed Fixed Bale dimension (cm) 120x125 120x125 Chamber system Rolls+chains Rolls+chains Rolls numbers Cross bar number Teeth cutting number Cutting length (cm) Minimum power Kw(CV) 53 (70) 53(70) Harvesting width pick-up (cm) - Page 9 TUAREG –TUAREG CUT 525-555 Round baler MODEL TUAREG 555 TUAREG-CUT 555 Chamber type Fixed Fixed Bale dimensions (cm) 120x155 120x155 Chamber system Rolls+chains Rolls+Chains Rolls numbers Cross bars Number cutting teeth Cutting length (cm) Minimum power Kw(CV) 53 (70) 53(70)
-
Page 10: Section 2
TUAREG –TUAREG CUT 525-555 Round baler SECTION 2 Safety and accident prevention WARNING The WARNING symbol warns the reader that, if SAFETY the operations described are not performed properly, this may result in serious bodily injury, death or long-term health hazards. The user is responsible for making sure the personnel is instructed on the hazards deriving from accidents,... -
Page 11: General Safety Rules
TUAREG –TUAREG CUT 525-555 Round baler used properly. The fitting of parts of a different make or any modifications may alter the machine’s features and hence compromise operating safety. In this case, therefore, the GENERAL SAFETY RULES Manufacturer declines all responsibility for any damage that might be caused as a result of the use of non-original spare parts. - Page 12 TUAREG –TUAREG CUT 525-555 Round baler the brake is pulled on, and disengage the likewise when the parking brake is not pulled power takeoff. - During the machine’s operation, it is strictly - If, for any reason, work must be performed with forbidden to let any part of your body get near the rear gate open, it is essential that both the moving mechanical parts.
-
Page 13: Safety Signs
TUAREG –TUAREG CUT 525-555 Round baler The operating instructions contained in this residual hazards involved in the use of the manual must be read and committed to machine, i.e. those hazards that it has not been memory, and the manual itself kept safe for possible to eliminate altogether owing the specific the entire service life of the actual machine. -
Page 14: Clothing
TUAREG –TUAREG CUT 525-555 Round baler open rear gate. 2.5 ECOLOGY AND POLLUTION 11) Hooking points, for lifting the round baler. Paragraph ―1.6 Noise level‖ contains the See ―Section 3 – Transportation and handling‖ values of the airborne noise measured on the for their location. - Page 15 TUAREG –TUAREG CUT 525-555 Round baler Fig. 4 – Safety signs and their location on the machine USE & MAINTENANCE MANUAL - 15 -...
-
Page 16: Section 3
TUAREG –TUAREG CUT 525-555 Round baler SECTION 3 Transport and handling TRANSPORT AND HANDLING 3.1.1 GENERAL WARNINGS CAUTION Should the machine be approved for driving on public roads, follow the traffic laws of the Highway Fig.5 – Lifting points Code in force in the country where the machine is used. - Page 17 TUAREG –TUAREG CUT 525-555 Round baler The surface onto which the machine is to be loaded must be perfectly fault to avoid the load shifting DANGER about. Control before starting and working that the axle must be in correct position and that the Loading using loading ramps.
-
Page 18: Section 4
TUAREG –TUAREG CUT 525-555 Round baler vicinity of the baler’s range, and that the power takeoff is disengaged. SECTION 4 Make sure the round baler is in a stable, horizontal position and that the tractor’s Operating instructions towing hitch is positioned at the same height as the towing eye of the drawbar (2 Fig. -
Page 19: Shaft
TUAREG –TUAREG CUT 525-555 Round baler P.T.O. SHAFT DANGER The P.T.O. shaft applied to a tractor is a mechanic part that, when in operation, constitutes a potential source of bodily harm anyone working nearby. Consequently, great care must be taken when performing any operations involving said mechanical part. -
Page 20: Hydraulic Connection
TUAREG –TUAREG CUT 525-555 Round baler HYDRAULIC CONNECTION WARNING before do operations stating under the pick- up lifted, close the tap and avoid the lowering with a proper support. ELECTRIC INSTALLATION The baler is equipped of lights installation. It is necessary that the tractor has an electric plug of 12 Volt, to which insert the feeding plug electric light circuit of baler. -
Page 21: Twine Binding
TUAREG –TUAREG CUT 525-555 Round baler TWINE BINDING Fig. 14-Twine binding The pulley is equipped of 3 grooves. On the basis of groove chosen increase or decrease the pass of twine wind around the cylindrical bale. Pulley diameter Winding pass Tight Fig. -
Page 22: Net Binding
TUAREG –TUAREG CUT 525-555 Round baler Fig. 16- Side adjusting NET BINDING For preparing the machine to net binding it necessary: 1 – Fit in the net reel in the proper support net Fig. 18 Schema rete pipe ( Fig 17), and settle it in order that the net follows the shame like indicated in Fig. -
Page 23: Rearmement Of Knife Net Binding
TUAREG –TUAREG CUT 525-555 Round baler Tab. 1 4.9.1 REARMEMENT OF KNIFE NET BINDING (Fig. 19) Fig. 19 Rearmament knife The rearmament of net binding’s knife is through the steel rope (1) when the rear door is opening, if don’t happen this, operate on the nut placed near the hinge of door Fig. -
Page 24: Replacement Of Knives
TUAREG –TUAREG CUT 525-555 Round baler 4.12 IN WORKING For the operation of harvesting and pressing, it is necessary: - Connect the baler to the tractor like described to paragraph «4.2 – Linkage to tractor ». - Low the harvesting roll (pick-up) at the working height required, control that the twine or net are installed on the binding device. -
Page 25: Flooding Of The Machine
TUAREG –TUAREG CUT 525-555 Round baler the next bale. In case of big windrows is Fig. 23- lever for flooding suggested to decrease the speed and increase the rpm of P.T.O. shaft. 4.13.1 REGOLAZIONE DENSITÀ ROTOBALLA 4.13 FLOODING OF THE MACHINE The baler is equipped of a graduated staff and manual adjustment (1 Fig. -
Page 26: Slopes Admited
TUAREG –TUAREG CUT 525-555 Round baler Lay the standing foot to the soil. - Fix the wheels with proper stumps and assure that all the present protections on the machine is in correct position. - Stop the tractor and insert the stationary brake. -
Page 27: Controls And Test
TUAREG –TUAREG CUT 525-555 Round baler P.T.O. shaft support: the function of support is to keep it when the machine is stationary. The machine cannot put in function or transported when the P.T.O. shaft is connected to this support. 4.18 CONTROLS AND TEST Control the correct locking of screws and that all the components are fixed properly. -
Page 28: Section 5
TUAREG –TUAREG CUT 525-555 Round baler following the indication of switch board SECTION 5 STARTING Instructions for harvesting Starting with a narrow windrow When the windrow is narrow it is necessary to feed the baler going to the sides and not to the centre. -
Page 29: Stop Of Baler
TUAREG –TUAREG CUT 525-555 Round baler The bale ejector is used for putting away the - Disengage the feeding cables from the electric bale during the unloading phase and for allowing installation. closing the rear door without having done before - Take off the tractor from the draw bar of baler. -
Page 30: Section 6
TUAREG –TUAREG CUT 525-555 Round baler Manufacturer and of the use & maintenance manual included. SECTION 6 Maintenance MAINTENANCE CUTTING SYSTEM TUAREG-CUT) Control periodically the wear statement of knives MAINTENANCE installed in the cutting system (Fig. 19) . These knives can be sharpened again, or if worn can be Here below are mentioned the different operations replaced. -
Page 31: Every 8 Working Hours
TUAREG –TUAREG CUT 525-555 Round baler that the oil goes to the box; EVERY 8 WORKING HOURS - At the end of operation, shut again the plug of - Control the general statement of baler. discharging; - Verify the wear statement of knives. - Unscrew the plug of level and insert the new oil - Make a complete greasing operation of all the through the hole of filling plug. - Page 32 TUAREG –TUAREG CUT 525-555 Round baler season. In case of demolishing of machine, follow the antipollution rules and in particularly, take away the oils and the different elements function their components. USE & MAINTENANCE MANUAL - 32 -...
-
Page 33: Hydraulic Scheme
TUAREG –TUAREG CUT 525-555 Round baler 6.12 HYDRAULIC SCHEME MEANING MEANING Tractor (single acting) Max 210 bar Tractor (single acting) Max 210 bar Tractor (single acting) Max 210 bar Rear door openning cylinder Pick-up cylinder Knives insertion cylinder USE & MAINTENANCE MANUAL - 33 -... -
Page 34: Inconveniences And Remedies
TUAREG –TUAREG CUT 525-555 Round baler 6.13 INCONVENIENCES AND REMEDIES INCONVENIENCE CAUSE REMEDY Excessive chain’s rumour -Restore the oil’s level -Low lubrication The chamber don’t close correctly -Hydraulic inconvenience -Control the installation - There are material residuals that -Remove the residuals block the closing Closing hooks not synchronised -Bar of hooks connection not set... - Page 35 TUAREG –TUAREG CUT 525-555 Round baler -Sensor doesn’t function -Replace the sensor -Action the hydraulic device Product doesn’t cut correctly -Blades not inserted -Hydraulic installation doesn’t work -Control the position on the hydraulic switch USE & MAINTENANCE MANUAL - 35 -...
-
Page 36: Section 7
TUAREG –TUAREG CUT 525-555 Round baler - Production year. Code of the part you need (you will find it in the spare parts book), description and SECTION 7 quantity. In case that this voice isn’t - Transport device. Spare parts mentioned, the Manufacturer doesn’t reply in case of delay in the delivery. - Page 37 MASCAR S.p.A. Via Roma, 82 – 36040 Grumolo delle Abbadesse (Vicenza) Italy Tel. +39 0444 380180 – Fax +39 0444 583831 - 380185 E-mail : info@mascar.it...
