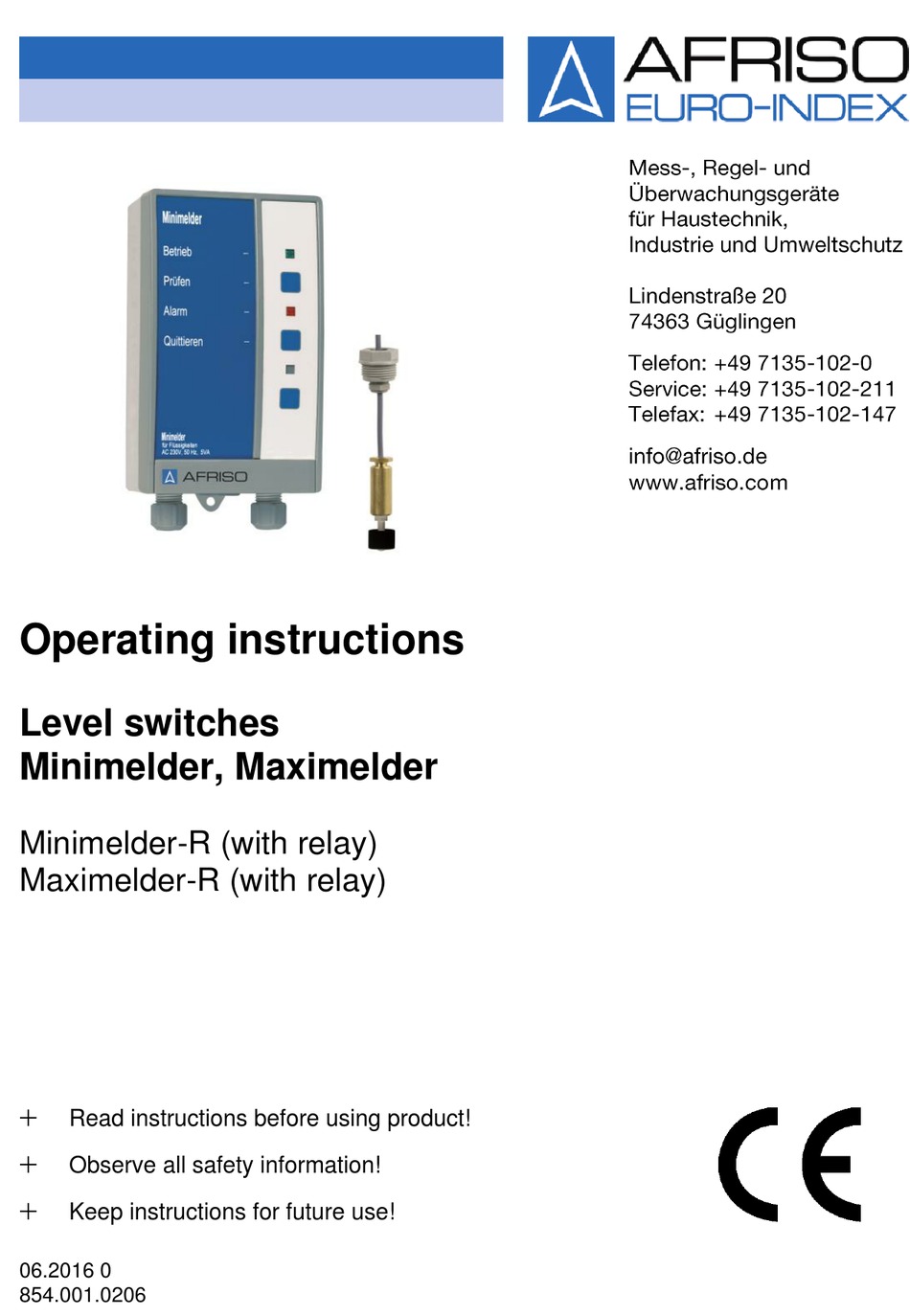

- Page 1 Operating instructions Level switches Minimelder, Maximelder Minimelder-R (with relay) Maximelder-R (with relay) Read instructions before using product! Observe all safety information! Keep instructions for future use! 06.2016 0 854.001.0206...
-
Page 2: Table Of Contents
11 Decommissioning, disposal ................... 26 ® 12 General information on EnOcean wireless ............27 ® 12.1 Range of EnOcean wireless ..............27 ® 12.2 Additional information on EnOcean wireless systems ......30 ® 12.3 Features of the EnOcean technology ............30 Minimelder-R, Maximelder-R... - Page 3 13 Spare parts and accessories ................. 31 14 Warranty ........................ 31 15 Copyright ....................... 31 16 Customer satisfaction .................... 31 17 Addresses ......................31 Minimelder-R, Maximelder-R...
-
Page 4: This Instruction Manual
WARNING Possibly imminent danger! Failure to observe the information may result in death or severe injuries. CAUTION Dangerous situation! Failure to observe the information may result in minor or severe injuries as well as damage to property. Minimelder-R, Maximelder-R... -
Page 5: Safety
Safety Safety Intended use Minimelder/Maximelder may only be used to signal minimum levels and maximum levels in tanks containing liquids. Minimelder/Maximelder may only be used for the following liquids: Water Fuel oil EL, L or M Oil/water mixtures... -
Page 6: Safe Handling
Usage of spare parts and accessories Usage of unsuitable spare parts and accessories may cause dam- age to the product. Use only genuine spare parts and accessories of the manufac- turer (see chapter 13, page 31). Minimelder-R, Maximelder-R... -
Page 7: Liability Information
Minimelder/Maximelder consists of a control unit and a probe. The control unit and the probe are connected by means of a two-wire signal cable. Minimelder triggers an alarm when the probe is no longer sub- merged. Maximelder triggers an alarm when the probe is sub- merged. - Page 8 The magnet is embedded in a float. The float moves up when the probe is submerged in a liquid. The factory set- ting of the magnet in the float causes Minimelder to switch when the probe is no longer submerged and Maximelder to switch when the probe is submerged.
-
Page 9: Function
Minimelder If the probe of Minimelder is not submerged in liquid, the alarm buzzer and the red alarm lamp are activated. If the probe is sub- merged in liquid, the alarm buzzer and the red alarm lamp are deac-... - Page 10 If a leak has occurred in the meantime, this is signalled. The green pilot lamp lights up as soon as Minimelder-R and Max- imelder-R are supplied with mains voltage. The Test button allows you to simulate an alarm condition in order to perform a function check.
-
Page 11: Operating Modes
Product description Operating modes Eco: Minimelder-R and Maximelder-R are equipped with an output relay to transmit the alarm signal to additional external equipment. If no error condition is present, the relay is de-energised; in case of an alarm, the relay is energised. -
Page 12: Technical Specifications
Water, oils Connection cable: Oilflex 2 x 0.5 mm² Standard length Max. length 50 m (shielded) Operating temperature range Ambient -5 °C to +50 °C Storage -10 °C to +60 °C Supply voltage Probe voltage Max. 17 V, AC Minimelder-R, Maximelder-R... - Page 13 Nominal power 5 VA Mains fuse T 100 mA H (1.5 kA) Electrical safety Protection class (EN 60730-1) Degree of protection IP 30 (EN 60529) Electromagnetic compatibility (EMC) Interference EN 60730-1:2011 Noise immunity EN 60730-1:2011 ® EnOcean wireless Minimelder-R, Maximelder-R...
-
Page 14: Approvals, Tests And Conformities
M20. Cable gland Cable diameter 4.0-8.8 mm 8.0-12.5 mm Approvals, tests and conformities Minimelder/Maximelder complies with the EMC Directive (2014/30/EU), the Low Voltage Directive (2014/35/EU) and the RoHS- Directive (2011/65/EU). ® Minimelder/Maximelder with EnOcean wireless module also com- plies with the Telecommunication Directive 1999/5/EC. -
Page 15: Mounting And Commissioning
The control unit must not be installed in damp rooms. The permissible ambient temperature at the control unit must not be exceeded, see table 2, page 13. Protect the control unit from direct atmospheric influences if it is installed outdoors. Minimelder-R, Maximelder-R... - Page 16 Ø 5 mm drill. 2 Fit the control unit. Mount the bottom part to the wall 3 Fixate the control unit by screwing the with the screws shipped with the bottom lug to the wall. unit. Minimelder-R, Maximelder-R...
-
Page 17: Mounting The Probe
Mount the probe in such a way that it is suspended at the height/level of the required switching point. The probe can be fastened by means of the enclosed G 1" screw connector. The probe weight ensures that the probe is suspended vertically in the liquid. Minimelder-R, Maximelder-R... -
Page 18: Electrical Connection
Fig. 6: Electrical connection Power supply Connect Minimelder/Maximelder to mains by means of a permanent- ly installed cable such as NYM-J 3 x 1.5 mm². Route the mains cable through the right cable gland into the control unit. - Page 19 "Probe" in the control unit. You do not have to ensure a specific polarity. Output The output signal of Minimelder-R and Maximelder-R leak detector is made available via a voltage-free relay contact (normally open con- tact). If no error condition is present, the relay is de-energised; in case of an alarm, the relay is energised.
-
Page 20: Retrofitting An Enocean
Mounting and commissioning ® Retrofitting an EnOcean wireless module (optional) Disconnect Minimelder-R/Maximelder-R from mains voltage. Open the cover of the control unit (see chapter 6.1, page 15). CAUTION Damage to the electronic components due to electrostatic dis- charge Take precautions when handling components that can be damaged by electrostatic discharge. - Page 21 All pins must be inserted into the female connector. Do not bend the pins. ® Push the antenna of the EnOcean wireless module into the three housing openings of the control unit. Close the cover of the control unit (see chapter 6.1, page 15). Minimelder-R, Maximelder-R...
-
Page 22: Teaching In The Enocean
Maximelder triggers an alarm if the level exceeds a maximum level. The opera- tion of Minimelder/Maximelder is limited to its regular monitoring: The green pilot lamp is on. -
Page 23: Commissioning The Product
Perform a function test at least once per year. At the probe Remove the probe of Minimelder from the liquid. Submerge the probe of Maximelder into a liquid. The red alarm lamp must immediately light up and the audible alarm must sound. -
Page 24: Maintenance
Maintenance Maintenance Minimelder-R/Maximelder-R are safety equipment; if damaged, they may only be repaired by the manufacturer. Maintenance times Table 4: Maintenance times When Activity Annually Perform a function test, see chap- ter 7.2, page 23. At regular intervals... -
Page 25: Suitability For Use In Flood Hazard Areas
Switch on the mains voltage. Suitability for use in flood hazard areas Minimelder-R/Maximelder-R can withstand floods up to a maximum water column of 10 m and a pressure of 1 bar. The products do not have to be replaced after a flood. -
Page 26: 11 Decommissioning, Disposal
Red alarm lamp is Interruption in the Check signal ca- always on, even if signal cable, the ble, probe and the Minimelder(- probe or the control control unit R) probe is sub- unit merged in liquid or the Max-... -
Page 27: General Information On Enocean Wireless
People and obstacles in a room may reduce the range. Some reserve must therefore be included when planning range to achieve reliable operation of the wireless system even in unfavoura- ble conditions. A robust and reliable installation in buildings is achieved by sufficient range reserve. Minimelder-R, Maximelder-R... - Page 28 However, the range may be considerably reduced, depending on the location. An additional repeater at a suitable location can offer alter- native radio paths. Minimelder-R, Maximelder-R...
- Page 29 > 50 cm. Transmitters, on the other hand, can be installed without any prob- lem next to other transmitters and interference sources. Use of repeaters In the case of poor reception, it may be helpful to use a repeater. Minimelder-R, Maximelder-R...
-
Page 30: Additional Information On Enocean Wireless Systems
Wireless standard Wireless technology AN001 AN102 AN103 ® 12.3 Features of the EnOcean technology ® Visit www.afriso.de/afrisolab for a brochure on the EnOcean tech- nology. Visit AFRISO's YouTube channel for additional videos on AFRISO products. Minimelder-R, Maximelder-R... -
Page 31: Spare Parts And Accessories
Customer satisfaction is our prime objective. Please get in touch with us if you have any questions, suggestions or problems concerning your product. 17 Addresses The addresses of our worldwide representations and offices can be found on the Internet at www.afriso.com. Minimelder-R, Maximelder-R...
