Cisco C9600-LC-24C Installation Note

Cisco Catalyst 9600 Series Line Card Installation
Note
First Published: 2019-04-15
Last Modified: 2019-12-20
Overview of Cisco Catalyst 9600 Series Line Cards
This document describes the features of a Cisco Catalyst 9600 Series line card. It also provides information
about how to correctly install or replace a line card in the chassis.
Table 1: Supported Line Cards
Product ID
C9600-LC-48YL
C9600-LC-24C
C9600-LC-48TX
1
Features of Cisco Catalyst 9600 Series Line Cards
The following sections describe the major features available on the line cards that are supported on Cisco
Catalyst 9600 Series switches. The document also explains the front view of the line cards and the different
LEDs available.
Cisco Catalyst 9600 Series 24-Port 40 G/1 G/12-Port 100 G (C9600-LC-24C)

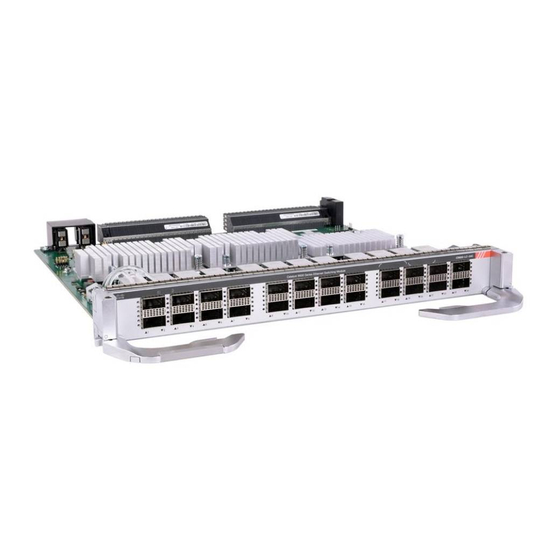

The following figure shows the front view of a Cisco Catalyst 9600 Series 24-port 40 G/1 G/12-port 100 G
(C9600-LC-24C) with major features identified.
Description
Cisco Catalyst 9600 Series 48-port 25 G
Cisco Catalyst 9600 Series 24-port 40 G/1 G or 12-port 100 G
Cisco Catalyst 9600 Series 48-port 10 G, 5 G, 2.5 G, 1 G, 100 Mbps, or 10 Mbps
G stands for Gigabit Ethernet.
1
or 10 G or 1 G
Cisco Catalyst 9600 Series Line Card Installation Note
