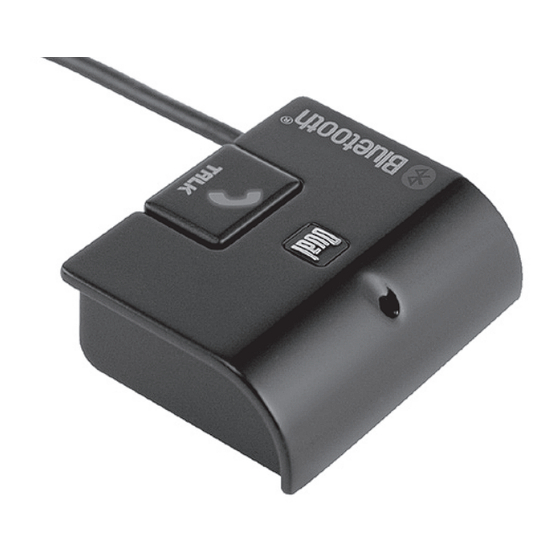

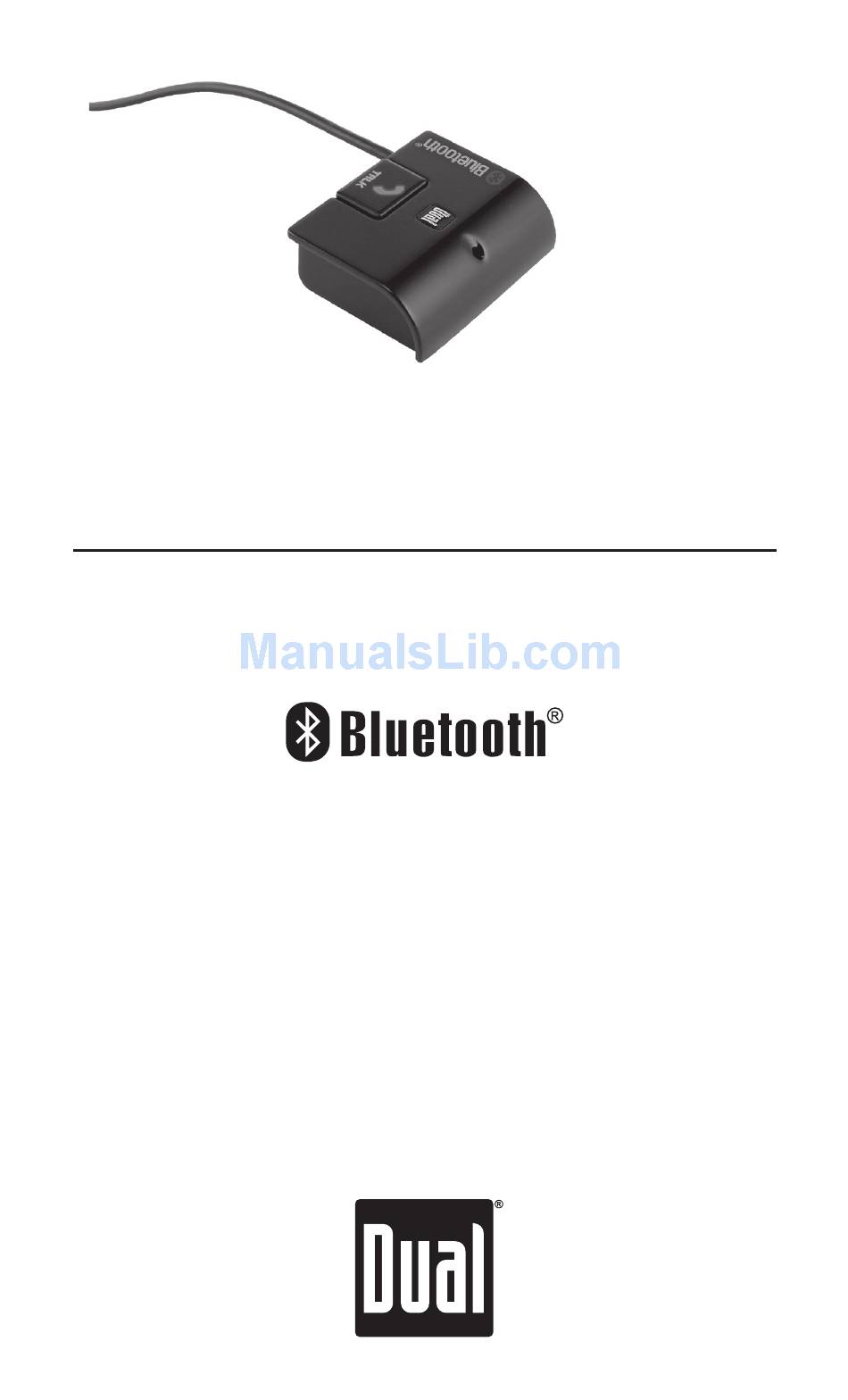

- Page 1 BTM60 INSTALLATION/QUICK START GUIDE Wireless Bluetooth Module...
- Page 2 BTM60 INSTALLATION Typical Installation Installation Quick Reference • Insert the mounting clip into the guide holes, and attach to the BTM60 module as seen in the picture above. • Mount the BTM60 onto the visor using the using the mounting clip, ensuring the microphone is facing the driver. Refer to the picture below for reference. • Carefully route the connection cable down the A-pillar of the vehicle, then to the back of your Dual Bluetooth® ready head unit. • Plug the BTM60 connector into the back of the head unit, making sure to line up the arrows before connecting. Refer to the head unit owner's manual for more information.
- Page 3 BTM60 OPERATION Quick Start Guide Note: You must first pair and connect your Bluetooth® mobile device to the BTM60 to place and receive calls. Refer to your head unit owner's manual for pairing and detailed operation instructions. Receiving a Call • When the BTM60 detects an incoming call, your head unit will automatically switch to Bluetooth mode, and display the caller ID phone number. • To receive an incoming call, press on the BTM60 or your head unit when the phone is ringing. • During a phone call, press to activate the call waiting feature. Press once more to return to the original call. • To reject an incoming call or to end the current call, press and hold MUTE on the head unit for seconds. Placing a Call • To make a call using the head unit, first press or MODE to change to Bluetooth standby mode. • While in Bluetooth standby mode, press to enter the dialing screen. • From the dialing screen, enter the phone number using 0-9, *, # on the front panel of the head unit. • Once the number is entered, press to place the call. Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible or function improperly when used with the BTM60.
- Page 4 BTM60 WARRANTY Limited One Year Warranty This warranty gives you specific legal rights. You may What to do? also have other rights which vary from state to state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. A Dual Electronics Corp. warrants this product to the slight adjustment of any custom controls may save original purchaser to be free from defects in material you a service call. and workmanship for a period of one year from the date of the original purchase. . If you require service during the warranty period, you must carefully pack the product (preferably Dual Electronics Corp. agrees, at our option, during in the original package) and ship it by prepaid the warranty period, to repair any defect in material transportation with a copy of the original receipt or workmanship or to furnish an equal new, renewed from the retailer to an or comparable product (whichever is deemed authorized service center. necessary) in exchange without charges, subject to verification of the defect or malfunction and proof . Please describe your problem in writing and of the date of purchase. Subsequent replacement include your name, a return UPS shipping address products are warranted for the balance of the original (P.O. Box not acceptable), and a warranty period. daytime phone number with your shipment. Who is covered? This warranty is extended to the 4. For more information and for the location of the...
