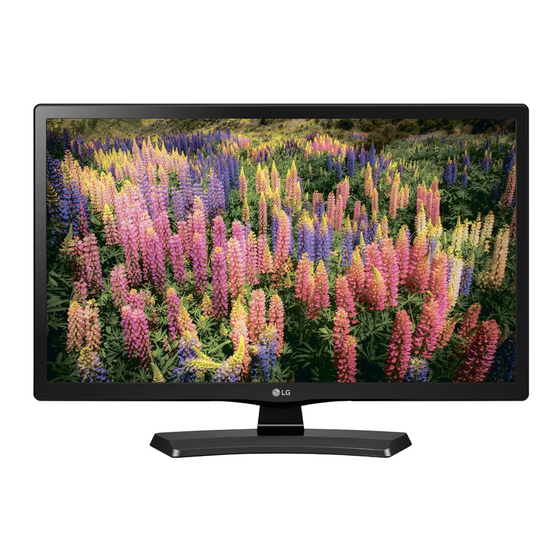

- Page 1 OWNER’S MANUAL Safety and Reference LED TV* *Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your TV and retain it for future reference. MT48S www.lg.com...
-
Page 2: Table Of Contents
Table of contents Remote control Licenses Open source software notice Maintenance information - Cleaning your TV - Screen, frame, cabinet and stand Preparing - Power cord - Preventing “Image burn” or “Burn-in” on your TV screen Separate purchase Troubleshooting Lifting and moving the TV Specifications Setting up the TV Using the joystick button... -
Page 3: Licenses
Licenses Open source software notice information Supported licenses may differ by model. For more information about licenses, visit www.lg.com. To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. -
Page 4: Separate Purchase
When transporting the TV, do not expose the TV to jolts or CAUTION excessive vibration. Do not use any unapproved items to ensure the safety and When transporting the TV, keep the TV upright, never turn the product life span. TV on its side or tilt towards the left or right. -
Page 5: Using The Joystick Button
Using the joystick button Mounting on a table Image shown may differ from your TV. You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right. Lift and tilt the TV into its upright position on a table. Image shown may differ from your TV. -
Page 6: Mounting On A Wall
Mounting on a wall CAUTION Disconnect the power first, and then move or install the TV. For proper ventilation, allow a clearance of 100 mm on each side and Otherwise electric shock may occur. from the wall. Detailed installation instructions are available from your If you install the TV on a ceiling or slanted wall, it may fall and dealer, see the optional Tilt Wall Mounting Bracket Installation and result in severe injury. -
Page 7: Connections (Notifications)
Connections (notifications) Euro scart connection (Depending on model) Connect various external devices to the TV and switch input modes Transmits the video and audio signals from an external device to the to select an external device. For more information about an external TV set. -
Page 8: Remote Control
Remote control The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. -
Page 9: Maintenance
Maintenance Troubleshooting Cleaning your TV Cannot control the TV with the remote control. Check the remote control sensor on the product and try again. Clean your TV regularly to keep the best performance and to extend Check if there is any obstacle between the product and the the product lifespan. -
Page 10: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Dimensions (W x H x D) (mm) Weight (kg) Power consumption Power Models requirement (Outgoing condition) With stand Without stand With stand Without stand 24MT48S 556 x 387.3 x 146.3 556 x 345.2 x 53.1 26 W... - Page 11 24MT48S 28MT48S Manufacturer : Lien Chang Manufacturer : APD Model : LCAP16B-E, LCAP21C Model : DA-48F19 Manufacturer : Honor AC/DC Adapter Manufacturer : Lite-On Model : ADS-45FSN-19 19040GPG, Model : PA-1650-43, PA-1480-11 ADS-45SN-19-3 19040G In : AC 100 – 240 V ~ 50/60 Hz In : AC 100 –...
- Page 12 Component supported mode HDMI (PC) supported mode Horizontal Vertical Horizontal Vertical Resolution Resolution frequency(kHz) frequency(Hz) frequency(kHz) frequency(Hz) 640 x 350 31.46 70.09 15.73 59.94 15.75 60.00 720 x 400 31.46 70.08 720 x 480 31.47 59.94 640 x 480 31.46 59.94 31.50 60.00...
- Page 13 WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using cabinets or stands recommended by the manufacturer of the television set.
- Page 14 Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible place for future reference. The model and serial number of the TV is located on the back and one side of the TV.
