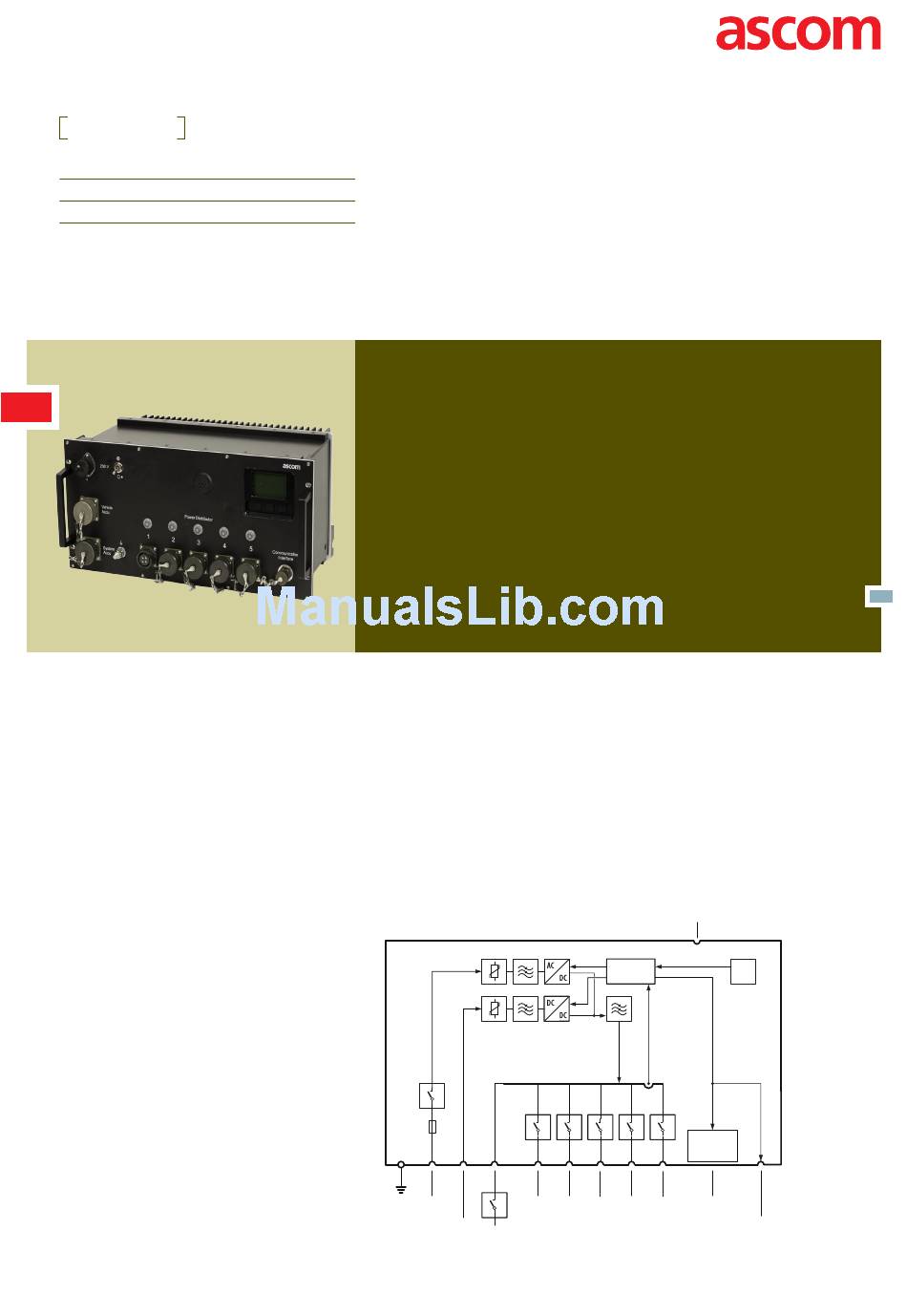

PRODUCT SHEET
Product:
Tactical Power Supply Unit TPS R
Segment :
Defense
Division:
Security Communication
The Ascom Tactical Power Supply Unit TPS R
enables the uninterruptable and emission free
supply of communication equipment in vehicles,
remote stations and containers.
TPS R
enableS mobile communicaTion
The Tactical Power Supply Unit TPS R provides electrical power for
communication equipment with 24VDC nominal voltage. It is optimized for
operation of sensitive radio receivers and gets supplied by different sources
such as AC mains, generator or vehicle power. An additional system battery
covers peak demands and supplies uninterrupted power. Internal control
circuits protect the equipment. An integrated display informs the local user
of relevant data such as source voltage or load current. The Tactical Power
Supply Unit TPS R offers five different protected connections and allows for
parallel operation in order to increase the available power.
The Tactical Power Supply Unit TPS R
230 VAC
24VDC [Power Distributor]
Vehicle Battery
[Vehicle Accu] System Battery
[System Accu]
Block diagram and wiring of the TPS R.
Ventilator
Control
°C
LCD
Display
Communication
Interface
Advertisement
Summary of Contents for ASCOM TPS R
- Page 1 Security Communication TPS R enableS mobile communicaTion The Ascom Tactical Power Supply Unit TPS R The Tactical Power Supply Unit TPS R provides electrical power for enables the uninterruptable and emission free communication equipment with 24VDC nominal voltage. It is optimized for...
- Page 2 PRODUCT SHEET: TPS R conSTRucTion User and connection elements of the Ascom Tactical Power Supply Unit TPS R Position Label Explanation 230 V Connector for 230VAC power input On/Off switch for 230VAC Acoustic alarm Display and three keys for menu operation Power Distributor 1..5...
- Page 3 PRODUCT SHEET: TPS R FuncTionS The Ascom Tactical Power Supply Unit TPS R supports the following modes of operation: Mobile Operation If the vehicle motor is running the loads are fed from the vehicle alternator via the TPS R. At the same time the system battery is charged via the TPS R. If the vehicle motor is not running, the flow of energy is inverted: vehicle battery and system battery supply the TPS R and the connected loads.
- Page 4 Although the information in this publication is represented in good faith and believed to be correct, Ascom makes no representations or warranties as to the completeness or accuracy of the information. In no event will be Ascom responsible for damages of any nature whatsover resulting from the use of or reliance upon the information contained in this document.
