Summary of Contents for Mobatime SAN 40

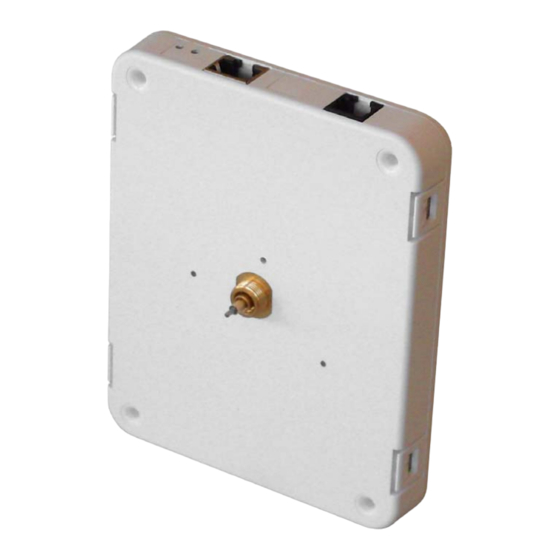

- Page 1 Installation and Operating Manual SEN 40 / SAN 40 NTP Movement Please read these instructions carefully before installation. © MOBATIME BE-800751.06...
- Page 2 Product Certification STANDARDS The NTP movement SEN 40 was developed and produced in accordance with the EU Guidelines: 2006 / 95 / EC 2004 / 108 / EC 96 / 48 / EC References to the Instruction Manual The information in this Instruction Manual can be changed at any time without notice.
-
Page 3: Table Of Contents
5.9.2 Multicast ............................14 5.10 MOBA-NMS (MOBATime Network Management System) ............. 14 6. Update ............................15 6.1 Bootloader update ........................16 7. Connectors ........................... 17 8. Technical specifications ......................17 9. Time Zone Table .......................... 18 ... -
Page 4: Measurements, Definitions
SAN 40 (without second) Art. No.: 204018 This document describes all functions for all models. Descriptions of the second hand are Notice: valid for the model SEN 40 only. 13.5 *for SEN 40 only © MOBATIME 4 / 24... -
Page 5: Function Description
7 rules selectable by means of DIP switches). The rules can be programmed by means of the PC tool MOBA-NMS. Alternatively automatic daylight saving time change according to a daylight saving time rule pro- vided by a MOBATime time zone server in the network. (1 out of 7 rules selectable by means of DIP switches). ... -
Page 6: Mounting Guidelines
5 Metal ring (optional) 10 Metal needles If the hand position is OK, continue with chapter 4 for further configuration. 3.2.3 Maintenance If the hand positions need to be checked, repeat the steps in 3.2.2. © MOBATIME 6 / 24 800751.06... -
Page 7: Configuration
4. Configuration 4.1 Overview The NTP movement SEN 40 has three different operation modes: Unicast The movement works as NTP client and I C master. It has an own IP address. See chapter 4.3.1. Multicast The movement works as NTP client and I C master. -
Page 8: Reset
All configuration settings will be reset to default values. Switches: 1 2 3 4 5 6 7 8 9 10 1112 Default values: Description (20 chars) NTP Movement SEN 40 IP mode IPv4 and IPv6 on DHCP IPv4 IPv4 IP address 1.255.255.253... -
Page 9: Operation Modes
0.0.0.0 / 0::0 SNMP manager address 2 0.0.0.0 / 0::0 SNMP alive trap interval [min] (1…1440) Additionally the SEN 40 can be reset by means of the PC tool MOBA-NMS. 4.3 Operation modes 4.3.1 Unicast The movement has a network connection and is synchronized to UTC (Universal Time Coordi- nated) from a NTP server. -
Page 10: Multicast
The movement has a network connection and is synchronized to UTC (Universal Time Coordi- nated) from a NTP server. It is able to synchronize, power and supervise a cascaded slave movement (SEN 40) on the I C bus. Configuration can completely be done by means of the DIP switches on the movement (mini- mal configuration effort). - Page 11 1 2 3 4 5 6 7 8 9 10 1112 239.192.54.15 239.251.34.15 FF38::EFC0:360F FF38::EFFB:220F 1 2 3 4 5 6 7 8 9 10 1112 1 2 3 4 5 6 7 8 9 10 1112 © MOBATIME 11 / 24 800751.06...
-
Page 12: Slave Movement (Cascading)
I²C: SDA, SCL Supply, GND The SEN 40 automatically works as a slave movement when powered by the cascade. If it is powered by PoE, it works as a master movement. The cascading connection may only be connected resp. disconnected in a currentless state of the master. -
Page 13: Ipv6
This infor- mation is provided by a so called time zone entry (daylight saving time rule). The SEN 40 has a pre-defined table with 7 entries. One of these entries can be selected using the switches 9 to 11 (Note: Switch 4 must be switched off to use the pre-defined table. -
Page 14: Accuracy / Synchronization Loss
5.9.1 Unicast Up to four different NTP server addresses can be provided to the SEN 40 by means of DHCP/DHCPv6 or the PC tool MOBA-NMS. If three NTP requests stay unanswered by the cur- rent NTP server the movement changes to the next server (if available). The duration until a change happens is depending on the configured NTP request time interval (default: 3 x 10 seconds). -
Page 15: Update
Firmware update Bootloader update The newest versions of the firmware and bootloader are available at www.mobatime.com Customer Area Attention: Product Resources in the respective product folder. If the delivered device contains newer software than displayed in this manual, please check the settings. -
Page 16: Bootloader Update
In case of a bootloader alarm, the selection field for the firmware (application) is deac- tivated and only made available after a successful bootloader update: Important: The bootloader file must be a .zip file. © MOBATIME 16 / 24 800751.06... -
Page 17: Connectors
Automatic daylight saving time change according to 1 out of 7 pre- and daylight saving time change defined rules or automatic daylight saving time change according to 1 out of 7 rules provided by a MOBATime time zone server Accuracy Deviation typically < +/-50 ms (synchronized) Synchronization loss Signalization after 24 h by setting the hands to 12:00 position Deviation typically <... -
Page 18: Time Zone Table
Sydney, Canberra, Mel- Sun. Oct. (02.00) Sun. Apr. (03:00) bourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) Majuro (Marshall Is.), , Anadyr © MOBATIME 18 / 24 800751.06... - Page 19 Usually the time zone table is adapted each year. You can download the latest time zone table at our homepage: Note: www.mobatime.com Downloads Moba-Software Time Zone Table. If the delivered device contains a newer version than printed in this manual please check the time zone entries.
-
Page 20: Accessories
250 079 Rubber washer Ø 43 x 12.5 x 2 mm 250 078 Metal ring for dial protection (used for nut 203685 only) Ø 16 x 12.5 x 0.5 22699 Needles for hand mounting 701710 © MOBATIME 20 / 24 800751.06... - Page 21 © MOBATIME 21 / 24 800751.06...
- Page 22 © MOBATIME 22 / 24 800751.06...
- Page 23 © MOBATIME 23 / 24 800751.06...
- Page 24 © MOBATIME BE-800751.06...
