Operator's Manual

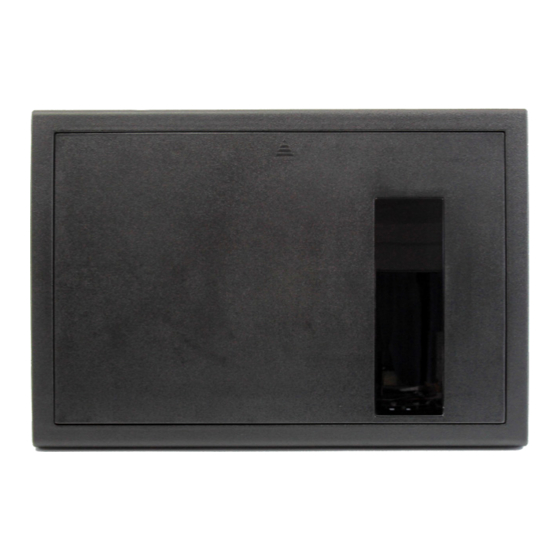

WF-8930/50 Series Distribution Centers
WF-8930/50NP | WF-8930/50NP-30 |
( The Distribution Center model number is located on the front panel label near the AC
breakers)
Distributed in the U.S.A. and Canada by
ARTERRA DISTRIBUTION
(877) 294-8997
Warranty: warranty@wfcoelectronics.com
Fax (574) 294-8698
www.wfcoelectronics.com
Power PROs Technical Support
(877) 294-8997
Advertisement
Table of Contents
Related Manuals for WFCO WF-8930/50 Series
Summarization of Contents
General Information
Reverse Battery Protection
The WF-8930/50 Series Distribution Centers do not have a converter. Reverse Battery Protection is provided by an external unit.
Blown Fuse Indicators on DC Fuse Board
The DC fuse board has individual blown fuse indicators. Each circuit has a Red LED to indicate a blown fuse.
Circuit Protection
DC Fuses (12 Volts)
The DC fuse board is located on the right side of the enclosure. It uses ATC or ATO automotive type fuses.
AC Circuit Breakers (120/240 Volts)
The AC breaker side accepts standard residential breakers. It supports main and branch breakers for 30A or 50A service.
Installation Instructions
Mounting the Enclosure
Guidance on selecting an accessible area for mounting the enclosure and preparing the opening for installation.
Wiring the AC Breakers
Details on routing and connecting AC shore cord and branch circuit wires to the breaker panel.
Wiring the DC Fuse Board
Instructions for connecting DC load wires to the fuse board lugs and securing connections.
Consumer Limited Warranty
Consumer Warranty Claim Procedure
Steps for initiating a warranty claim, including obtaining an RGA number and required documentation.
Warranty Assistance
Information on how to contact for warranty support and assistance.
