TECHNICAL DATA
Interfaces
2 x EUROCOM A (up to 1,024 Mb/s)
1 x E1 (G. 703 up to 2,048 Mb/s)
3 x E1 (G. 704 up to 2,048 Mb/s)
1 x Video / audio (composite video signal)
1 x Fiber optic 1550 nm
1 x Fiber optic 1330 nm
2 x Ethernet 10 Mb/s
2 x Ethernet 100 Mb/s
4 x Telephony analogue
n x Telephony VoIP
1 x Engineering order wire (EOW)
2 x USB 2.0
1 x VGA
Platform
Processor
Operation System
Memory
PBX
Analogue Tel
PBX
Router
Camera
Display
Mil Switch

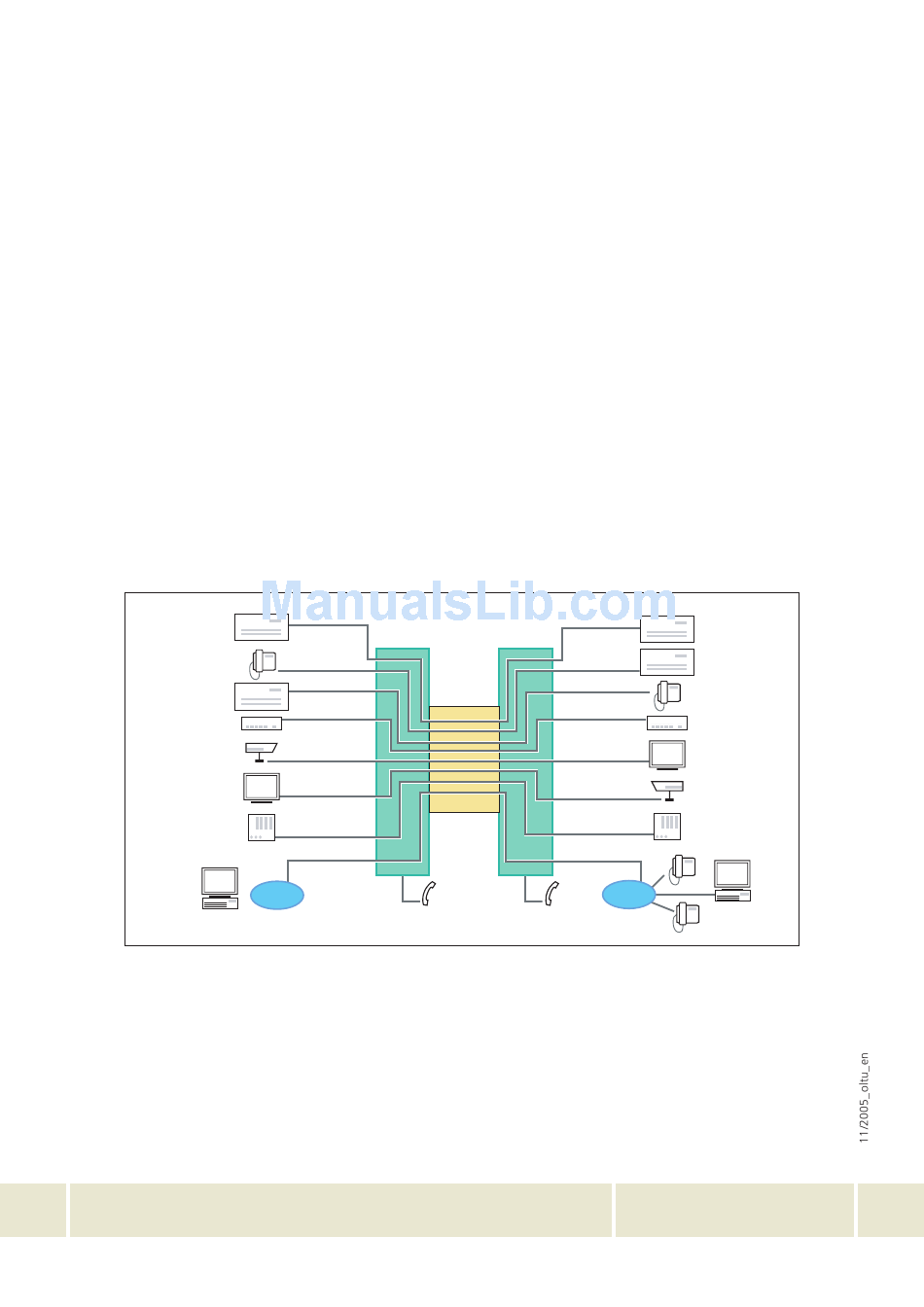

Illustration 1: Overview of a point to point connection with an optical waveguide using two OLTUs.
Use OLTU for more flexibility.
Intel Pentium
Linux
Flash disk
OLTU 05
E1 G.703
Master
E1 G.704
SHDSL
Video/Audio
Video/Audio
EUROCOM
100 Mb/s
LAN
EOW
Direct voice line
Power Supply
Standard 24 VDC +/- 10 %, 4 A
Maximal 24 VDC +/- 10 %, 7 A
Environmental conditions
Storage temperature -40
Operating temperature -30
Air humidity 95 % at 25
Vibration MIL 810 method 514.4-7
Protection level IP 65
Mechanical specifications
Width 534 mm
Height 4 HE
Depth 690 mm
Weight 35 kg
OLTU 05
E1 G.703
Slave
E1 G.704
LWL
SHDSL
Video/Audio
Video/Audio
EUROCOM
100 Mb/s
LAN
EOW
Direct voice line
C to +70 C
o o
C to +55 C
o o
C
o
PBX
PBX
Analogue Tel
Router
Display
Camera
Mil Switch
IP-Telephone
