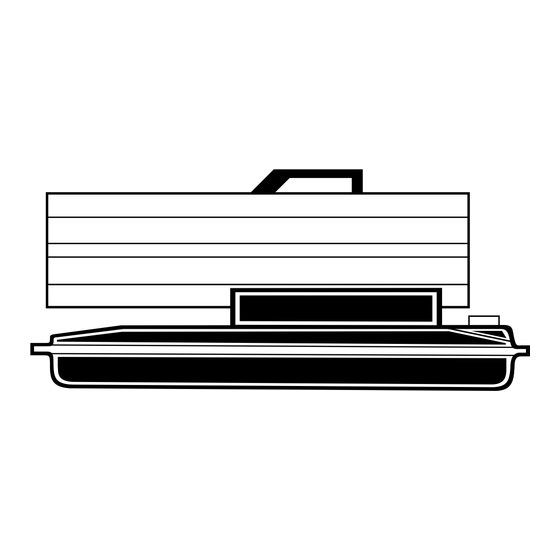

PORTABLE
FORCED
AIR HEATER
OWNER'S MANUAL
Heater Size: 70,000 Btu/Hr
Models: R70D and B70D
H.S.I. Series
IMPORTANT: Read and understand this manual before assembling, starting,
or servicing heater. Improper use of heater can cause serious injury. Keep this
manual for future reference.
®
G 004
ARL LOGO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Desa B70D
Summary of Contents for Desa B70D
- Page 1 FORCED AIR HEATER OWNER’S MANUAL Heater Size: 70,000 Btu/Hr Models: R70D and B70D H.S.I. Series IMPORTANT: Read and understand this manual before assembling, starting, or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
-
Page 2: Safety Information
70,000 Btu/Hr H.S.I. Series PORTABLE FORCED AIR HEATERS SAFETY INFORMATION WARNINGS IMPORTANT: Read this Owner’s Manual carefully and completely before trying to assemble, oper- ate, or service this heater. Im- proper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. -
Page 3: Product Identification
PRODUCT IDENTIFICATION Hot Air Outlet Lower Shell Fuel Tank Side Cover Ignition Control Assembly (assembly on inside of side cover) Power Cord Figure 1 - 70,000 Btu/Hr THEORY OF OPERATION The Fuel System: The air pump forces air through the air line. The air is then pushed through the nozzle. -
Page 4: Operation
70,000 Btu/Hr H.S.I. Series PORTABLE FORCED AIR HEATERS FUELS WARNING: Use only kerosene or No. 1 fuel oil to avoid risk of fire or explosion. Never use gaso- line, naphtha, paint thinners, al- cohol, or other highly flammable fuels. Do not use heavy fuels such as No. 2 fuel oil or No. -
Page 5: Storing, Transporting, Or Shipping
STORING, TRANSPORTING, OR SHIPPING Note: If shipping, transport companies re- quire fuel tanks to be empty. 1. Drain fuel tank. Drain fuel through fuel cap opening. Be sure all fuel is re- moved. If any debris is noted in old fuel, add 1 or 2 quarts of clean kerosene to tank, stir, and drain again. -
Page 6: Troubleshooting
70,000 Btu/Hr H.S.I. Series PORTABLE FORCED AIR HEATERS TROUBLESHOOTING Note: For additional help, visit DESA International’s technical service web site at www.desatech.com. FAULT CONDITION Motor does not start five seconds after heater is plugged in Motor starts and runs but heater does not... -
Page 7: Service Procedures
SERVICE PROCEDURES WARNING: Never service heater while it is plugged in, op- erating, or hot. Severe burns and electrical shock can occur. UPPER SHELL REMOVAL 1. Remove screws along each side of heater using 5/16" nut-driver. These screws attach upper and lower shells together. -
Page 8: Fuel Filter
70,000 Btu/Hr H.S.I. Series PORTABLE FORCED AIR HEATERS SERVICE PROCEDURES Continued WARNING: Never service heater while it is plugged in, op- erating, or hot. Severe burns and electrical shock can occur. FUEL FILTER 1. Remove 4 side cover screws using 5/16"... - Page 9 SERVICE PROCEDURES Continued NOZZLE ASSEMBLY 1. Remove upper shell (see page 7). 2. Remove fan (see page 7). 3. Remove fuel and air line hoses from nozzle assembly (see Figure 12). 4. Turn nozzle assembly 1/4 turn to left and pull toward motor to remove (see Figure 13).
-
Page 10: Replacement Parts
• model number of your heater • the replacement part number TECHNICAL SERVICE You may have further questions about op- eration or troubleshooting. If so, contact DESA International’s Technical Service Dept. at 1-800-323-5190. You can also visit DESA International’s technical services site www.desatech.com. 103685... -
Page 11: Specifications
Purchase accessories and parts from your nearest dealer or service center. If they can not supply these accessories or parts, either contact your nearest Parts Central or DESA International for referral information. Parts Centrals are listed in the Authorized Service Center booklet supplied with heater. -
Page 12: Illustrated Parts Breakdown
70,000 Btu/Hr H.S.I. Series PORTABLE FORCED AIR HEATERS ILLUSTRATED PARTS BREAKDOWN R70D B70D 12-1 12-2 12-18 12-17 12-16 Motor and Pump Assembly 12-3 12-4 12-5 12-6 12-7 12-15 12-14 12-13 12-12 12-8 12-9 12-10 12-11 103685... -
Page 13: Parts List
PARTS LIST R70D B70D PART NUMBER DESCRIPTION M51104-01 Handle 098511-36 Upper Shell (R70D) 098511-54 Upper Shell (B70D) M11084-29 Screw, #10-16 x 3/4" 100647-01 Screw, #10-16 x 1/2" 098512-51 Combustion Chamber M10908-2 Screw, #6-32 x 3/8" 103154-03 Photocell Bracket M16656-23 Photocell Assembly... -
Page 14: Warranty And Repair Service
Should your heater require service, return it to your nearest authorized service center. Proof of purchase must be presented with the heater. The heater will be inspected. A defect may be caused by faulty materials or workmanship. If so, DESA International will repair or replace the heater without charge.
