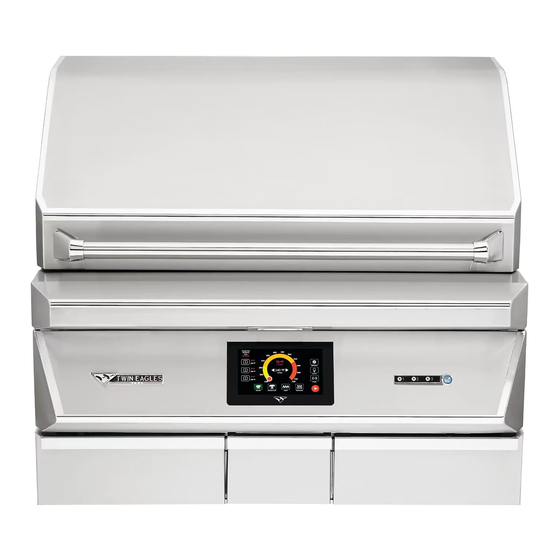

WOOD FIRED PELLET GRILL & SMOKER
INSTALLATION, USE & CARE MANUAL
Please read this entire manual before installation and use of this pellet fuel-burning appliance.
Failure to follow these instructions could result in property damage, bodily injury or even death.
Contact your local building or fire officials about restrictions and installation inspection
requirements in your area. Save these instructions.
P/N: 17543E 08/19
INNOVATION AND INSPIRATION
ON FIRE™
MODELS:
TEPG36G
TEPG36R
Advertisement
Table of Contents
Related Manuals for Twin Eagles TEPG36G
Summary of Contents for Twin Eagles TEPG36G
- Page 1 Failure to follow these instructions could result in property damage, bodily injury or even death. MODELS: Contact your local building or fire officials about restrictions and installation inspection requirements in your area. Save these instructions. TEPG36G TEPG36R P/N: 17543E 08/19...
- Page 2 We recommend reading this manual before your first use to ensure safety, proper care and operation. At Twin Eagles, we want you to enjoy grilling and spending time together as much as we do – making memories that linger long after the grill cools down.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Please read this entire manual before installation and use of this pellet fuel-burning appliance. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact your local building or fire officials about restrictions and installation inspection requirements in your area.
- Page 4 ◦ Do not use charcoal in the burn pot, charcoal • CARBON MONOXIDE WARNING: is to be used with the Twin Eagles Charcoal Follow these guidelines to prevent this colorless, Tray accessory only. odorless gas from poisoning you, your family or ◦...
- Page 5 TWIN EAGLES | PELLET GRILL FEATURES: 1. HOOD 2. FOOD HOOKS 3. COOKING RACKS 4. ROTISSERIE SPROCKET 5. COOKING GRATES 6. PELLET HOPPER COVER 7. ON/OFF SWITCH 8. ASH DRAWERS 9. PELLET HOPPER 10. CONTROL PANEL 11. PROBE STATION 10 11...
-
Page 6: Table Of Contents
La loi de la Californie exige aux fabricants d’informer leurs clients aux risques d’exposition potentielle a de telles substances. Pour plus d’in- formation, visiter le site www.P65Warnings.ca.gov vi | Twin Eagles Technical Support (562) 263-3600... -
Page 7: Getting Started
GETTING STARTED 1. Remove all packaging materials, labels and protective film. DO NOT LEAVE UNIT IN THE SUN WITH PRO- TECTIVE PLASTIC FILM ON FOR AN EXTENDED PERIOD OF TIME AS IT WILL BECOME DIFFICULT TO RE- MOVE. 2. Check to ensure all grill accessories listed below are included. 3. -
Page 8: Locating The Grill
Le gril peut être installé directement à proximité d’une construction incombustible en-dessous de la surface de cuisson. 2 | Twin Eagles Technical Support (562) 263-3600... -
Page 9: Cut-Out Dimensions
CUT-OUT DIMENSIONS NOTE: THIS IS FOR NON-COMBUSTIBLE ENCLOSURES ONLY. FOR COMBUSTIBLE ENCLOSURES REFER TO THE NEXT PAGE. * ADD 3.25 TO ALLOW TEPG36R FOR HOOD OPENING (TEPG36G) 24 25 DETAIL 24.25 34.25 �NFWJ RI �PNW RU �NFWJ RI WHTNO36 COUNTERTOP 16.85... -
Page 10: Insulation Jacket
Use only Twin Eagles Pellet Grill and Smoker insulating jacket (TEPIJ36). To prevent damage to the power cord use the hole provided in the front right of the Insulating Jacket to thread the power cord through. -
Page 11: Electrical Requirements
9. Use only extension cords with three prong grounding plugs, rated for the power of the equipment, and approved for outdoor use with a W-A marking. Storage: During shipping the power plug for the Twin Eagles Pellet Grill and Smoker is located in the front right ash drawer. www.twineaglesgrills.com | 5... -
Page 12: Windy Conditions
Damaged components such as wiring, heat probes, etc., and the discoloration of the stainless steel by using the grill in windy conditions is not covered under the product warranty. 6 | Twin Eagles Technical Support (562) 263-3600... -
Page 13: Pellet Smoker Mode Overview
PELLET GRILL OVERVIEW START-UP Your grill utilizes many advances in technology to bring greater control to your finger tips. Making use of these advancements will help you perfect your techniques and get the most flavor and best results every time. •... - Page 14 To save the update to the grill, simply turn the grill off and on again. The grill is now updated and ready to use. If WiFi is not readily available, email SERVICE@TwinEaglesGrills.com and request instructions on how to update the software via the unit’s USB port. SETTINGS MENU 8 | Twin Eagles Technical Support (562) 263-3600...
- Page 15 Can be turned on/off as needed. ADDITIONAL FEATURES The Twin Eagles Wood Fired Pellet Grill and Smoker comes equipped with two halogen lights and a Rotisserie. • Halogen Lights - To turn the lights ON/OFF simply press the lights button.
-
Page 16: Using Your Pellet Grill & Smoker
If using the rotisserie function of the grill, the probe must be removed after every temperature taken. 8. Once your food has finished cooking, tap the red “STOP” button to start the cooldown cycle. PROBE BUTTON AFTER PROBE BUTTON FOOD SELECTED PRESET FOOD MENU 10 | Twin Eagles Technical Support (562) 263-3600... - Page 17 USING YOUR PELLET GRILL & SMOKER - cont. USING THE ROTISSERIE: 1. Insert food on rod and secure with meat forks. If multiple pieces of food are to be cooked at the same time, make sure the food is evenly balanced to ensure the food is cooked evenly.
- Page 18 The fan is used to provide more air to the charcoal after it is already going. Providing more air will produce more heat, so FAN HIGH will make the coals produce more heat than FAN LOW. 12 | Twin Eagles Technical Support (562) 263-3600...
-
Page 19: Using Your Pellet Grill & Smoker
USING YOUR PELLET GRILL & SMOKER - cont. COOLDOWN MODE You are finished cooking your food and now it is time to shut down your Wood Fired Pellet Grill and Smoker. To shut down your grill, first press the red stop button. This will shut the auger off and the fan speed will go up to high. -
Page 20: Recommended Pellets
5-gallon buckets obtainable from your local hardware store make great waterproof containers, and lids can easily be fitted to the top to completely seal the bucket. Ensure that any location to be used for pellet storage is dry and away from sources of heat. 14 | Twin Eagles Technical Support (562) 263-3600... -
Page 21: Pellet Smoking Guidelines
(temperatures in excess of 90°F), which could prevent your grill from maintaining temperatures close to 180°F. The table below shows general guidelines to follow when learning to use your new Twin Eagles Pellet Grill and Smoker. We recommend experimenting with times and temperatures to get the flavor you desire. To speed up the process cook on a higher temperature but be warned that this could result in a less tender prod- uct. -
Page 22: Pellet Grilling Times And Temps
PELLET GRILLING TIMES AND TEMPS At Twin Eagles, great grilling comes from knowledge of the right temperatures to use and how long to smoke or grill your meat. The following suggestions are to help you find the right starting point to begin your perfect grilling experience. - Page 23 TIMES AND TEMPS - cont. CONTROL APPROXIMATE INTERNAL TEMP = ITEM SIZE SET POINT GRILLING TIME °F VENISON 4 TO 5 MINS/SIDE MEDIUM RARE 145 STEAKS 3/4 in THICK 450°-700° 6 TO 7 MINS/SIDE MEDIUM 160 CHICKEN WHOLE (INDIRECT HEAT) 3 TO 4 lbs.
-
Page 24: Cleaning And Maintenance
Do not allow food particles or grease to be left inside your Twin Eagles products. These can attract ro- dents, which are unsanitary and are likely to cause physical damage by chewing on the wiring, which can cause permanent damage to the electrical components. - Page 25 CLEANING AND MAINTENANCE - cont. RECOMMENDED METHODS TO CLEAN YOUR PELLET GRILL Regular use and time will cause your grill to get dirty, below are a few recommended cleaning materials and methods to help keep your Pellet Smoker and Grill looking its best. RECOMMENDED PRODUCTS: 1.
-
Page 26: Exploded View
EXPLODED VIEW 29 30 20 | Twin Eagles Technical Support (562) 263-3600... - Page 27 EXPLODED VIEW - cont. 97 98 www.twineaglesgrills.com | 21...
-
Page 28: Replacement Parts List
S27286 LARGE COOKING RACK BRACKET S26349 BOX, MOTOR S27318 FIREPOT S16366Y ROTIS MOTOR ASSEMBLY S16040 OVEN TEMPERATURE PROBE S26351 COVER, MOTOR BOX S16240-CY HALOGEN LIGHTS S27317 CHAIN GUARD S27278 PELLET FEED SHIELD 22 | Twin Eagles Technical Support (562) 263-3600... -
Page 29: Replacement Parts List
REPLACEMENT PARTS LIST- cont. ITEM TE PART TEPG TEPG DESCRIPTION S27358 RIGHT HEAT SHIELD (TEPG36R) S27261-36Y DRAWER BASE ASSEMBLY S16433 POWER CORD HARNESS S16112 STRAIN RELIEF S27244-L FIREBOX FRONT BAFFLE, LH S27244-R FIREBOX FRONT BAFFLE, RH S27245 BRACKET MOUNT COVER... -
Page 30: Wiring Diagram
WIRING DIAGRAM 24 | Twin Eagles Technical Support (562) 263-3600... -
Page 31: Warranty
Twin Eagles will repair or replace parts found to be defective at no cost to the original purchaser. Warranty service must be performed by a Twin Eagles authorized representative during normal business hours. - Page 32 PAGE INTENTIONALLY LEFT BLANK 26 | Twin Eagles Technical Support (562) 263-3600...
-
Page 33: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your Twin Eagles dealer or call Twin Eagles direct at (562) 263-3600 or (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13259 East 166th Street Cerritos, CA 90703 Visit us at www.twineaglesgrills.com... - Page 34 CUT HERE PLACE POSTAGE HERE CUSTOMER SERVICE ATTN: Warranty Dept. 13259 East 166th St Cerritos, CA 90703 Direct line to Service: (562) 263-3600 Fax No. (562) 802-3391...
