Summary of Contents for Blowair S2

  • Page 1 Technical documentation:...

  • Page 2: Table Of Contents

    Table of contents: 1. Introduction 1.1 Precautions 1.2 Transport 1.3 Package content 1.4 Use and principle of operation 2. Schematic diagram 2.1 Construction 2.2 Dimensions 2.3 Technical data 3. Assembly 4. Installation instructions 5. Precautions & warnings 6. Connection schemes 7.

  • Page 3: Introduction

    Introduction. Thank you very much for purchasing our device. We would like to congratulate you on good choice. Precautions. The buyer and the user of the device should read carefully the following instructions and proceed to the content recommendations. Proceeding due to the following instruction guarantees the correct usage and safety.

  • Page 4: Package Content

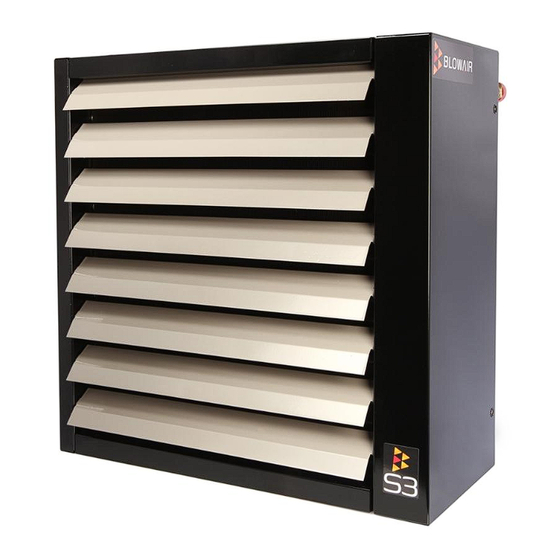

    Heater Instruction and warranty card 1.4. Use and principle of operation. Devices BLOWAIR S1, S2, S3 and S4 are used to heat rooms such as : production halls, accommodation, commercial, services, garages, workshops, greenhouses, tents, shops, malls, shopping malls. Air water heater has to be connected to central heating system.

  • Page 5: Dimensions

    2.2 Dimensions. Drawing 1. Dimensions. Type [mm] [mm] [mm] [mm] [mm]...

  • Page 6: Technical Data

    1400 1380 Motor IP. „ Ferrules diameter Temperature rise according to parameters: water 90/70°C and inlet air temperature 0°C. Technical data of Blowair S1: Parameters Inlet and outlet water temperature [°C] 90/70 Outlet water temperature [°C] Heating capacity [kW] 22,2...
  • Page 7 Technical data of Blowair S2: Parameters Inlet and outlet water temperature [°C] 90/70 Outlet water temperature [°C] Heating capacity [kW] 38,8 34,0 29,4 24,9 20,7 Outlet water temperature [°C] 13,7 20,6 27,5 34,2 40,8 Water flow [m³/h] 1,71 1,29 0,91...

  • Page 8: Assembly

    Pressure drop in the heat exchanger [kP] Assemblyy. All devices Blowair S1, S2, S3 and S4 can be assembled on the wall or ceiling via holder or rotational holder , which are additional elements. The drawings below show the ways of assembly. In the bigger accommodation it is recommended to assemble more than one device.
  • Page 9 Blowair devices can be assembled on the wall or ceiling via holder or rotational holder , which are additional elements . It is possible to assemble the device in parallel on the angle...

  • Page 10: Installation Instructions

    The installation should be made by the qualified stuff, who possess the needed rights to install electrical devices, as instructed in the following documentation. To install the air waiter heater Blowair S1, S2, S3, S4 use the duct size 2 x 2,5mm² . Precautions & warnings.
  • Page 11 Blowair automatics. To make easier the usage of the Blowair devices we also offer the additional automatics: 5-stage speed controller Blowair- is used to control the speed in single-phase fans. It consists of 5 controls 0 - 70 - 85 - 105 - 145 - 230V, power supply voltage-230VAC / 50-60Hz, allowable current output: 1,2A;...

  • Page 12: Connection Schemes

    (3) A. It is possible to use one programmable temperature controller to maximum 5 Blowair devices. 7. Connection schemes.

  • Page 13: Terms Of Warranty

    Terms of warranty. WTS Wysocki Tomasz 3 Montażowa Street , 43-300 Bielsko- Biała, Poland, is the producer of the Blowair brand. The warranty concerns the following devices and it is valid for 2 years: - air heater S1, - air heater S2, - air heater S3, - air heater S4.

  • Page 14: Warranty Card

    8.1. Warranty card. WTS Wysocki Tomasz 3 Montażowa Street 43-300 Bielsko- Biała Poland Stamp and signature of the installation company: Factory number of the device: Address and place of assembly. City: Postal code: Street: Number: Place:...

  • Page 15: Warranty Form

    8.2. Warranty form. The company reporting the complaint: The company installing the device. Factory number of the device. Date of assembly: Date and circumstances of noticing the defect: Date of declaration the complaint: Address and place of assembly the device: Contact Name and Surname: Telephone number/ e-mail address: Description of the defect:...

  • Page 16: Service Form

    Service card. Date of Date of Description of the Service stamp declaration repair repair complaint...
  • Page 17 WTS Wysocki Tomasz 3 Montażowa Street, 43-300 Bielsko-Biała Poland Mobile +48 791 40 40 40; +48 792 40 40 40; +48 793 40 40 40; Fax. +48 33 444 61 04...
